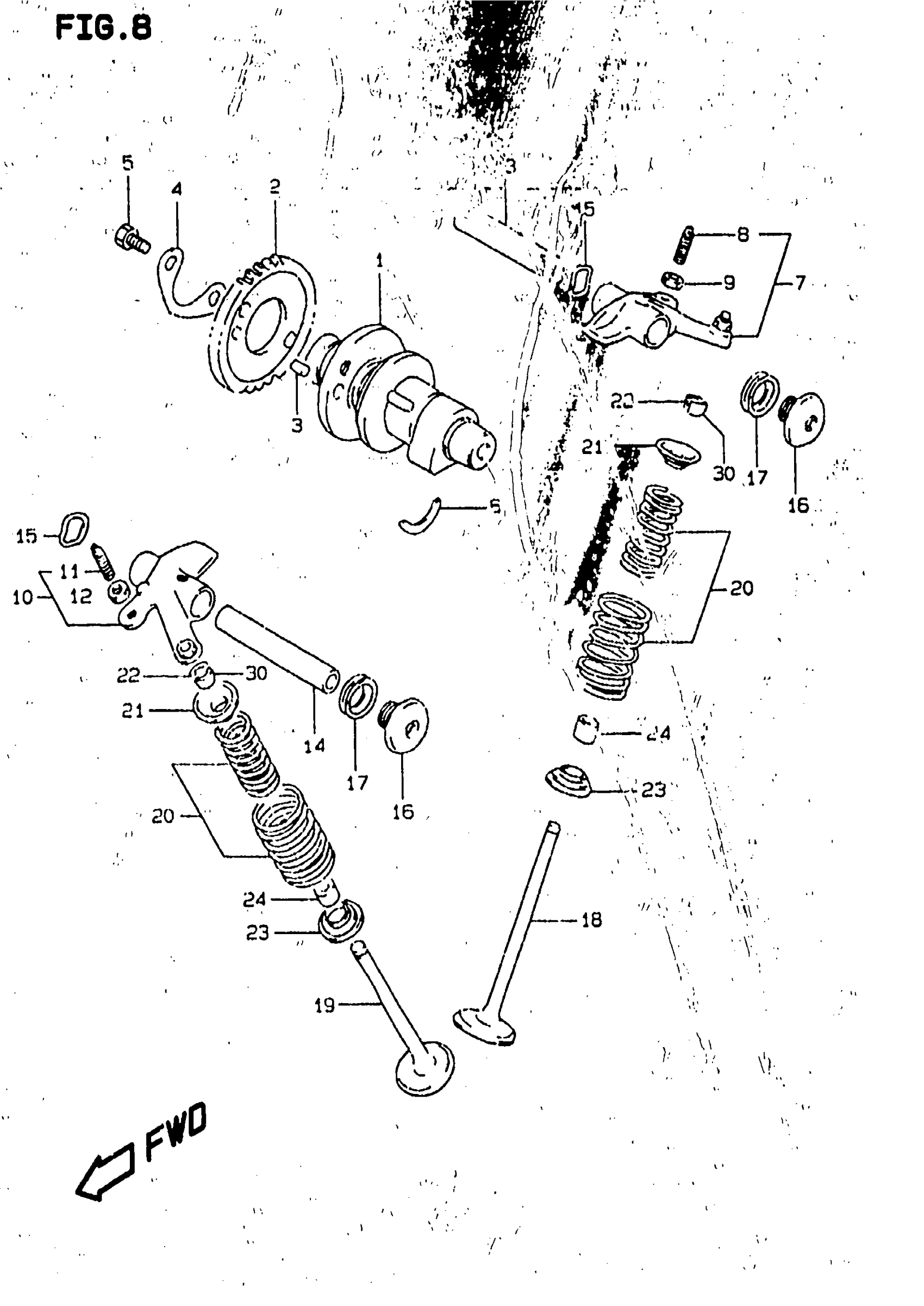

Suzuki DR350SE (1999) CAM SHAFT-VALVE Diagram

#

Description
Price

1

SHAFT COMP,CAM | F.NO. V2100852 This part replaces 12710-14D60.

12710-14D70

$406.35

1

SHAFT COMP,CAM | F.NO.V2100853~ This part replaces 12710-14D61.

12710-14D70

$406.35

2

SPROCKET (NT:34)

12741-14D50

$49.22

3

PIN

09261-05005

$1.49

4

WASHER,SPROCKET

12747-44B00

$2.72

5

BOLT (6X10.5)

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-14D50.

12840-15G00

$90.28

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-14D50

$98.00

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$30.93

14

SHAFT, ROCKER ARM EX

12871-14D50

$28.27

15

WASHER

09164-12018

$1.49

16

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

17

GASKET

09168-14002

$2.26

18

VALVE,INTAKE This part replaces 12911-14D01.

12911-14D10

$38.13

19

VALVE,EXHAUST

12912-14D01

$60.40

20

SPRING SET, VALVE

12920-06B00

$13.81

21

RETAINER, SPRING

12931-27A01

$8.42

22

COTTER, VALVE

12932-27A00

$2.26

23

SEAT,VALVE SPRING

12933-81400

$5.17

24

OIL SEAL (5X10X8.7)

09289-05011

$6.32
