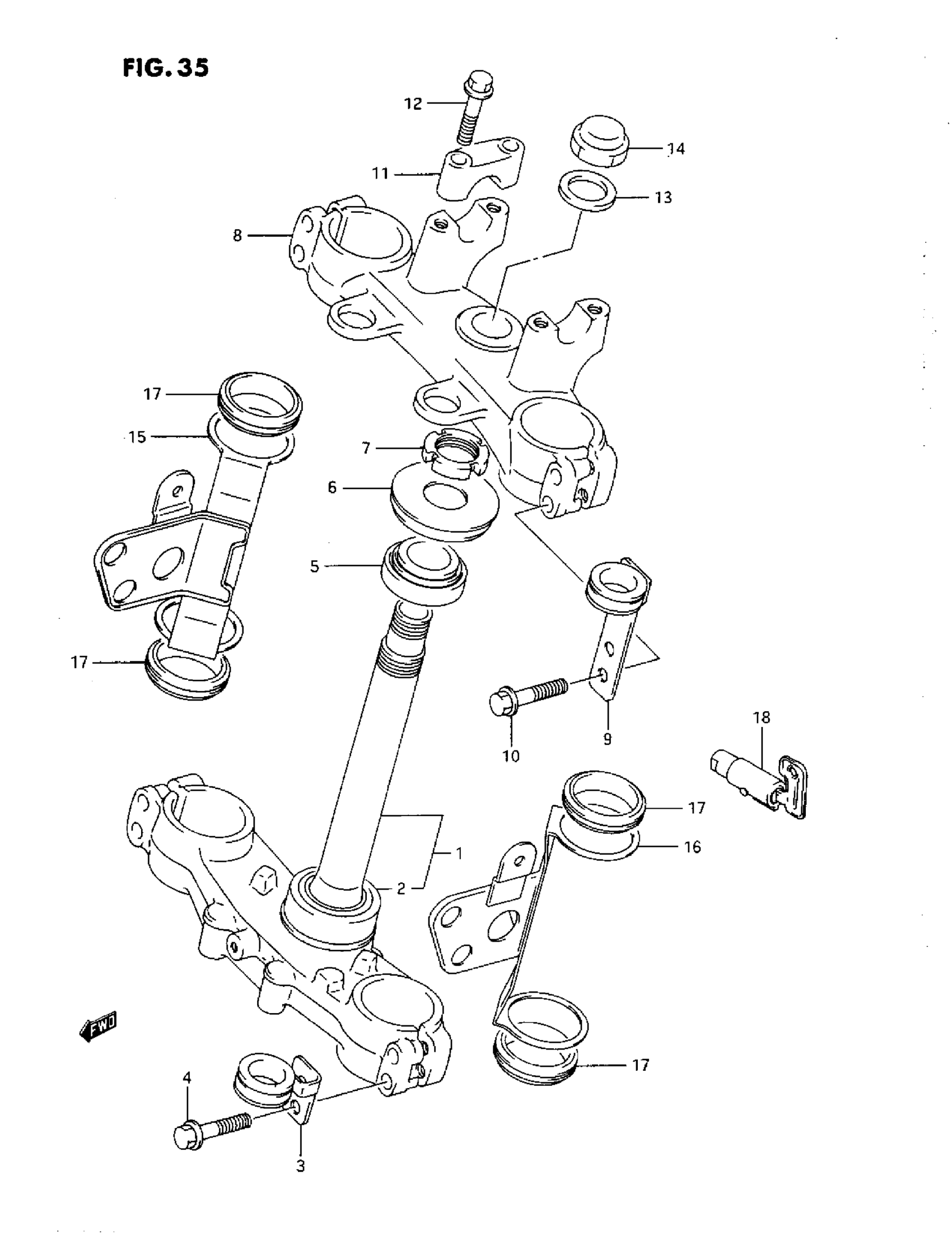

Suzuki DR350S (1993) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-14D10

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

GUIDE, CABLE LH LOWER

51453-03D10

Unavailable

4

BOLT This part replaces 01517-08407.

01550-08407

$3.42

5

BEARING

09265-25008

Unavailable

6

DUST SEAL

51643-40200

$7.96

7

NUT, STEM

51631-40200

Unavailable

8

HEAD, STEERING STEM

51311-14D10

Unavailable

9

GUIDE, CABLE LH UPPER

51288-14D10

Unavailable

10

BOLT This part replaces 01517-08405.

01550-08407

$3.42

11

HOLDER, HANDLE

56211-27200-291

$17.90

12

BOLT (8X35) This part replaces 01517-08355.

01550-0835A

$3.04

13

WASHER

51354-14D00

$12.08

14

NUT, STEM | MODEL L/M/N This part replaces 51353-03D00.

51353-24B00

$30.67

14

NUT, STEM | MODEL P This part replaces 51353-38A01.

51353-24B00

$30.67

14

NUT | MODEL R

51353-24B00

$30.67

15

BRACKET, HOUSING RH

51530-15D00

Unavailable

16

BRACKET, HOUSING LH

51540-15D00

Unavailable

17

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-15D00.

51553-15D01

$5.00

18

LOCK ASSY,STEER | PURCHASE LOCALLY This part replaces 51900-30901.

51900-309V0

$87.06
