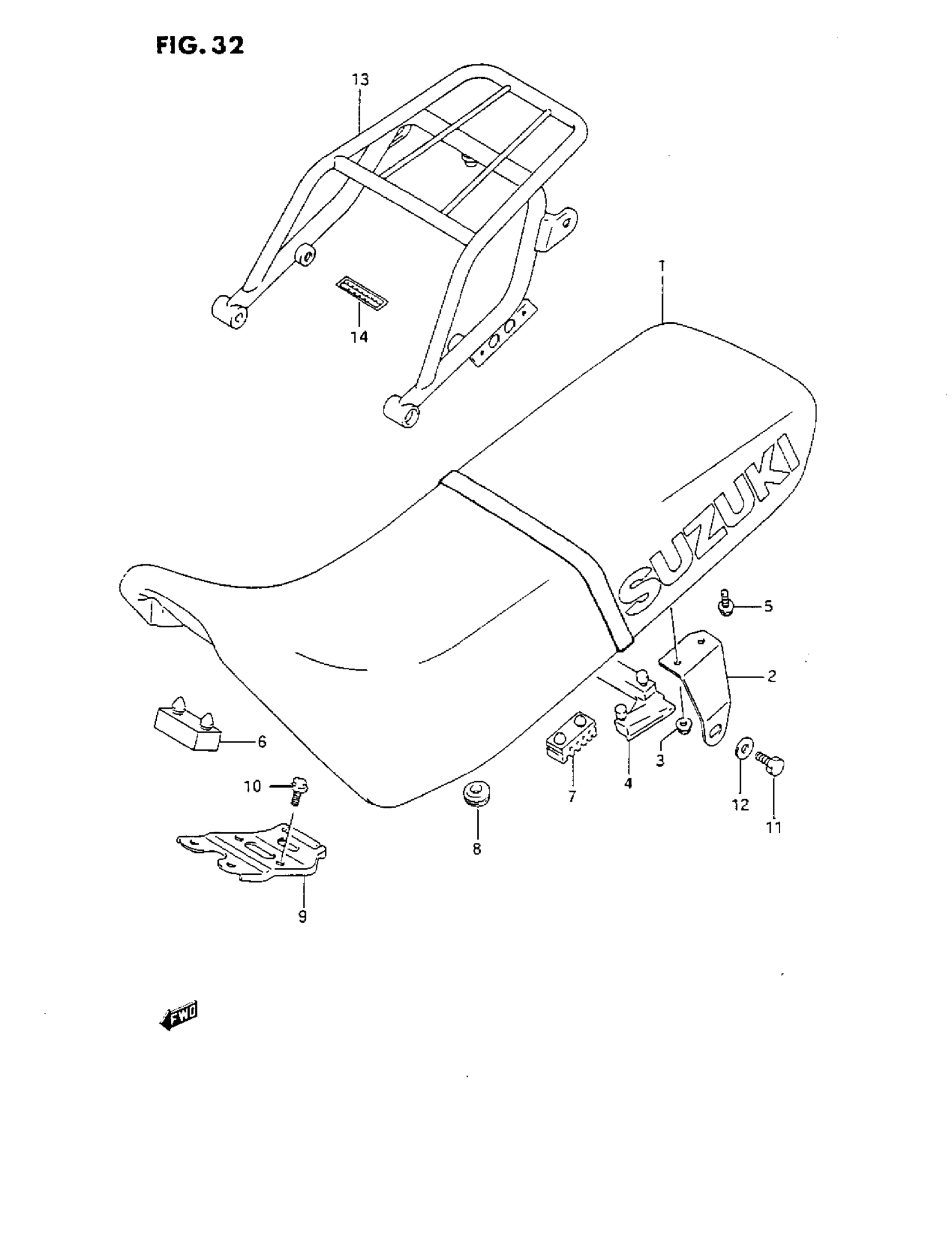

Suzuki DR350S (1993) SEAT Diagram

#

Description
Price

1

SEAT ASSY

45100-15D10-9DD

Unavailable

2

BRACKET, RH

45116-14D00

Unavailable

2

BRACKET, LH

45117-14D00

Unavailable

3

NUT This part replaces 08316-16066.

08316-1006B

$2.50

4

CUSHION, BRACKET

45255-14D00

Unavailable

5

BOLT | MODEL L/M/N/P This part replaces 01517-06108.

01550-06107

$2.80

5

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$1.97

6

CUSHION, FRONT

09321-08006

$2.90

7

CUSHION, CENTER

45149-31300

$3.56

8

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

9

PLATE, SEAT SUPPORT FRONT | MODEL L/M This part replaces 45120-15D00.

45120-15D01

Unavailable

9

PLATE, SEAT SUPPORT FRONT | MODEL N/P/R

45120-15D01

Unavailable

10

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

11

BOLT | MODEL L/M/N/P This part replaces 01107-08125.

01500-0812A

$2.28

11

BOLT (8X12) | MODEL R This part replaces 01550-08123.

01550-0812A

$2.32

12

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

13

CARRIER, SPORT (BLUE) | OPT, MODEL L This part replaces 46310-15D11-0NF.

46310-15D30-0NF

Unavailable

13

CARRIER, SPORT (BLUE) | OPT, MODEL M/N/P This part replaces 46310-15D13-0NF.

46310-15D30-0NF

Unavailable

13

CARRIER, SPORT (WHITE) | OPT, MODEL R

46310-15D30-1TS

Unavailable

14

LABEL | OPT

68391-14D00

Unavailable
