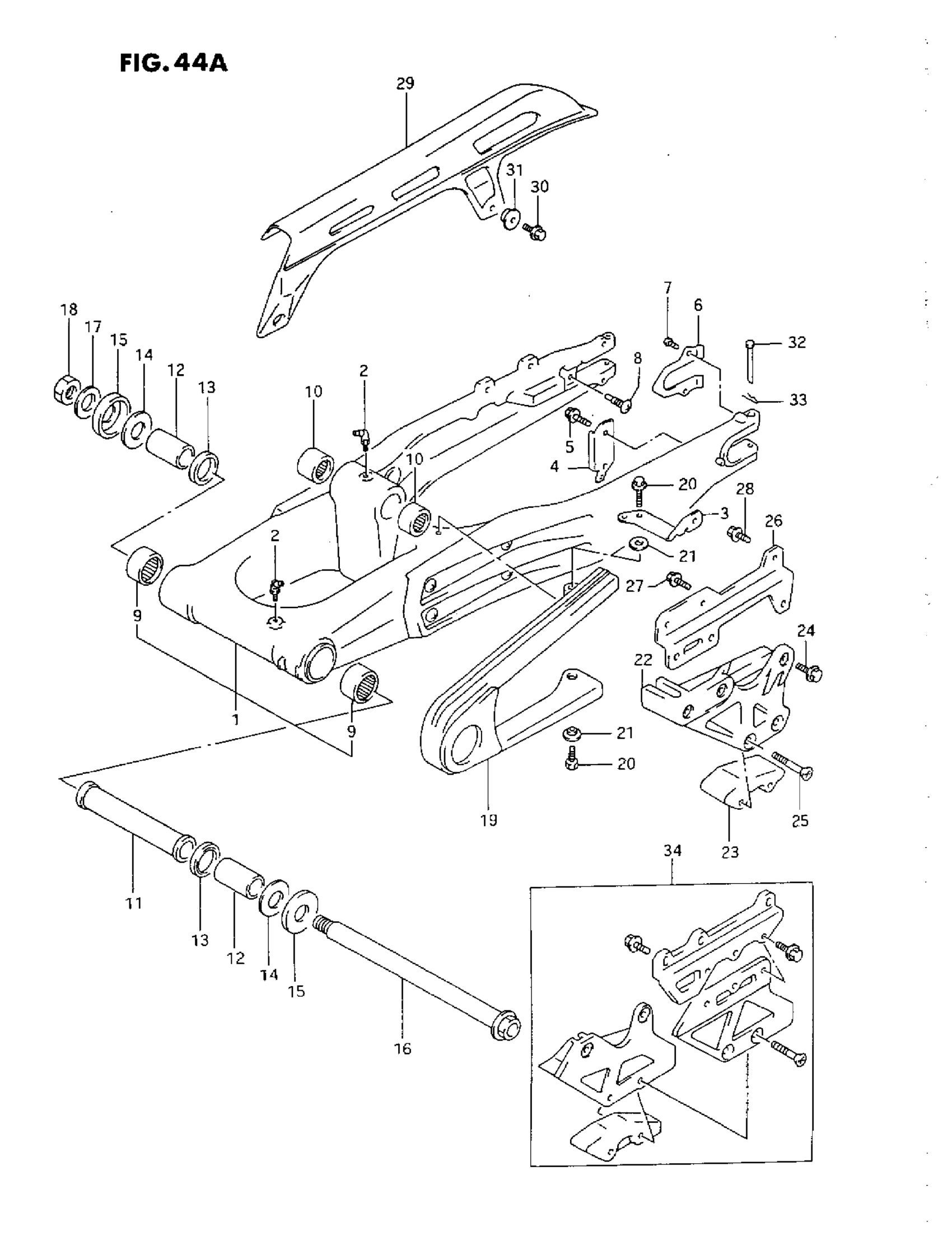

Suzuki DR350S (1993) REAR SWINGING ARM (R) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR This part replaces 61000-15D50.

61000-14D50

Unavailable

2

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

3

PLATE, CHAIN CASE, FRONT

61140-15D10

Unavailable

4

PLATE, CHAIN CASE, REAR

61144-15D10

Unavailable

5

BOLT

09103-05013

Unavailable

6

PLATE, REAR

61128-14D00

Unavailable

7

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.15

8

SCREW (LOX2L)

09139-10001

Unavailable

9

BEARING (22X29X30)

09263-22017

$22.58

10

BEARING (22X27X23.5)

09263-20071

$25.92

11

SPACER, (17.3x24x126)

09180-17097

Unavailable

12

SPACER, PIVOT, BEARING

61251-14D00

$27.97

13

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

14

THRUST WASHER

08211-17341

$2.50

15

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

16

SHAFT, PIVOT

61211-14D00

Unavailable

17

WASHER This part replaces 08322-01163.

08322-0116A

$1.84

18

NUT

09159-16007

$12.61

19

BUFFER,CHAIN TO This part replaces 61273-14D00.

61273-14D01

$41.37

20

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

21

WASHER

09169-06057

$3.18

22

GUIDE CHAIN

61340-15E00

$70.28

23

DEFENSE , CHAIN GUIDE

61348-15E00

$26.93

24

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

25

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

$2.75

26

BRACKET, CHAIN GUIDE

61154-14D00

$63.80

27

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

28

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

29

CASE, CHAIN

61310-14A00

Unavailable

30

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

31

WASHER

09169-06026

$2.20

32

PIN

09200-06065

Unavailable

33

SNAP PIN

09385-06012

$1.89

34

GUIDE SET,CHAIN | OPT, OFF ROAD USE ONLY This part replaces 61300-14810.

61300-14811

Unavailable
