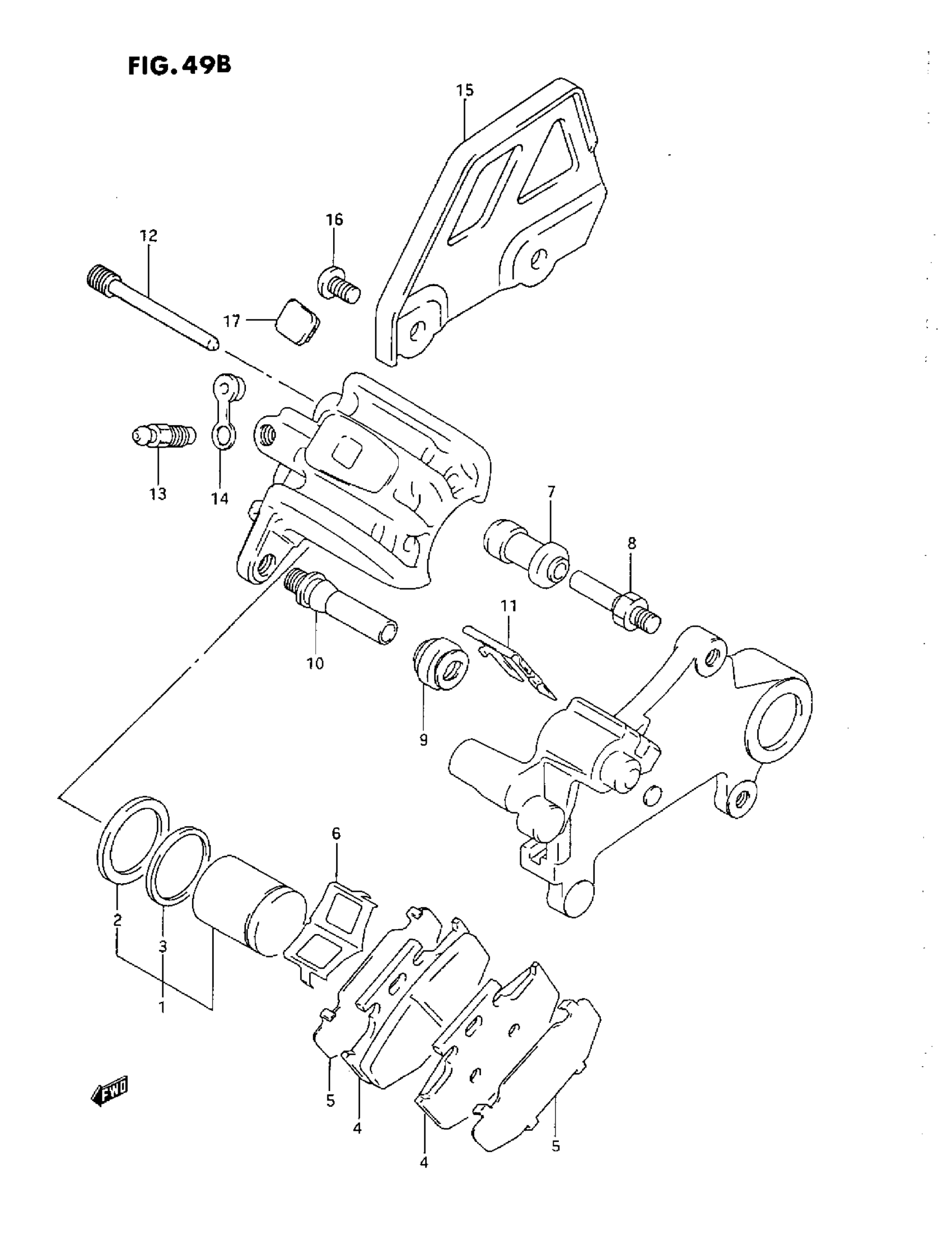

Suzuki DR350S (1993) REAR CALIPER (R) Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-15D20

Unavailable

1

PISTON SET

69100-03810

$50.52

2

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.04

3

SEAL, DUST

59108-17C00

Unavailable

4

PAD SET This part replaces 69140-15D00.

69100-15810

$72.28

5

SHIM

69132-28C00

$10.68

6

SPRING

59315-27C10

$13.20

7

BOOT

59386-13A00

$7.28

8

PIN

59382-14500

$8.43

9

BOOT

59303-14500

$5.06

10

PIN

59305-27C00

$26.52

11

RETAINER

69113-43D00

$9.97

12

PIN

59345-14600

$18.33

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

GUARD, CALIPER

69725-14D00

Unavailable

16

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

17

COVER, CALIPER BODY

69171-14D00

Unavailable
