1993 Suzuki DR350S Front Master Cylinder Diagram

← All diagrams

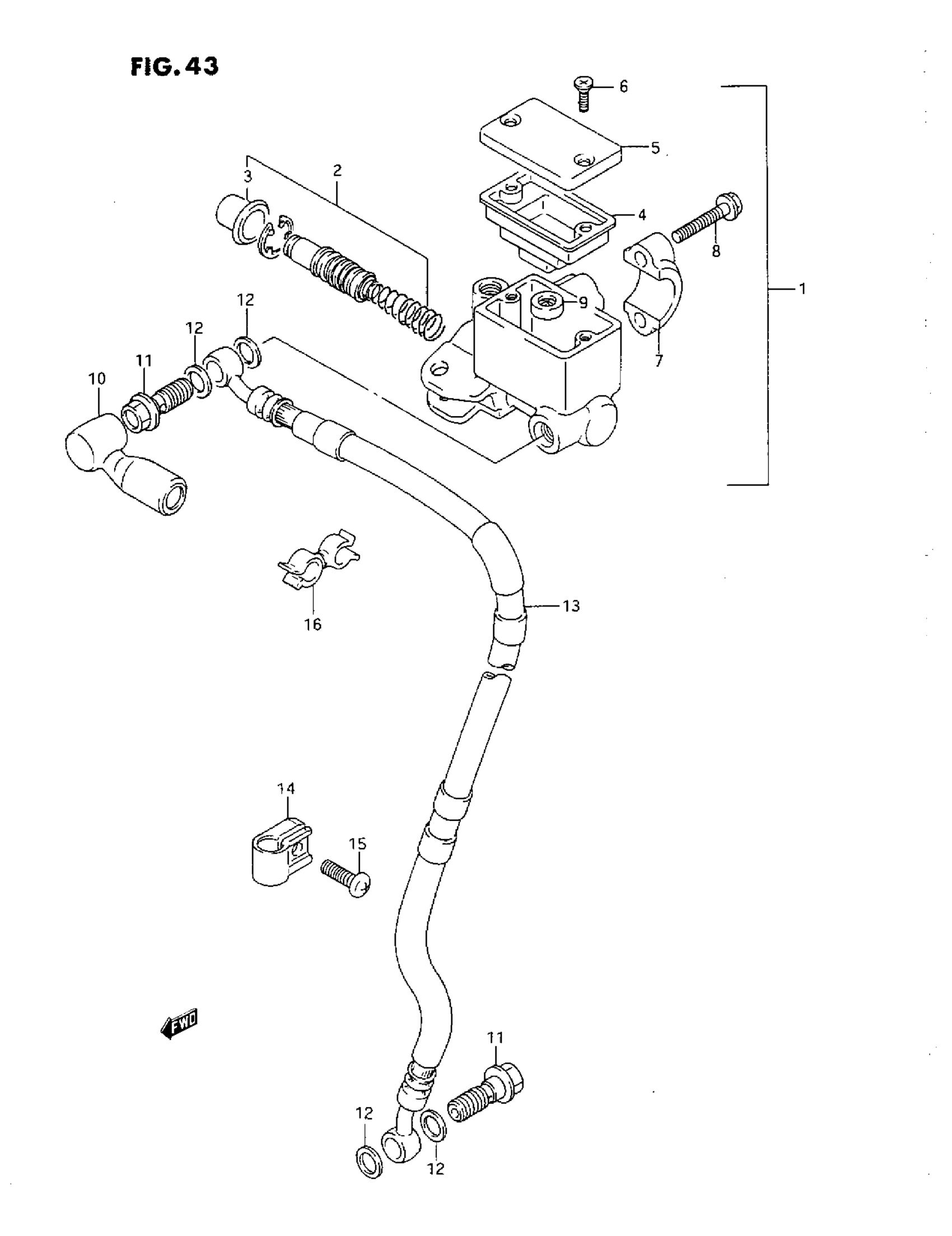

Find the part on the Front Master Cylinder diagram for your 1993 Suzuki DR350S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR350S Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

PISTON & CUP SET

69600-38810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-44B00

1

$9.75

In stock

5

CAP

59669-03D00

1

$36.47

In stock

6

.SCREW This part replaces 02122-04128.

02122-0412A

2
Out of stock

7

HOLDER

59671-03D00

1
Out of stock

8

BOLT

59675-27C00

2

$3.63

In stock

9

SEPARATOR

59748-14500

1

$13.40

In stock

11

BOLT | MODEL L/M/N/P

09360-10017

2
Out of stock

11

2

$6.33

In stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE, FRONT BRAKE

59480-15D01

1
Out of stock

14

CLAMP BRAKE HOSE This part replaces 58621-07A10.

58621-07A20

1
Out of stock

15

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

1
Out of stock

16

CLIP

09408-00145

1
Out of stock
