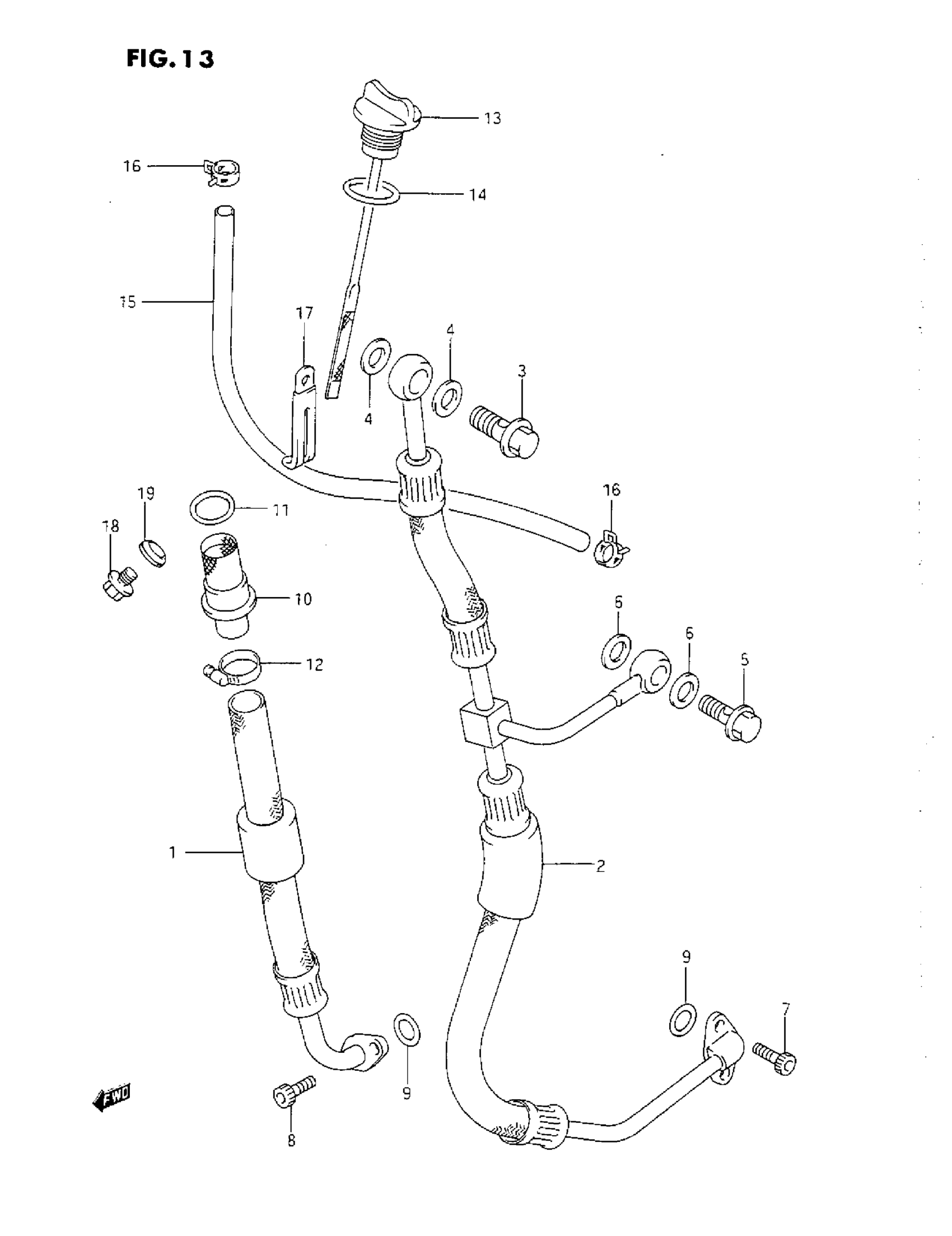

Suzuki DR350S (1993) OIL HOSE Diagram

#

Description
Price

1

HOSE, OIL TANK INLET | MODEL L/M/N/P This part replaces 16460-14D02.

16460-14D03

$132.03

1

HOSE, OIL TANK INLET | MODEL R

16460-14D03

$132.03

2

HOSE, OIL TANK OUTLET | MODEL L/M/N/P This part replaces 16470-14D02.

16470-14D51

$317.03

2

HOSE, OIL TANK OUTLET | MODEL R This part replaces 16470-14D50.

16470-14D51

$317.03

3

BOLT, UNION

09360-16002

$14.34

4

GASKET (16X22X2)

09168-16003

$1.91

5

BOLT, UNION (12X27) | -E.NO.105403 This part replaces 09360-12009.

09360-12008

$9.65

5

BOLT, UNION (12X27) | E.NO.105404- This part replaces 09360-12010.

09360-12008

$9.65

6

GASKET (12X16.5X1.5) | MODEL L/M/N/P

09168-12010

$3.07

6

GASKET (12X17.0X1.0) | MODEL R

09168-12017

$1.95

7

BOLT | MODEL L/M/N/P This part replaces 07110-06165.

07130-0616B

$2.39

7

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.39

8

BOLT, FRONT BRG HOUSING | MODEL L/M/N/P This part replaces 07110-06205.

07130-0620B

$3.05

8

BOLT, FRONT BRG HOUSING | MODEL R This part replaces 07130-06203.

07130-0620B

$3.05

9

O-RING (D:2.4, ID:12.3)

09280-12008

$2.76

10

STRAINER, FRAME HEAD UNDER

16550-14D02

Unavailable

11

O-RING (D:3.1, ID:22.7)

09280-22008

$2.27

12

CLAMP This part replaces 09402-22502.

09402-22511

$7.05

13

GAUGE, OIL LEVEL

16560-14D01

$31.70

14

O-RING (D:3.1, ID:16.8)

09280-17003

$1.65

15

HOSE, OIL OVER FLOW This part replaces 16480-14D00.

16480-47D00

Unavailable

16

CLIP | MODEL L/M/N/P This part replaces 09401-12406.

09401-11415

$2.23

16

CLIP | MODEL R This part replaces 09401-11407.

09401-11415

$2.23

17

CLAMP

09404-06607

Unavailable

18

PLUG, DRAIN | MODEL L

09247-10001

$2.20

18

PLUG, DRAIN | MODEL M/N/P/R

09247-10008

$1.97

19

GASKET

09168-10002

$2.13
