1993 Suzuki DR350S Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1993 Suzuki DR350S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

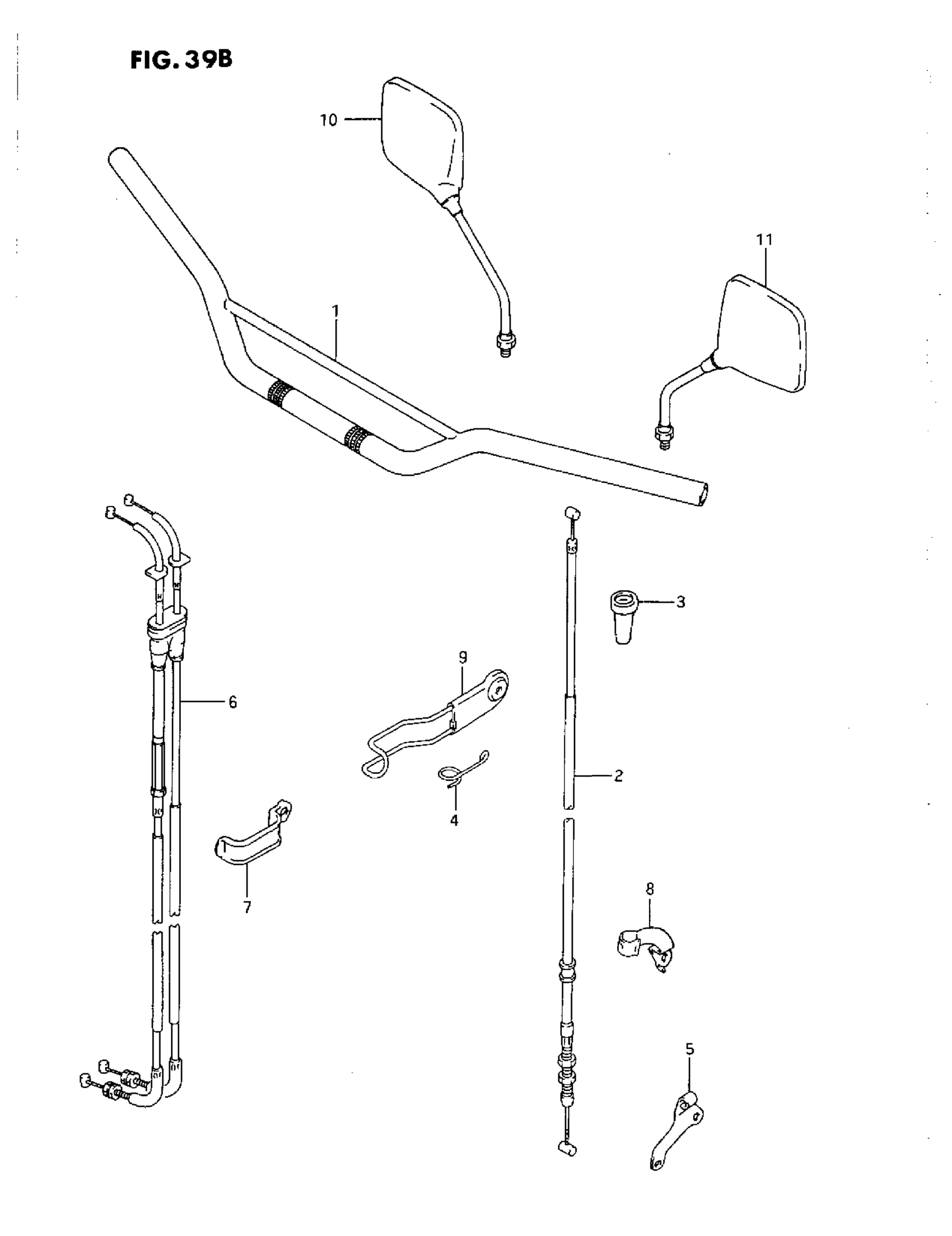

1993 Suzuki DR350S Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR (BLACK)

56110-14D11-291

1
Out of stock

2

CABLE ASSY, CLUTCH

58200-14D21

1
Out of stock

3

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

1
Out of stock

4

GUIDE, CLUTCH CABLE

58294-15D00

1
Out of stock

5

STOPPER, CLUTCH CABLE

58634-14D00

1
Out of stock

6

CABLE ASSY, THROTTLE

58300-14E00

1
Out of stock

7

CLAMP This part replaces 09403-09307.

09403-09328

1
Out of stock

8

CLAMP, CLUTCH CABLE

58285-14D01

1
Out of stock

9

GUIDE,CLUTCH CA This part replaces 58620-15D20.

58620-15D2V

1
Out of stock

10

MIRROR ASSY,REA This part replaces 56500-01A50.

56500-13A11

1
Out of stock

11

MIRROR ASSY,REA This part replaces 56600-01A50.

56600-13A11

1
Out of stock
