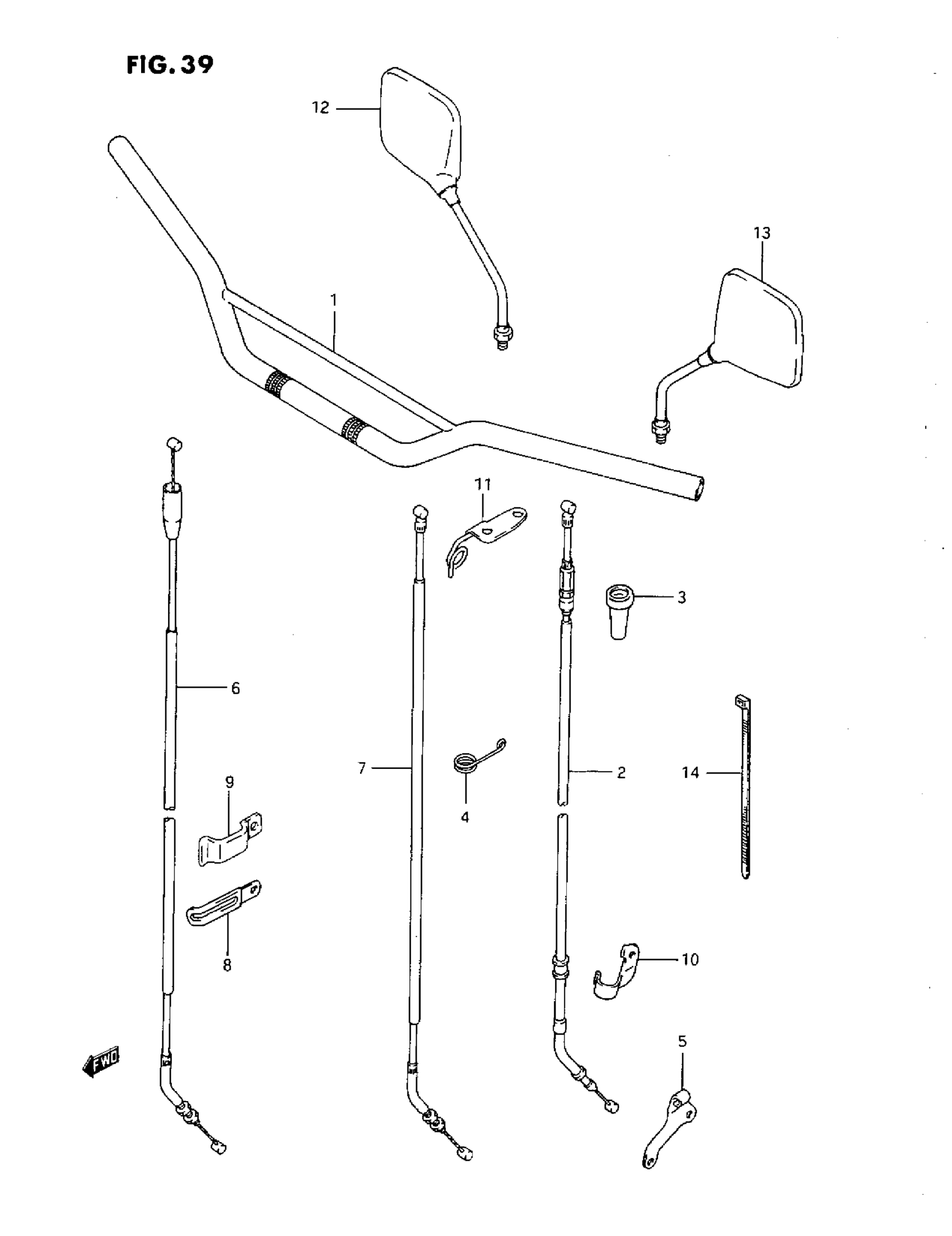

Suzuki DR350S (1993) HANDLEBAR (L/M) Diagram

#

Description
Price

1

HANDLEBAR (BLACK) This part replaces 56110-14D10-291.

56110-14D11-291

Unavailable

2

CABLE ASSY, CLU This part replaces 58200-14D00.

58200-14D01

$45.38

3

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

4

GUIDE, CLUTCH CABLE

58294-15D00

Unavailable

5

STOPPER, CLUTCH CABLE

58634-14D00

$14.73

6

CABLE ASSY, THROTTLE

58300-15D20

Unavailable

7

CABLE ASSY, DECOMP

58900-14D00

Unavailable

8

CLAMP | MODEL L This part replaces 09404-05404.

09404-06039

$1.73

9

CLAMP | MODEL M This part replaces 09403-10307.

09403-10328

$2.05

10

CLAMP, CLUTCH CABLE This part replaces 58285-14D00.

58285-14D01

Unavailable

11

GUIDE, CABLE

58620-15D10

Unavailable

12

MIRROR ASSY,REA This part replaces 56500-01A50.

56500-13A11

$202.35

13

MIRROR ASSY,REA This part replaces 56600-01A50.

56600-13A11

Unavailable

14

CLAMP, CLUTCH CABLE

09407-10404

$2.71
