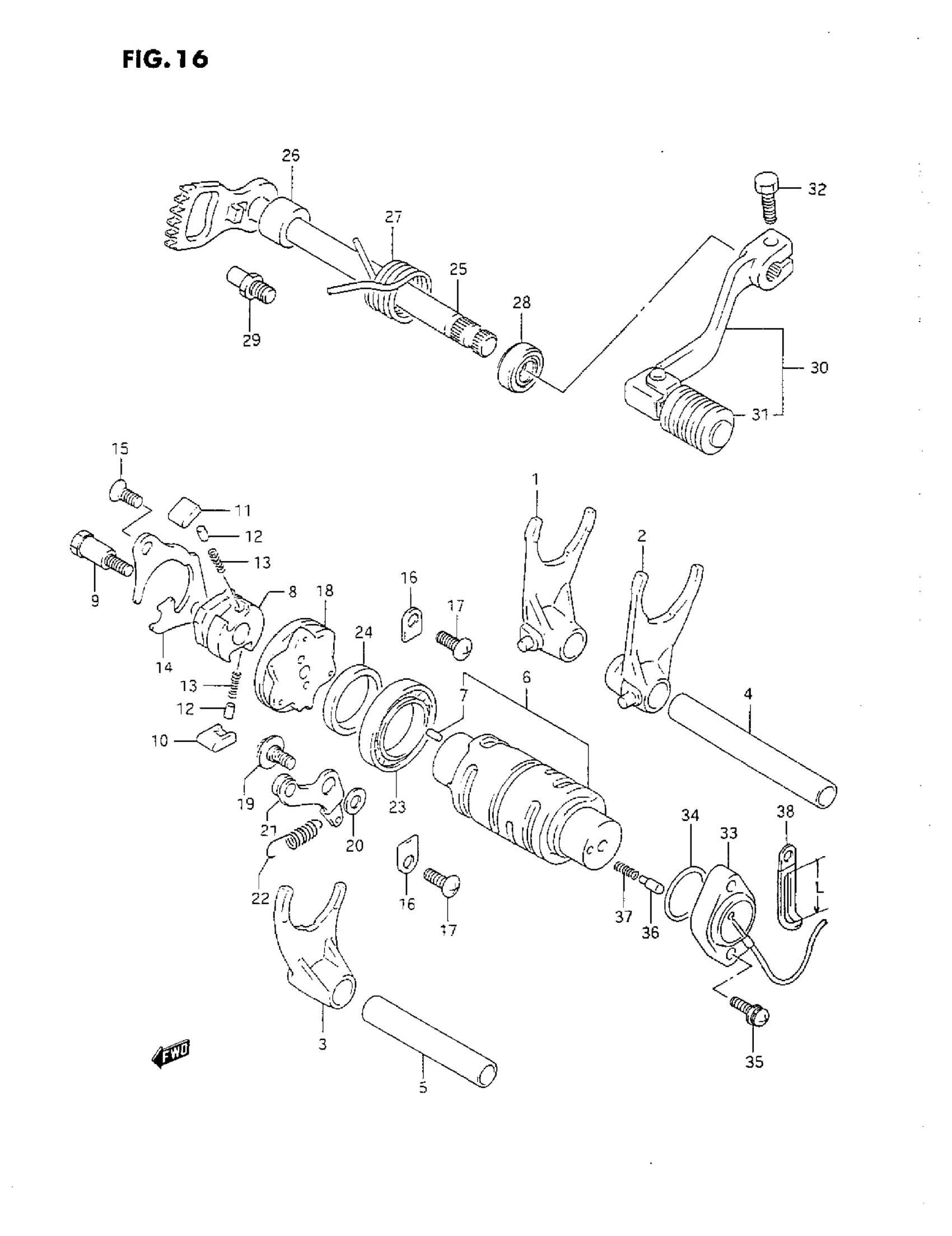

Suzuki DR350S (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-14D01.

25211-14D02

$87.70

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-14D02.

25221-14D03

$87.70

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-14D01.

25231-14D02

$87.70

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

$22.22

5

SHAFT, NO.2 (L:70)

25421-14D00

Unavailable

6

CAM

25310-14D01

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

9

PIN, SHIFT CAM DRIVEN GEAR

25312-38A00

$6.28

10

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

12

PIN

09261-05003

$1.54

13

SPRING

09440-04003

$1.54

14

LIFTER, PAWL

25331-14D00

$22.83

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.81

17

SCREW This part replaces 02112-06128.

02112-06127

$1.84

18

PLATE, STOPPER

25380-14D01

Unavailable

19

BOLT, SHIFT CAM STOPPER

09111-06041

$2.61

20

WASHER

08211-06141

$1.59

21

STOPPER, CAM

25350-14D01

$12.57

22

SPRING

09443-09026

$4.16

23

BEARING

08113-69050

$35.66

24

WASHER (25x32x5.3)

09160-25068

Unavailable

25

SHAFT. GEAR SHIFTING | MODEL L/M/N This part replaces 25510-14D00.

25510-14D01

$98.40

25

SHAFT, GEAR SHIFTING | MODEL P/R

25510-14D01

$98.40

26

SPACER (12X20X15.3)

09180-12068

$3.16

27

SPRING

09444-26004

$4.45

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

29

STOPPER, ARM

25671-36A00

$5.40

30

LEVER, GEAR SHIFTING | MODEL L/M/N

25600-14D04

Unavailable

30

LEVER, GEAR SHIFTING | MODEL P/R

25600-15D20

$50.74

31

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$5.05

32

BOLT, GEAR SHIFT LINK | MODEL L/M/N This part replaces 09100-06100.

01500-0620A

$1.78

32

BOLT, GEAR SHIFT LINK | MODEL P This part replaces 01107-06205.

01500-0620A

$1.78

32

BOLT, GEAR SHIFT LINK | MODEL R This part replaces 01500-06203.

01500-0620A

$1.78

33

BASE ASSY, TERMINAL | MODEL L/M/N/P This part replaces 37720-44400.

37720-47D00

$114.08

33

BASE, NEUTRAL SWITCH | MODEL R

37720-47D00

$114.08

34

O-RING (D:2.4, 10:26.2)

09280-26005

$2.30

35

SCREW This part replaces 02112-75208.

02112-75207

$2.92

36

CONTACT

09209-05011

$2.20

37

SPRING

09440-04010

$1.54

38

CLAMP (L:60) | MODEL L/M/N This part replaces 09404-06422.

09404-06429

$1.83

38

CLAMP | MODEL P/R This part replaces 09404-06402.

09404-06039

$1.74
