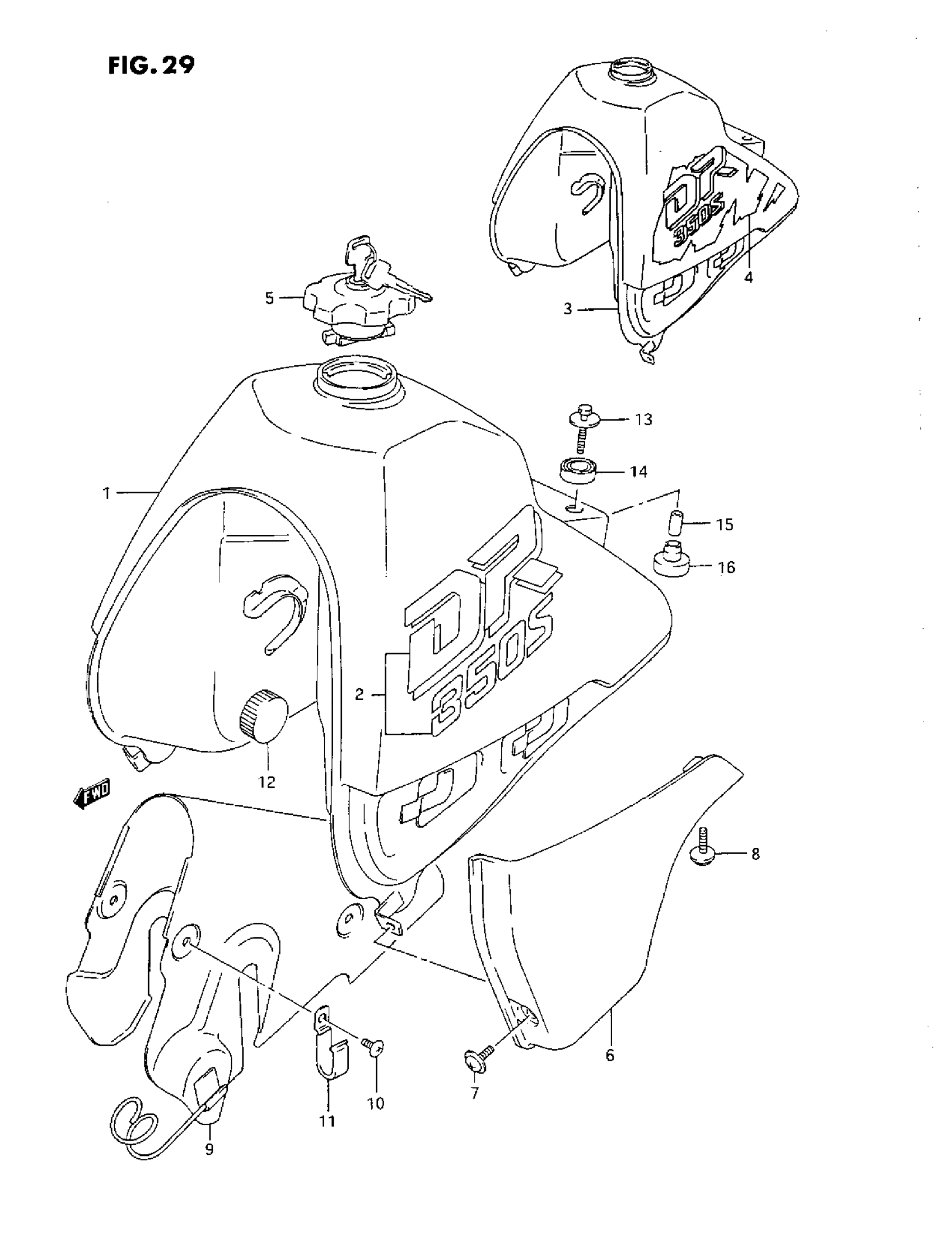

Suzuki DR350S (1993) FUEL TANK (L/M) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | MODEL L

44100-15D40-30H

Unavailable

1

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY, MODEL L

44100-15D30-30H

Unavailable

2

EMBLEM | MODEL L

68111-14D10-B25

Unavailable

3

TANK ASSY, FUEL (WHITE) | MODEL M

49100-15D40-28X

Unavailable

3

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY, MODEL M

49100-15D30-28X

Unavailable

4

TAPE SET, FUEL TANK | MODEL M

68110-14D30-0WE

Unavailable

5

CAP SET, FUEL TANK This part replaces 44200-03810.

44200-03811

Unavailable

5

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05820.

44200-05822

$74.48

6

COVER, FUEL TANK RH (WHITE)

44171-15D00-30H

Unavailable

6

COVER, FUEL TANK LH (WHITE)

44181-15D00-30H

Unavailable

7

SCREW, FRONT

02142-06108

$2.45

8

SCREW

09136-06002

$2.44

9

HEAT SHIELD, FUEL TANK This part replaces 49131-14D10.

49131-14D20

Unavailable

9

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 49130-15D10.

49130-15D11

Unavailable

10

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

11

CLAMP This part replaces 09404-05404.

09404-06039

$1.74

12

CUSHION, FRONT

09329-10016

$3.10

13

BOLT (6X30) This part replaces 09116-06153.

09116-06172

$2.50

14

CUSHION, UPPER

09320-14013

$2.11

15

SPACER This part replaces 09180-06072.

09180-06271

$2.35

16

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60
