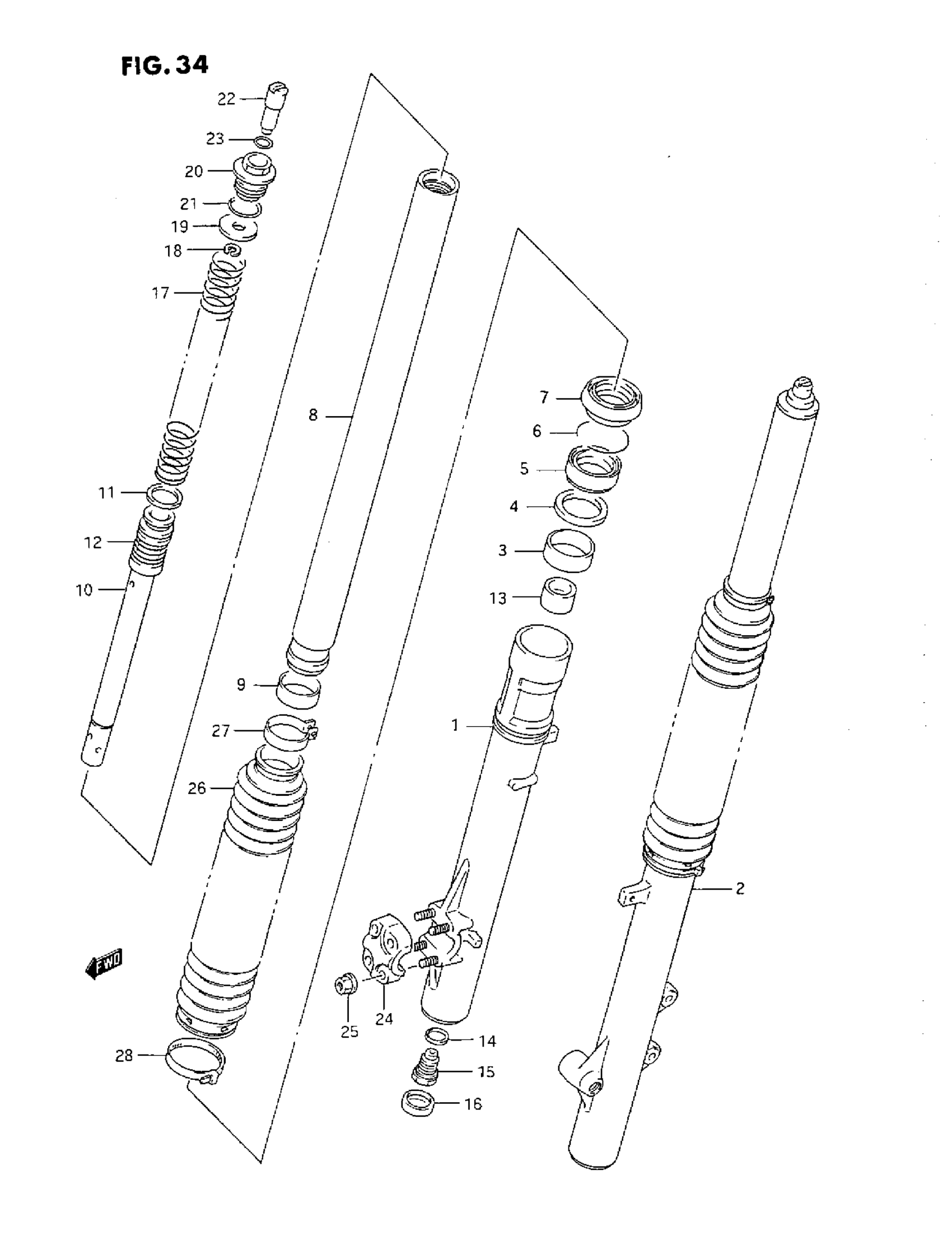

Suzuki DR350S (1993) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, RH | MODEL L/M

51103-14D10

Unavailable

1

DAMPER ASSY, RH | MODEL N/P/R

51103-14D40

Unavailable

1

DAMPER ASSY, LH | MODEL L/M

51104-14D10

Unavailable

1

DAMPER ASSY, LH | MODEL N/P/R

51104-14D40

Unavailable

1

TUBE, OUTER RH

51130-14D00

Unavailable

2

TUBE, OUTER LH

51140-14D00

Unavailable

3

BUSH, GUIDE | MODEL L/M This part replaces 51152-17C00.

51152-07D00

Unavailable

3

BUSH, GUIDE | MODEL N/P/R

51152-07D00

Unavailable

4

.SPACER, SEAL

51168-17C00

$6.28

5

SEAL, OIL

51153-14D00

$22.96

6

RING, STOPPER

51556-38B00

$7.22

7

SEAL, DUST

51173-14D00

$30.53

8

TUBE, INNER | MODEL L/M This part replaces 51110-14D10.

51110-14D40

Unavailable

8

TUBE, INNER | MODEL N/P/R

51110-14D40

Unavailable

9

BUSH, SLIDE

51121-14D00

Unavailable

10

CYLINDER | MODEL L/M

51190-14D00

Unavailable

10

CYLINDER | MODEL N/P/R

51190-14D40

Unavailable

11

RING, PISTON

51196-14D00

Unavailable

12

SPRING, REBOUND

51177-14D00

$13.07

13

PIECE, OIL LOCK

51195-14D00

Unavailable

14

GASKET

51148-14D00

Unavailable

15

BOLT, PIECE | MODEL L/M

51170-14D00

Unavailable

15

BOLT, PIECE | MODEL N/P/R

51170-14D40

Unavailable

16

CAP

51512-14D00

Unavailable

17

SPRING, MAIN | MODEL L/M

51171-14D10

Unavailable

17

SPRING, MAIN | MODEL N/P/R

51171-14D40

Unavailable

18

E RING

51788-11420

Unavailable

19

SEAT, SPRING

51186-12C00

$7.53

20

BOLT, FORK

51189-14D00

Unavailable

21

O-RING | FORK OIL MODEL L & M ONLY

51117-17C00

$5.95

22

ADJUSTER, SPRING | CAPACITY (EACH SIDE): 18.4OZ/544 ML

51185-14D00

Unavailable

23

O RING (D:2.5,ID:13.8) | LEVEL:- 6.7 IN/1 70 MM FROM 0, 2 This part replaces 51187-14D00.

09280-14011

$4.77

24

HOLDER, AXLE RH | WEIGHT: #10

51132-14D00

Unavailable

25

NUT, AXLE HOLDER

51168-14D00

Unavailable

26

BOOT | FORK OIL MODEL N,P.ER This part replaces 51571-14D00-38K.

51571-14D01-38K

Unavailable

27

BAND, BOOT UPPER | CAPACITY (EACH SIDE): 19.2 OZ/569 ML

51575-14D00

$12.57

28

BAND, BOOT LOWER | LEVEL: 6.0 IN/152 MM

51576-14D00

$14.20
