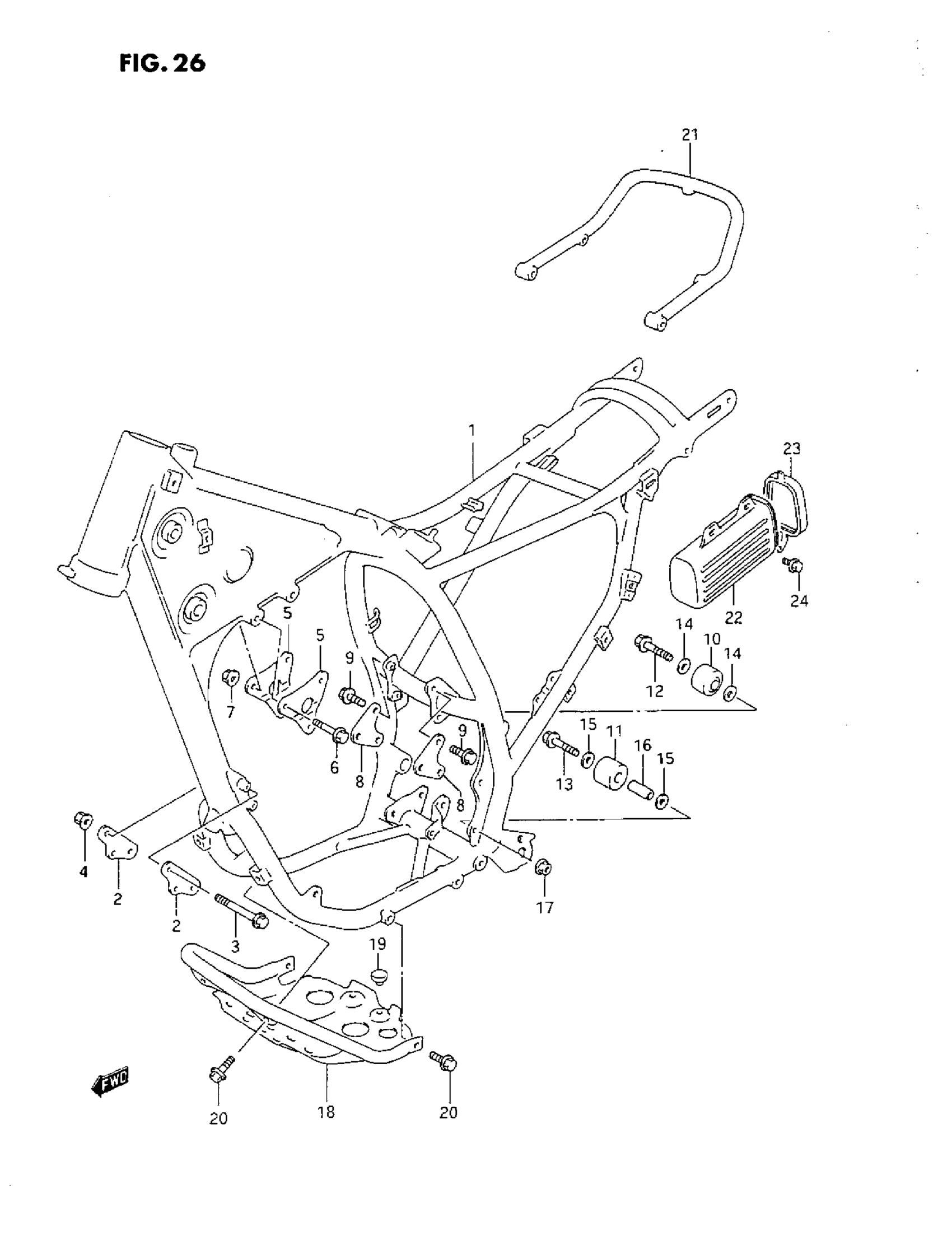

Suzuki DR350S (1993) FRAME (L/M/N/P) Diagram

#

Description
Price

1

KEY, BLANK | OPT NOT SHOWN This part replaces 37146-24500.

37146-03A00

$9.89

1

KEY, BLANK | OPT NOT SHOWN This part replaces 37146-24510.

37146-03A10

$11.63

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 41100-14D20-0NF.

41100-14D72-0NF

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41100-14D30-0NF.

41100-14D72-0NF

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 41100-14D31-0NF.

41100-14D72-0NF

Unavailable

2

PLATE, FRONT

41911-14D01

Unavailable

3

BOLT

09103-08294

Unavailable

4

NUT | MODEL L

08319-31087

$2.32

4

NUT | MODEL M/N/P

09159-08034

$1.62

5

PLATE, UPPER

41991-14D01

Unavailable

6

BOLT (8X70) This part replaces 09103-08293.

09103-08569

$4.88

7

NUT | MODEL L

08319-31087

$2.32

7

NUT | MODEL M/N/P

09159-08034

$1.62

8

PLATE, LOWER

41971-14D01

Unavailable

9

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

10

ROLLER, CHAIN CONTROL | MODEL L This part replaces 43910-27C10.

43910-27C11

$64.67

10

ROLLER, CHAIN CONTROL | MODEL M This part replaces 43910-27C10.

43910-27C11

$64.67

10

ROLLER, CHAIN | MODEL N/P

43910-27C11

$64.67

11

ROLLER, CHAIN LOWER | MODEL L

43911-01B10

$16.63

12

BOLT, UPPER

09103-08178

$4.69

13

BOLT, MUF SPRT,RR | MODEL L This part replaces 01517-08457.

01550-08457

$4.00

13

BOLT, INNER | MODEL M/N/P This part replaces 09103-08068.

09103-08043

$3.18

14

WASHER, UPPER | MODEL L/M

09160-08074

Unavailable

14

WASHER, TIPPER | MODEL N/P

08211-08121

$1.99

15

WASHER | MODEL L This part replaces 09160-08021.

09160-08130

$2.03

15

WASHER, LOWER | MODEL M

09160-08074

Unavailable

15

WASHER, LOWER | MODEL N/P

08211-08121

$1.99

16

SPACER (8.5X14X28) | MODEL L This part replaces 09180-08136.

09180-08206

$5.75

17

NUT This part replaces 08313-21087.

08313-20087

$2.19

18

PROTECTOR, ENGINE (SILVER) | MODEL L This part replaces 42510-14D01-13L.

42510-14D10-13L

Unavailable

18

PROTECTOR, ENGINE (SILVER) | MODEL M/N/P

42510-14D10-13L

Unavailable

19

CUSHION

09321-10026

Unavailable

20

BOLT This part replaces 01517-08128.

01550-08127

$2.85

21

GRIP, REAR (BLUE) | MODEL L This part replaces 43980-14D70-0NF.

43980-15D30-0NF

Unavailable

21

GRIP, REAR (BLUE) | MODEL M/N/P This part replaces 43980-14D71-0NF.

43980-15D30-0NF

Unavailable

22

HOLDER, TOOL

47431-14D00

$47.07

23

CAP,TOOL HOLDER This part replaces 47432-14D00.

47432-14D01

$12.83

24

BOLT, CENTER This part replaces 09116-06085.

09116-06165

$3.03
