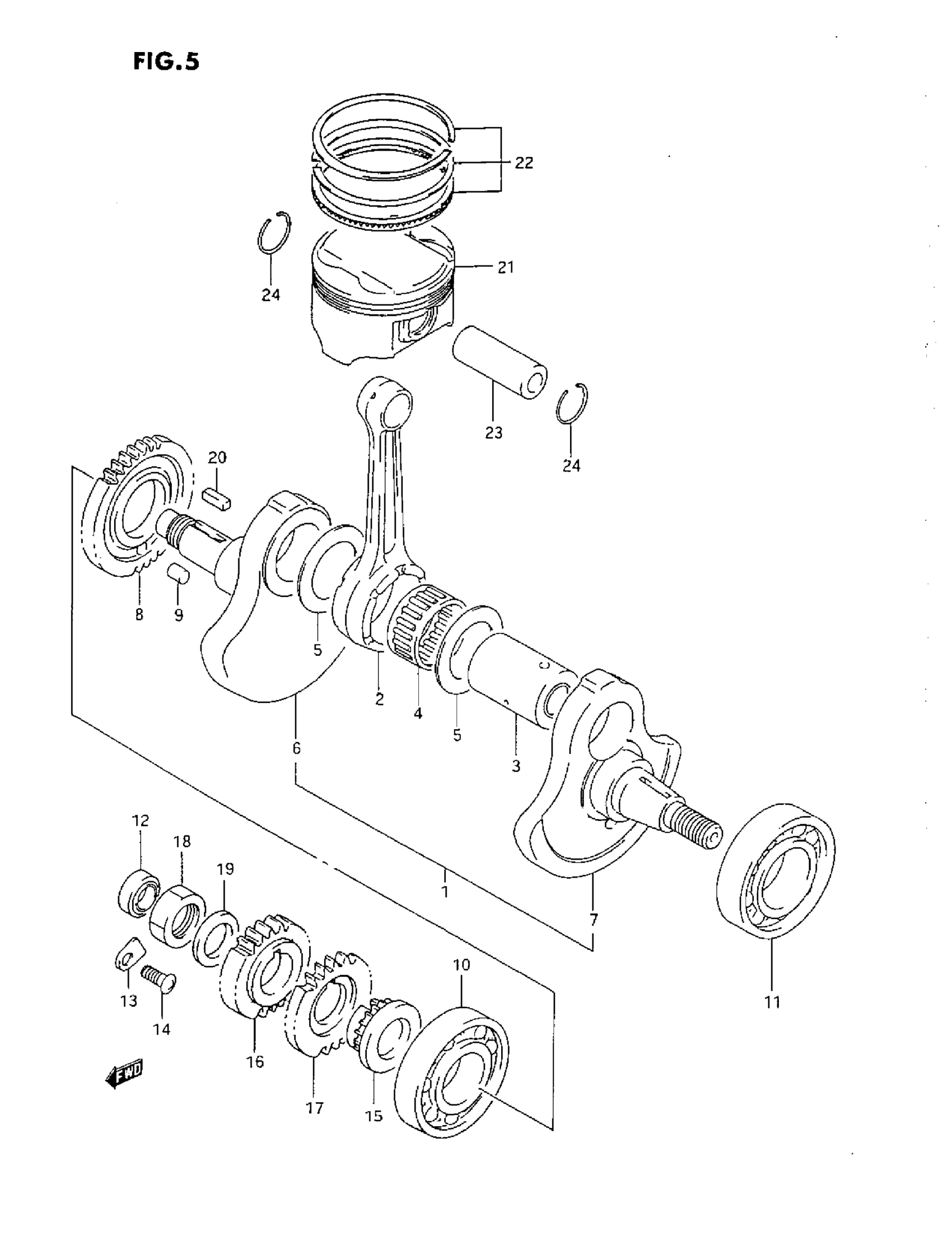

Suzuki DR350S (1993) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | MODEL L/M/N/P

12200-14D00

Unavailable

1

CRANKSHAFT ASSY | MODEL R

12200-14E00

Unavailable

2

ROD, CONNECTING

12161-14D00

$150.35

3

.PIN, CRANK This part replaces 12210-14D02.

12210-14D03

$86.13

4

BEARING

09263-34005

$80.87

5

WASHER

09160-34003

$8.62

6

CRANKSHAFT, RH | MODEL L/M/N/P This part replaces 12221-14D00.

12221-14D01

Unavailable

6

CRANKSHAFT, RH | MODEL R

12221-14D01

Unavailable

7

CRANKSHAFT, LH | MODEL L/M/N/P

12261-14D00

Unavailable

7

CRANKSHAFT, LH | MODEL R

12261-14E00

Unavailable

8

GEAR, BALANCER DRIVE

12661-14D00

$123.38

9

PIN

04221-08149

$1.96

10

BEARING, RH (30x72x19)

09262-30077

$58.43

11

BEARING, LH (35X72X17)

09262-35038

$46.10

12

OIL SEAL, RH

09282-14003

$8.24

13

PLATE, RH

24742-18A00

$4.35

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

15

SPROCKET, CAM CHAIN DRIVE | NT:17

12731-14D00

$64.68

16

GEAR,PRIMARY DR | MODEL L/M/N/P This part replaces 21111-14D00.

21111-14D01

Unavailable

16

GEAR, PRIMARY DRIVE (NT:20) | MODEL R This part replaces 21111-15D20.

21111-15D21

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 16321-15D00.

16321-15D01

Unavailable

18

NUT

09140-18012

$8.37

19

LOCK WASHER

09164-18001

$3.24

20

KEY, GEAR

09421-05009

$9.55

21

PISTON | MODEL L/M/N/P This part replaces 12111-14D00-0F0.

12111-14D03-0F0

$112.60

21

PISTON | MODEL R This part replaces 12111-14D02-0F0.

12111-14D03-0F0

$112.60

21

PISTON SET (OS:0.5) | OPT, MODEL L/M/N/P This part replaces 12111-14D00-050.

12100-14D01-050

$185.78

21

PISTON SET (OS:0.5) | OPT, MODEL R This part replaces 12111-14D02-050.

12100-14D01-050

$185.78

21

PISTON SET (OS:1.0) | OPT, MODEL L/M/N/P This part replaces 12111-14D00-100.

12100-14D01-100

Unavailable

21

PISTON SET (OS:1.0) | OPT, MODEL R This part replaces 12111-14D02-100.

12100-14D01-100

Unavailable

22

RING SET, PISTON

12140-14D10

$61.73

22

RING SET, PISTON (OS:0.5) | OPT

12140-14D10-050

Unavailable

22

RING SET, PISTON (OS:1.0 ) | OPT

12140-14D10-100

Unavailable

23

PIN,PISTON

12151-24A00

$22.03

24

CIRCLIP

09381-20004

$1.65
