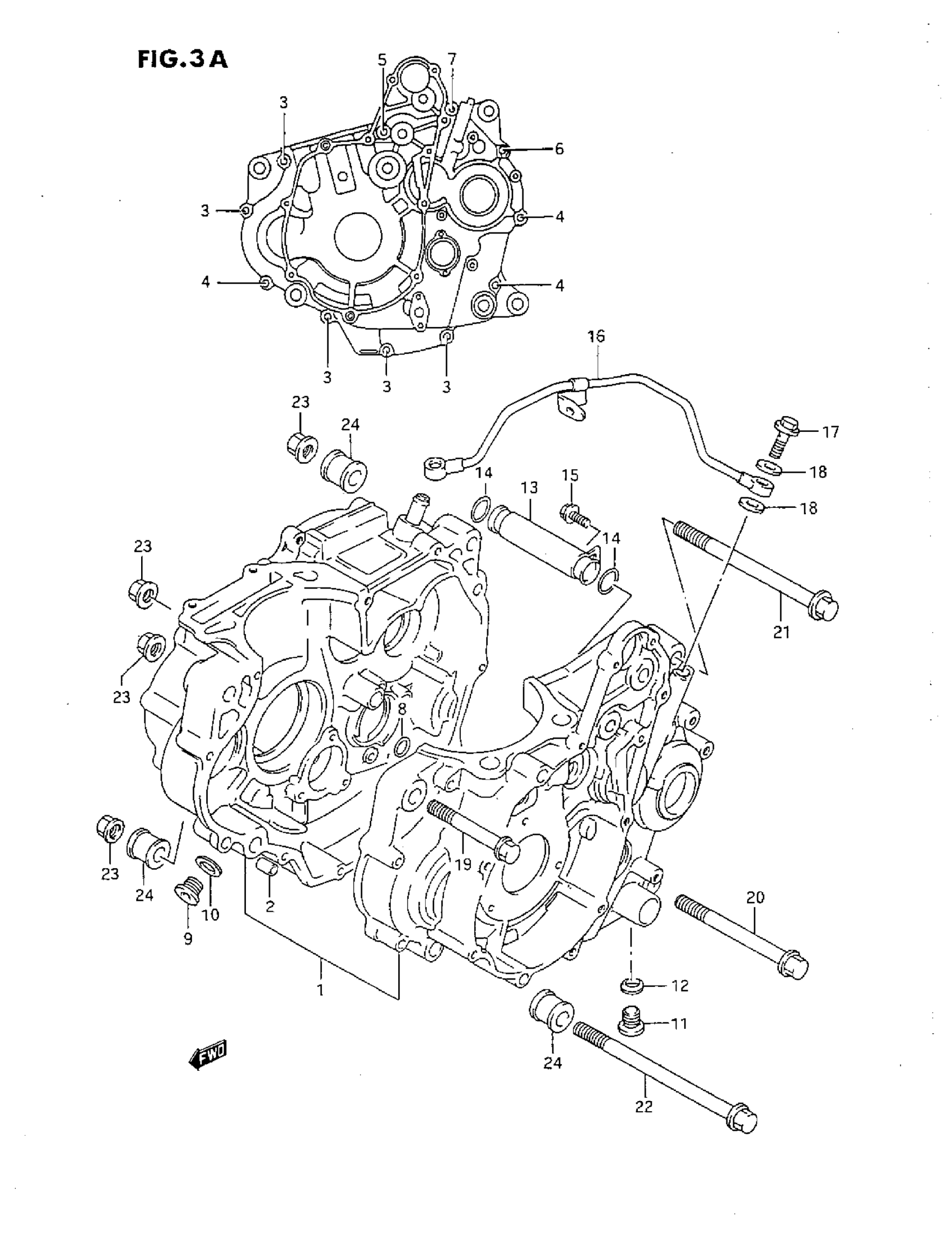

Suzuki DR350S (1993) CRANKCASE (R) Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11301-15812.

11301-15815

$1,281.18

2

PIN

04211-09149

$1.65

3

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

4

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

5

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

6

BOLT

01547-06707

$2.75

7

BOLT This part replaces 01547-06903.

01547-0690B

$3.20

8

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$3.18

9

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

10

GASKET (14x19.2x2)

09168-14002

$2.26

11

BOLT This part replaces 01500-12203.

01500-1220B

$4.00

12

GASKET

09168-12002

$1.59

13

PIPE, MISSION OIL INNER

11450-14D01

Unavailable

14

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

16

PIPE, MISSION OIL OUTER This part replaces 11280-15D01.

11280-15D10

Unavailable

17

BOLT (8x25)

09360-08011

$3.68

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

19

BOLT,10X85 This part replaces 09103-10230.

09103-10083

Unavailable

20

BOLT (10X100)

09103-10242

$8.50

21

BOLT (10X115)

09103-10063

$8.73

22

BOLT (10X143)

09103-10241

Unavailable

23

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

24

SPACER (L:19.85)

11611-14D00

Unavailable
