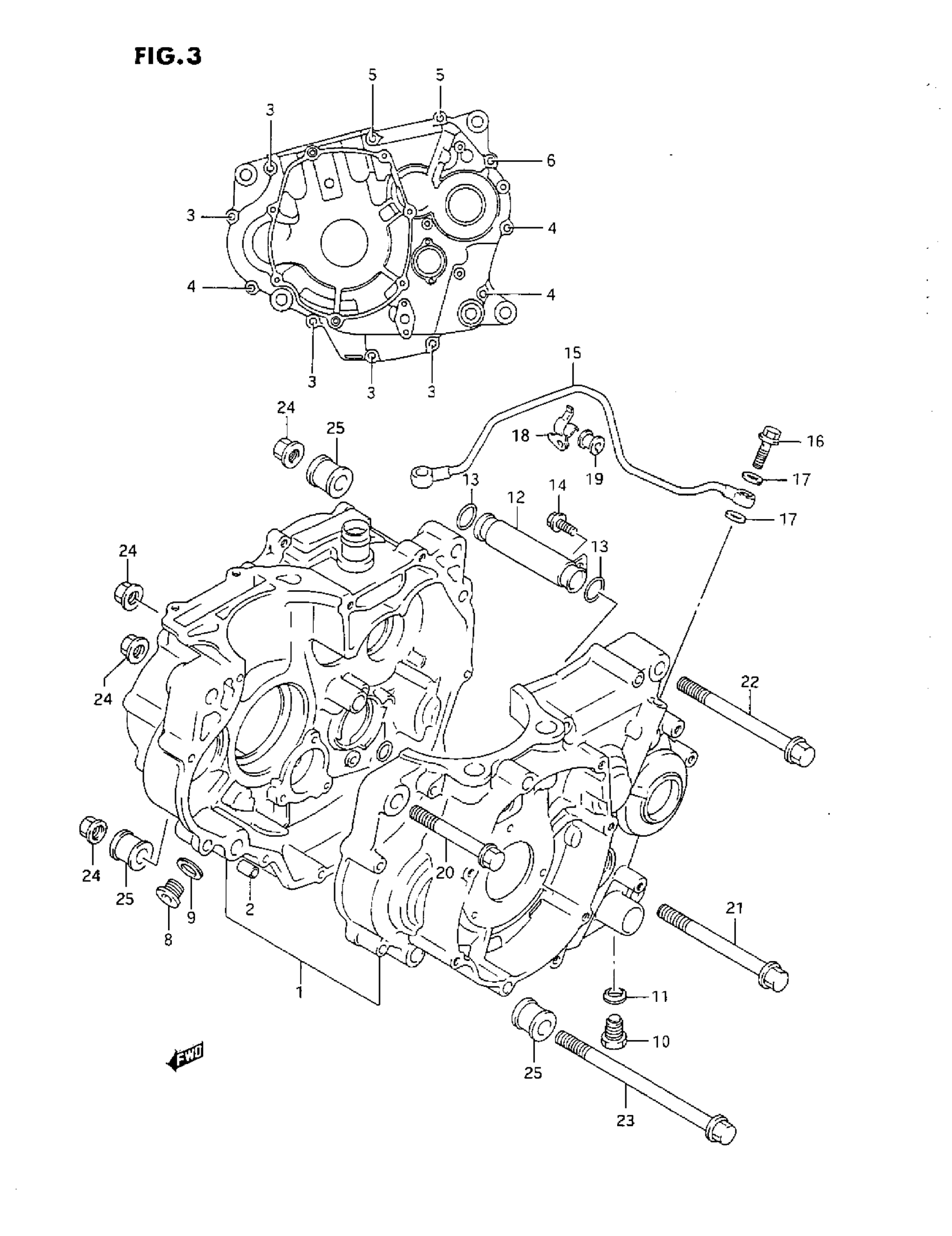

Suzuki DR350S (1993) CRANKCASE (L/M/N/P) Diagram

#

Description
Price

1

CRANKCASE SET | MODEL L/M/N This part replaces 11301-14880.

11301-14883

Unavailable

1

CRANKCASE SET | MODEL P This part replaces 11301-14882.

11301-14883

Unavailable

2

PIN

04211-09149

$1.65

3

BOLT

01547-06457

$2.32

4

BOLT

01547-06507

$2.41

5

BOLT

01547-06607

$3.18

6

BOLT

01547-06707

$2.75

7

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$3.18

8

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

9

GASKET

09168-14004

$1.83

10

BOLT This part replaces 01104-12205.

01500-1220B

$4.00

11

GASKET

09168-12002

$1.59

12

PIPE, MISSION OIL INNER

11450-14D01

Unavailable

13

O-RING

09280-16005

$2.23

14

BOLT This part replaces 01517-06128.

01550-06127

$2.30

15

PIPE, MISSION OIL OUTER

11280-14D02

Unavailable

16

UNION BOLT, OIL PIPE

09360-08011

$3.68

17

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

18

CLAMP, OIL PIPE

11290-14D00

Unavailable

19

CUSHION

09320-06019

Unavailable

20

BOLT,10X85 This part replaces 09103-10230.

09103-10083

Unavailable

21

BOLT (10X100)

09103-10242

$8.50

22

BOLT (10X115)

09103-10063

$8.73

23

BOLT (10X143)

09103-10241

Unavailable

24

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

25

SPACER (L:19.85) | MODEL L/M/N This part replaces 11611-36A30.

11611-14D00

Unavailable

25

SPACER (L:19.85) | MODEL P

11611-14D00

Unavailable
