Partiron

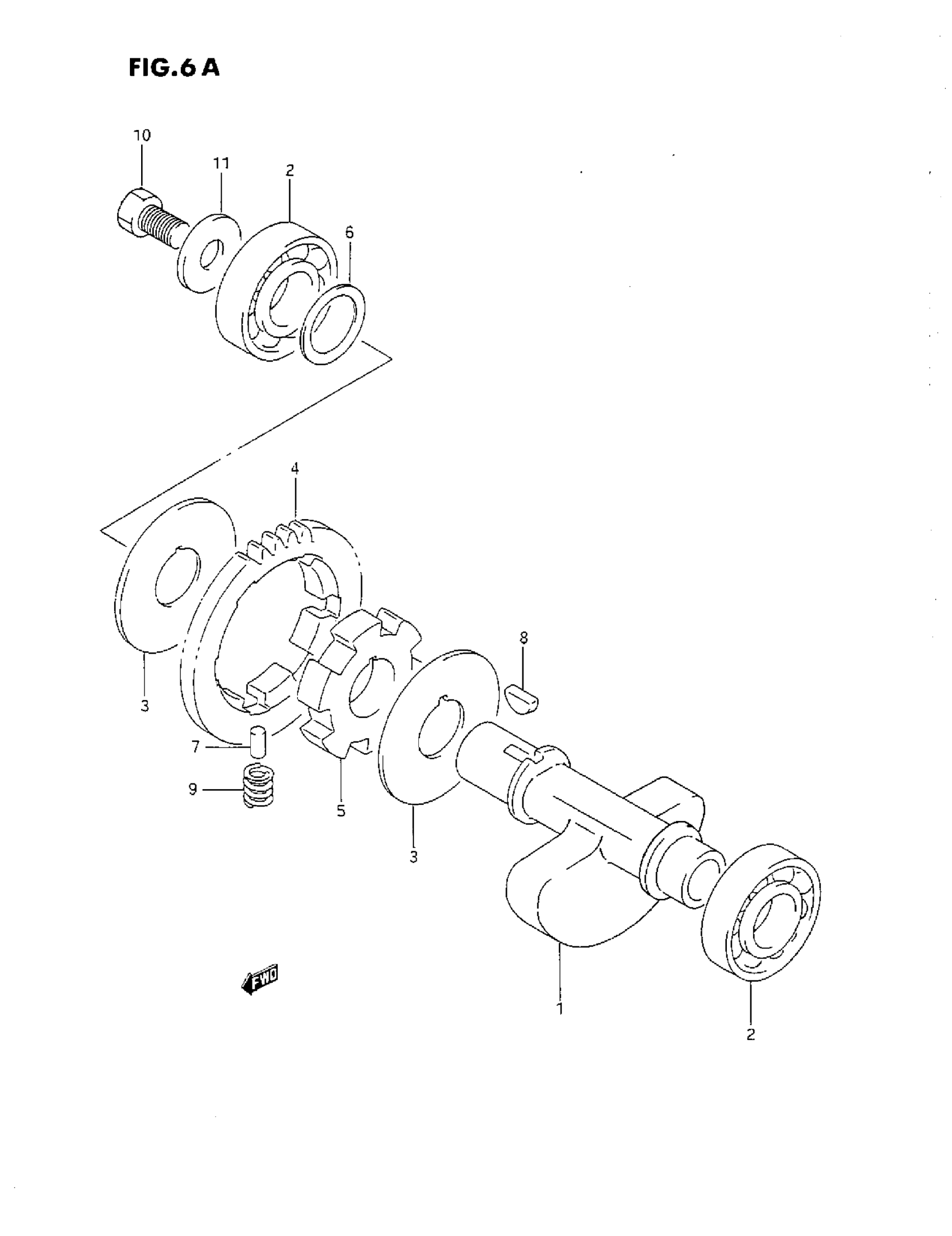

Suzuki DR350S (1993) CRANK BALANCER Diagram

#

Description
Price

1

SHAFT, CRANK BALANCER | MODEL L/M/N This part replaces 12651-14D00.

12651-14D01

Unavailable

1

SHAFT, CRANK BALANCER | MODEL P/R

12651-14D01

Unavailable

2

BEARING (20X47X14)

09262-20121

$33.92

3

WASHER, DRIVEN GEAR

09166-20012

Unavailable

4

GEAR, DRIVEN (NT:37) | MODEL L/M/N This part replaces 12666-14D01.

12666-14D02

Unavailable

4

GEAR, DRIVEN (NT:37) | MODEL P/R

12666-14D02

Unavailable

5

RACE, INNER This part replaces 12669-24B00.

12669-24B01

Unavailable

6

SHIM (20X28X0.5) This part replaces 08221-20285.

09181-20158

$3.03

7

PIN | MODEL L/M/N/P This part replaces 09202-04013.

09202-04017

$3.78

7

PIN | MODEL R

09202-04017

$3.78

8

KEY This part replaces 08341-31049.

09420-04008

$3.42

9

SPRING

09440-09031

$2.98

10

BOLT | MODEL L/M/N/P This part replaces 01107-10168.

01500-10167

$3.85

10

BOLT | MODEL R This part replaces 01500-10163.

01500-1016B

Unavailable

11

WASHER

09160-10099

Unavailable
