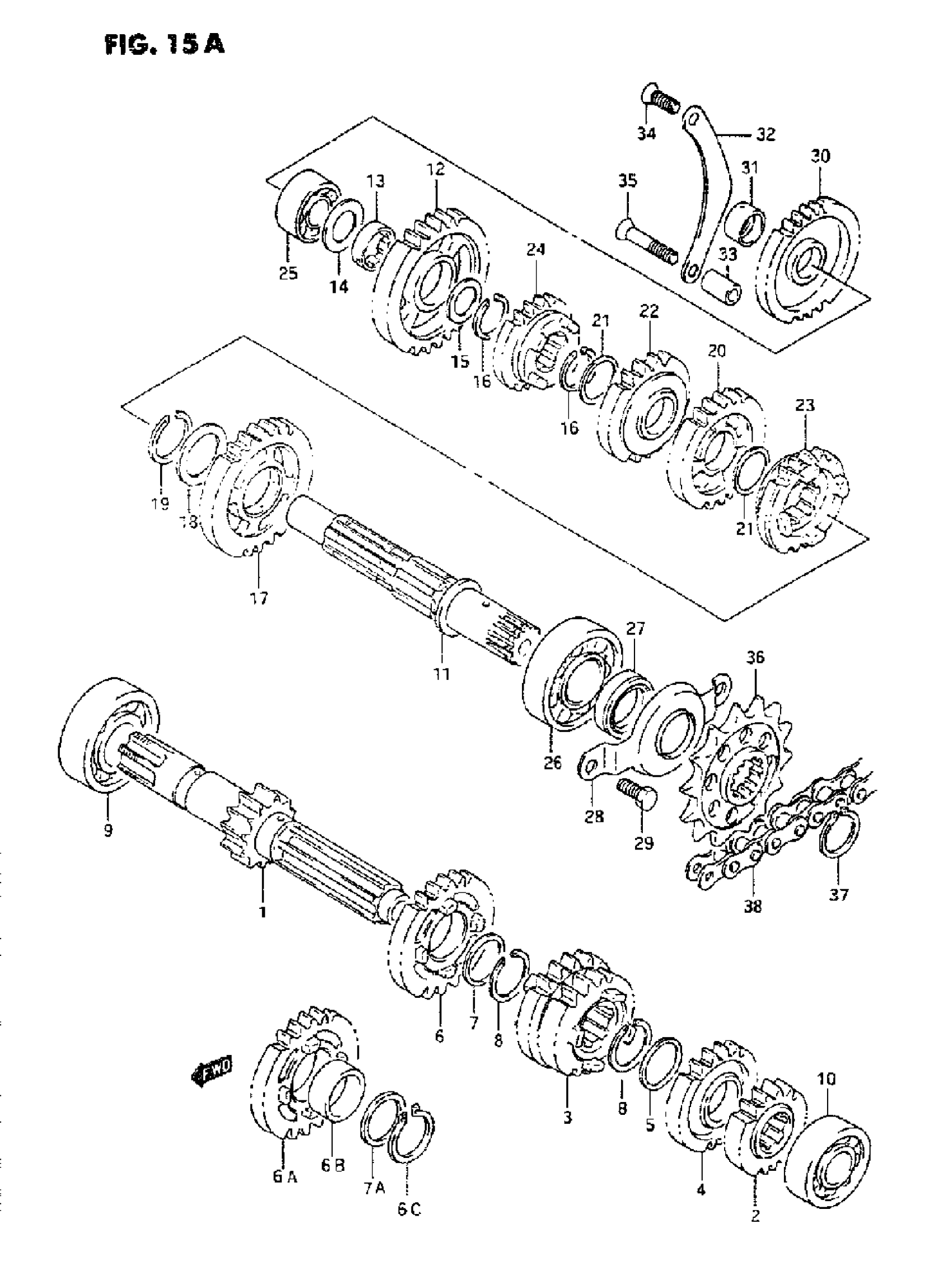

Find the part on the Transmission diagram for your 1995 Suzuki DR350, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR350 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12) | MODEL L/M This part replaces 24120-14D01.

24120-14D03

1
Out of stock

1

COUNTERSHAFT (NT:12) | MODEL N/P/R/S/T

24120-14D03

1
Out of stock

2

GEAR, 2ND DRIVE (NT:15) This part replaces 24221-14D00.

24221-14D01

1
Out of stock

3

-GEAR, 3/4TH DRIVE (NT:18/18)

24231-14D00

1
Out of stock

4

GEAR, 5TH DRIVE (NT:21)

24251-14D00

1
Out of stock

5

SHIM This part replaces 08211-22261.

09181-22111

1
Out of stock

6

GEAR, 6TH DRIVE (NT:23) | MODEL L/M

24260-14D00

1
Out of stock

6

GEAR, 6TH DRIVE (NT:23) | MODEL N/P/R/S/T

24261-14D02

1
Out of stock

6

BUSH, 6TH DRIVE GEAR | MODEL N/P/R/S/T

09300-22008

1
Out of stock

6

CIRCLIP | MODEL N/P/R/S/T This part replaces 08331-31226.

08331-31229

1
Out of stock

7

WASHER (22X28X1.0) | MODEL L/M This part replaces 08211-22281.

09181-22139

1
Out of stock

7

WASHER, 6TH DRIVE | MODEL N/P/R/S/T This part replaces 08211-22301.

09181-22167

1
Out of stock

8

CIRCLIP | MODEL L/M

09380-22006

2
Out of stock

8

CIRCLIP | MODEL N/P/R/S/T

09380-22006

1
Out of stock

9

BEARING (20X52X15) | MODEL L/M/N/P This part replaces 09262-20065.

09262-20145

1
Out of stock

9

BEARING (20X52X15) | MODEL P/S/T This part replaces 09262-20116.

09262-20145

1
Out of stock

10

BEARING (17X40X12) | MODEL L/M/N This part replaces 09262-17018.

09262-17027

1
Out of stock

10

BEARING, LH | MODEL P

09262-17027

1
Out of stock

10

BEARING (17X40X12) | MODEL R/S/T This part replaces 09262-17018.

09262-17027

1
Out of stock

11

DRIVESHAFT | MODEL L/M This part replaces 24130-14D11.

24130-14D14

1
Out of stock

11

DRIVESHAFT | MODEL M/P/R/S This part replaces 24130-14D13.

24130-14D14

1
Out of stock

11

DRIVESHAFT | MODEL T

24130-14D14

1
Out of stock

12

GEAR, 1ST DRIVEN (NT:29) | MODEL L/M/N/P/R/S This part replaces 24311-14D00.

24311-14D01

1
Out of stock

12

GEAR, IST DRIVEN (NT:30) | MODEL T

24311-15D00

1
Out of stock

13

BUSH

24312-14D00

1
Out of stock

14

WASHER, RH

08211-17322

1
Out of stock

15

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

1
Out of stock

16

CIRLIP

09380-22006

2
Out of stock

17

GEAR. 2ND DRIVEN CNT:26)

24320-14D00

1
Out of stock

18

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

1
Out of stock

19

CIRCLIP

09380-25010

1
Out of stock

20

GEAR, 3RD DRIVEN CNT:24) | MODEL L/M/N This part replaces 24331-14D00.

24331-14D01

1
Out of stock

20

GEAR, 3RD DRIVEN CNT:24) | MODEL P/R/S/T

24331-14D01

1
Out of stock

21

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

2
Out of stock

22

GEAR, 4TH DRIVEN (NT:20)

24341-14D00

1
Out of stock

23

GEAR, 5TH DRIVEN (NT:20) This part replaces 24351-14D00.

24351-14D01

1
Out of stock

24

GEAR, 6TH DRIVEN (NT:19) | MODEL L/M/N This part replaces 24361-14D00.

24361-14D01

1
Out of stock

24

GEAR, 6TH DRIVEN (NT:19) | MODEL P/R/S/T

24361-14D01

1
Out of stock

25

BEARING, RH

09267-17003

1
Out of stock

26

BEARING, LH

09262-22024

1
Out of stock

27

OIL SEAL

09283-22025

1
Out of stock

28

HOLDER. OIL SEAL

24751-14D00

1
Out of stock

29

BOLT | MODEL L/M/N/P This part replaces 01107-06126.

01500-0612A

2
Out of stock

29

BOLT | MODEL R/S/T This part replaces 01500-06123.

01500-0612A

2
Out of stock

30

GEAR, KICK IDLE (NT:27)

26261-14D10

1
Out of stock

31

BUSH. KICK IDLE GEAR

26262-14D00

1
Out of stock

32

RETAINER

26264-14D00

1
Out of stock

33

.SPACER (6.5X12X21) This part replaces 09180-06229.

09180-06314

1
Out of stock

34

SCREW | MODEL L/M/N/P/R

02122-06167

1
Out of stock

34

SCREW | MODEL S/T This part replaces 02122-06163.

02122-0616A

1
Out of stock

35

SCREW | MODEL L/M/N/P/R This part replaces 02122-06356.

02122-0635B

1
Out of stock

35

SCREW | MODEL S/T This part replaces 02122-06353.

02122-0635B

1
Out of stock

36

SPROCKET, ENGINE (NT:14) | MODEL L/M/N/P This part replaces 27511-14300.

27511-47D00

1
Out of stock

36

SPROCKET (NT:15) | MODEL R/S/T

27511-14320

1
Out of stock

37

CIRCLIP

09380-22012

1
Out of stock

38

CHAIN ASSY,DRIV | MODEL L/M/N/P/R This part replaces 27600-13A60-110.

27600-14A20-110

1
Out of stock

38

CHAIN ASSY,DRIV | MODEL S/T This part replaces 27600-14A10-110.

27600-14A20-110

1
Out of stock
