Partiron

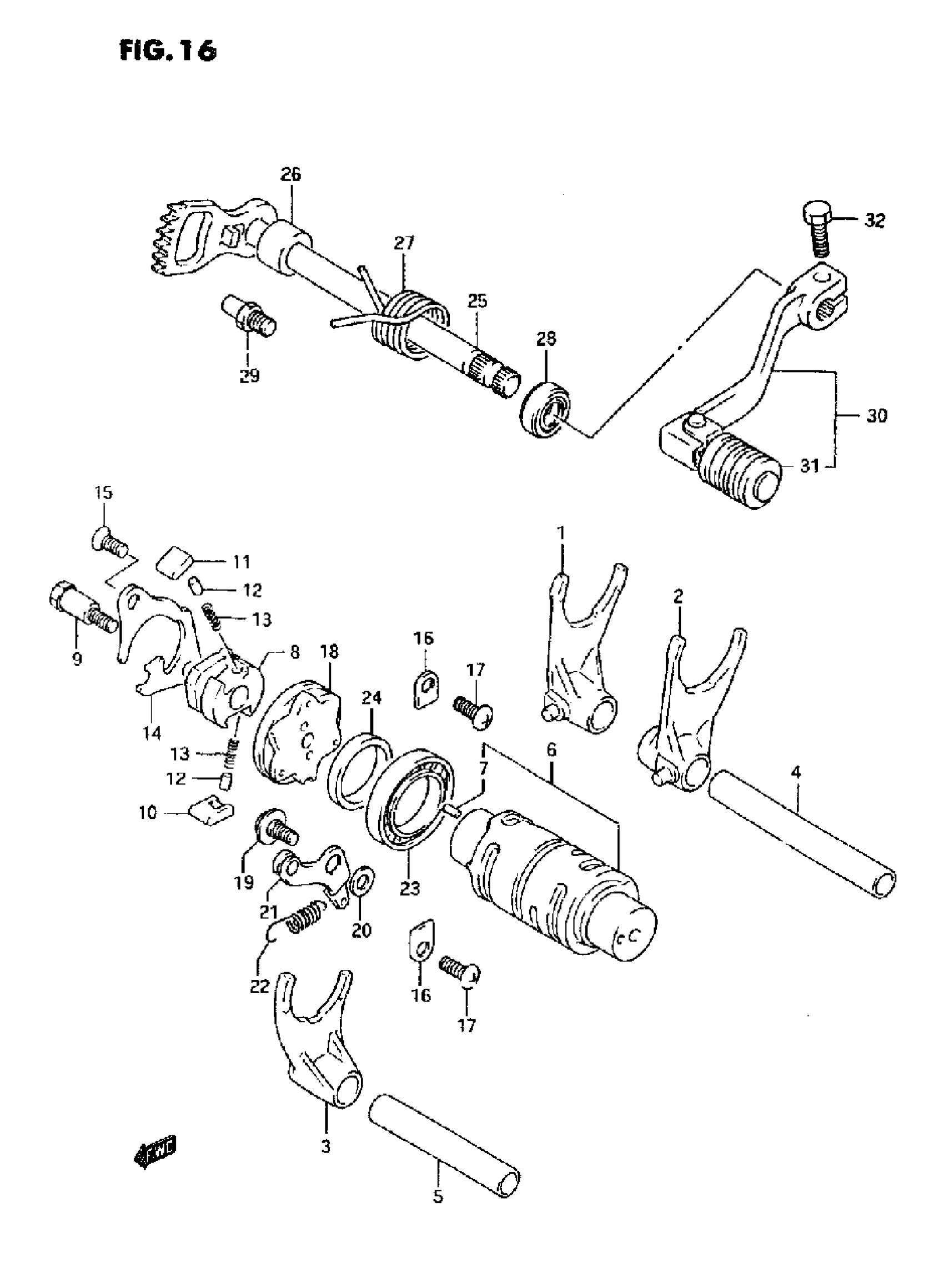

Suzuki DR350 (1995) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-14D01.

25211-14D02

$98.98

2

FORK, GEAR SHIFT NO.2 | MODEL L This part replaces 25221-14D01.

25221-14D03

$98.98

2

FORK, GEAR SHIFT NO.2 | MODEL. M/N/P/R/S/T This part replaces 25221-14D02.

25221-14D03

$98.98

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-14D01.

25231-14D02

$98.98

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

$25.08

5

SHAFT, NO.2 (L:70)

25421-14D00

Unavailable

6

CAM

25310-14D01

Unavailable

7

PIN (4X13.8)

04221-04089

$1.10

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

9

PIN, SHIFT CAM DRIVEN GEAR

25312-38A00

$5.75

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN

09261-05003

$1.69

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-14D00

Unavailable

15

SCREW | MODEL L/M/N/P/R This part replaces 02122-06128.

02122-06127

$1.83

15

SCREW | MODEL S/T This part replaces 02122-06123.

02122-0612A

$1.43

16

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.80

17

SCREW | MODEL L/M/N/P/R This part replaces 02112-06128.

02112-06127

$1.83

17

SCREW | MODEL S/T This part replaces 02112-06123.

02112-0612A

$1.43

18

PLATE, STOPPER

25380-14D01

Unavailable

19

BOLT, SHIFT CAM STOPPER

09111-06041

$2.63

20

WASHER

08211-06141

$1.61

21

STOPPER. CAM

25350-14D01

$11.84

22

SPRING

09443-09026

$4.52

23

BEARING

08113-69050

$32.64

24

WASHER (25x32x5.3)

09160-25068

Unavailable

25

SHAFT. GEAR SHIFTING | MODEL L/M/N This part replaces 25510-14D00.

25510-14D01

$110.52

25

SHAFT. GEAR SHIFTING | MODEL P/R/S/T

25510-14D01

$110.52

26

SPACER 12X20XL5.3)

09180-12068

$2.63

27

SPRING

09444-26004

$4.83

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

29

STOPPER, ARM

25671-36A00

$6.10

30

LEVER, GEAR SHIFTING | MODEL L/M/N

25600-14D04

Unavailable

30

LEVER, GEAR SHIFTING | MODEL P/R/S/T

25600-15D20

$47.78

31

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$4.63

32

BOLT, GEAR SHIFT LINK | MODEL L/M/N This part replaces 09100-06100.

01500-0620A

$1.77

32

BOLT, GEAR SHIFT LINK | MODEL P This part replaces 01107-06205.

01500-0620A

$1.77

32

BOLT, GEAR SHIFT LINK | MODEL R/S/T This part replaces 01500-06203.

01500-0620A

$1.77
