Description

Price

1

LAMP ASSY, TAIL

35710-14D00

Unavailable

2

LENS

35712-03D00

$22.22

3

SCREW This part replaces 03511-04163.

03511-0416A

$1.78

4

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

5

CUSHION

09320-09010

$2.84

6

SPACER

09180-06121

$1.98

7

WASHER (6.5X20X1.2) | MODEL L/M/N/P/R This part replaces 09160-06060.

09160-06077

$1.91

7

WASHER | MODEL S/T

09160-06077

$1.91

8

NUT | MODEL L/M/N/P/R This part replaces 08316-10063.

08316-1006B

$2.50

8

NUT | MODEL S/T This part replaces 08310-00063.

08310-0006A

$1.84

9

CLAMP, LEAD WIRE

09403-06408

$3.08

10

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

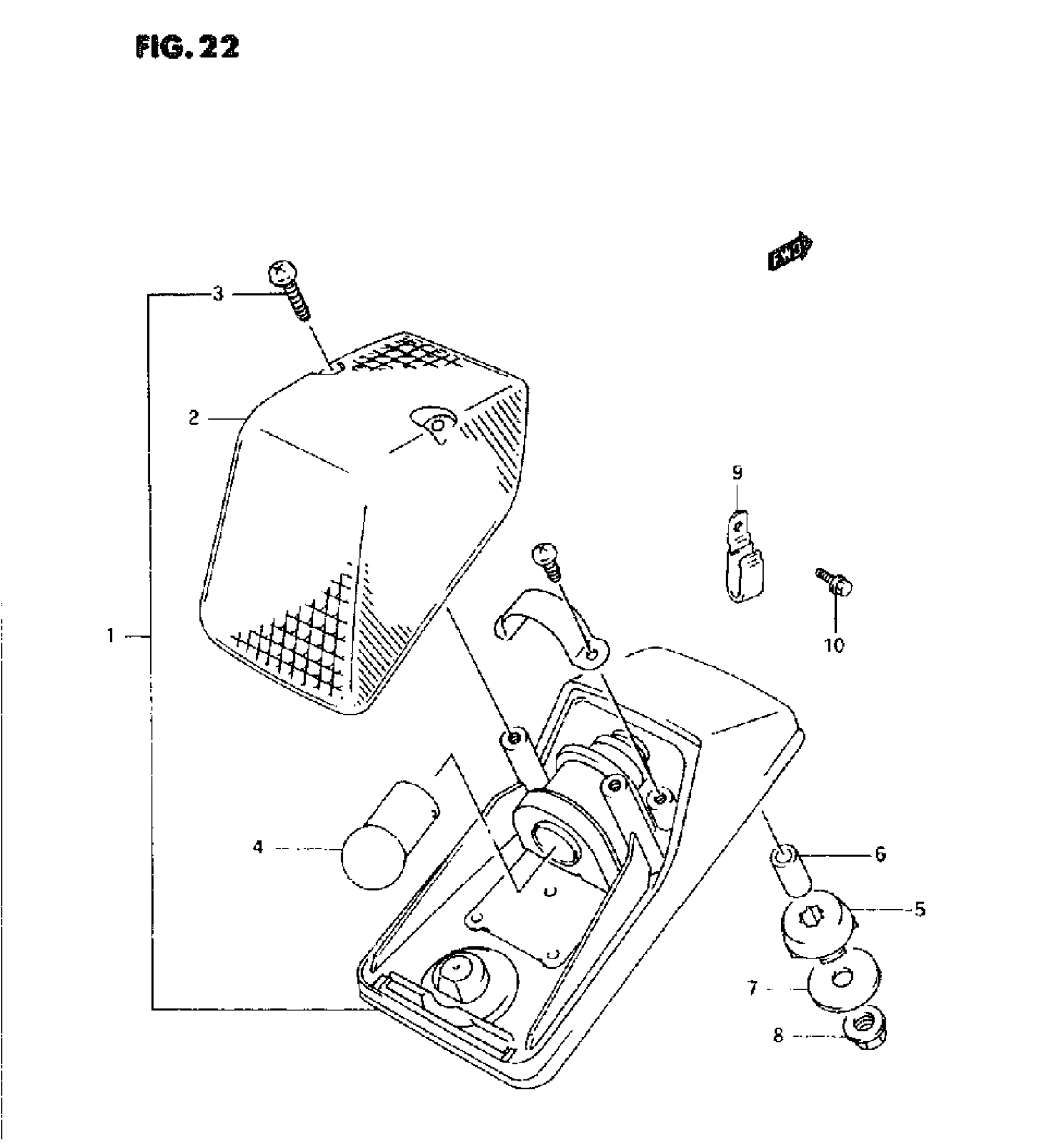

Suzuki DR350 (1995) TAIL LAMP Diagram
