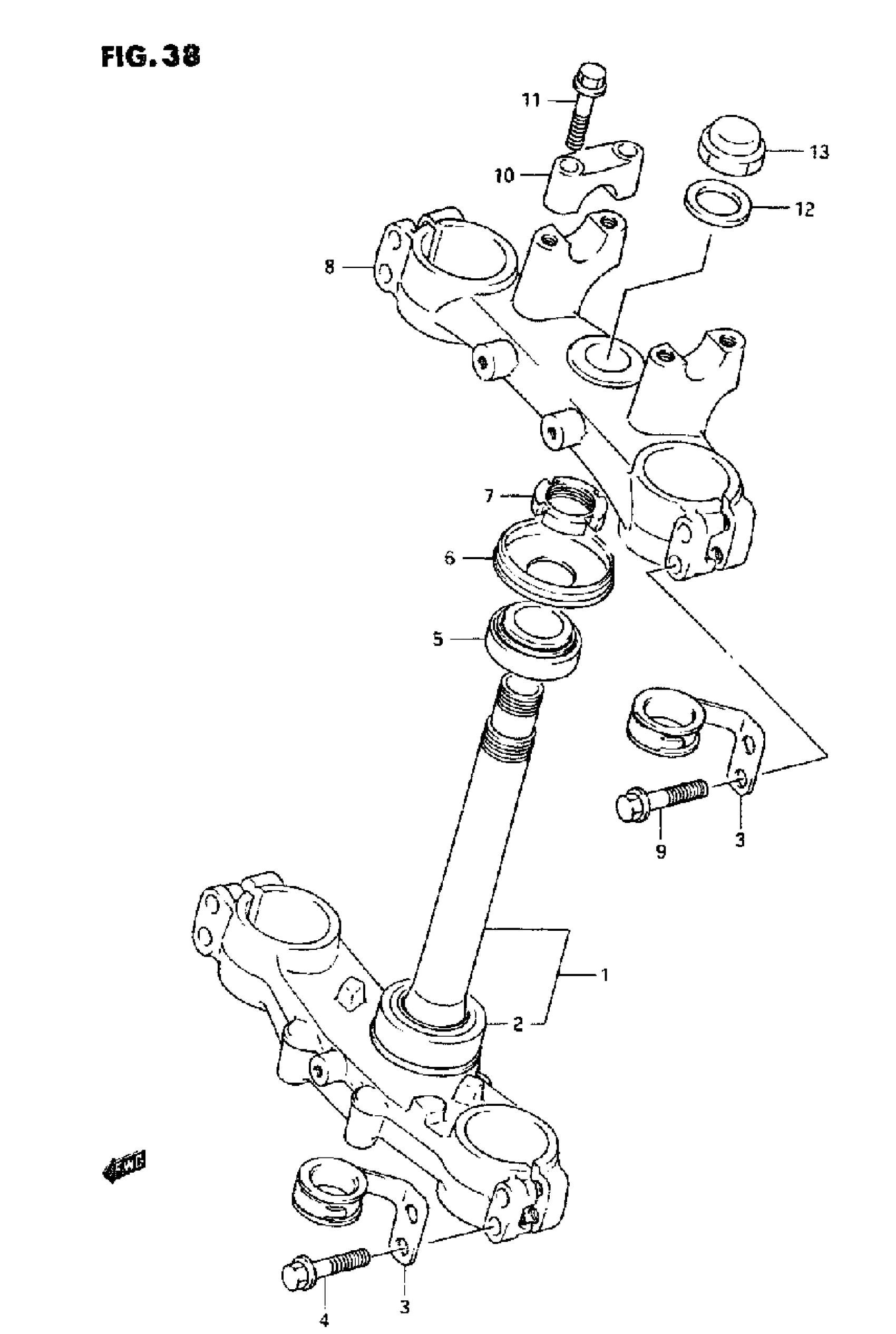

Suzuki DR350 (1995) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | MODEL L/M This part replaces 51410-14D00.

51410-14D10

Unavailable

1

STEM, STEERING | MODEL N/P/R/S/T

51410-14D10

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

GUIDE, CABLE LH

51453-03D00

Unavailable

4

BOLT | MODEL L/M/N/P/R This part replaces 01517-08407.

01550-08407

$3.42

4

BOLT, LOWER | MODEL S/T

01550-08407

$3.42

5

BEARING

09265-25008

Unavailable

6

DUST SEAL

51643-40200

$7.96

7

NUT, STEM

51631-40200

Unavailable

8

HEAD, STEERING STEM

51311-14D00

Unavailable

9

BOLT | MODEL L/M/N/P This part replaces 01517-08405.

01550-08407

$3.42

9

BOLT | MODEL R/S/T This part replaces 01550-08403.

01550-0840A

$3.05

10

HOLDER, HANDLE (BLACK)

56211-27200-291

$17.90

11

BOLT (8X35) | MODEL L/M/N/P This part replaces 01517-08355.

01550-0835A

$3.04

11

BOLT (8X35) | MODEL R/S/T This part replaces 01550-08353.

01550-0835A

$3.04

12

WASHER

51354-14D00

$12.08

13

NUT | MODEL L/M/N/P

51353-14D00

Unavailable

13

NUT | MODEL R/S/T

51353-24B00

$30.67
