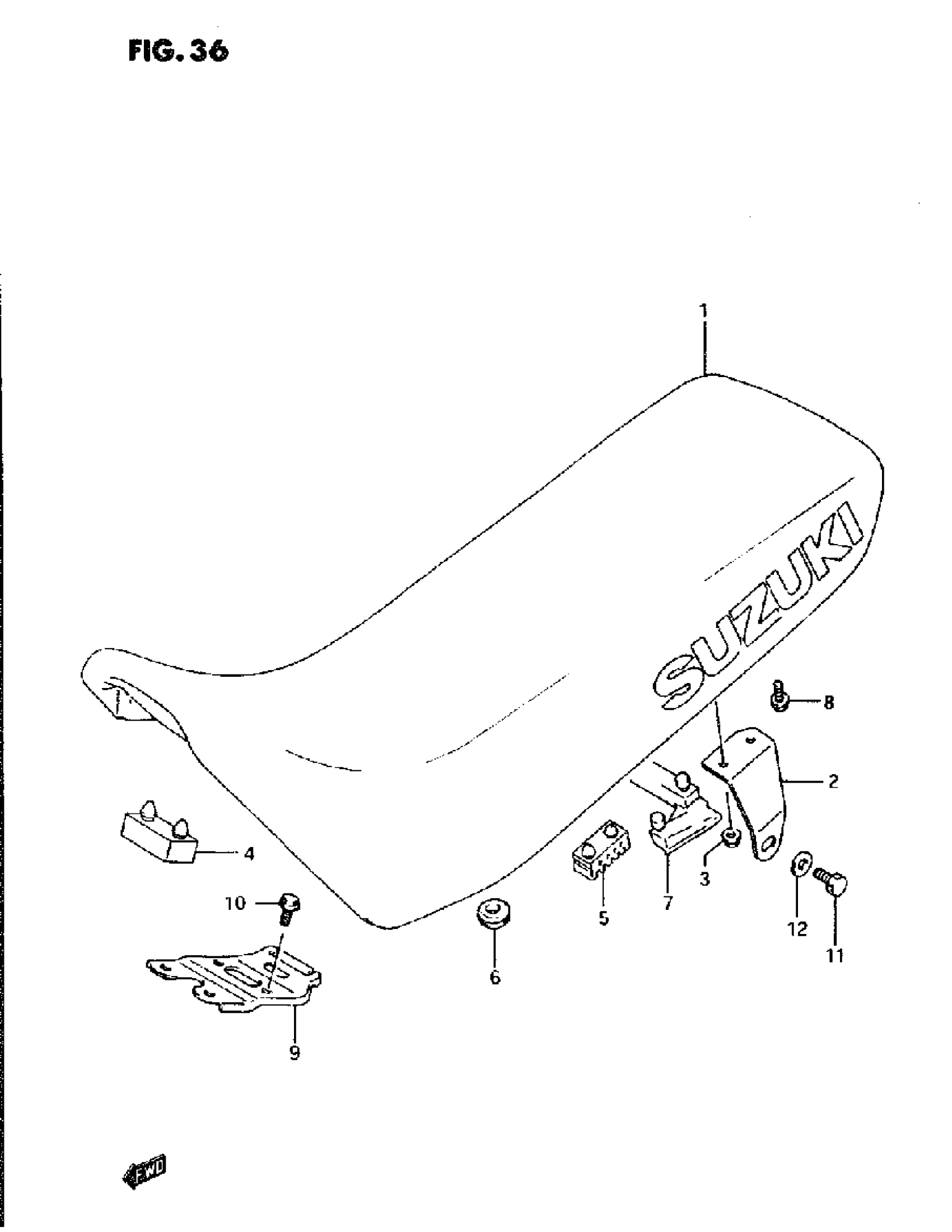

Suzuki DR350 (1995) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 45100-14D00-A38.

45100-15D00-G56

Unavailable

1

SEAT ASSY (YELLOW/BLUE) | MODEL M/P/R/S

45100-14D00-G56

Unavailable

1

SEAT ASSY (YELLOW/BLUE) | MODEL N This part replaces 45100-14D00-N12.

45100-14D00-G56

Unavailable

1

SEAT ASSY (YELLOW/BLUE) | MODEL T This part replaces 45100-14D00-A5K.

45100-14D00-G56

Unavailable

2

BRACKET, RH

45116-14D00

Unavailable

2

BRACKET. LH

45117-14D00

Unavailable

3

NUT | MODEL L/M/N/P/R This part replaces 08316-16066.

08316-1006B

$2.50

3

NUT | MODEL S/T This part replaces 08316-10063.

08316-1006B

$2.50

4

CUSHION, FRONT | MODEL L

09321-08006

$2.90

4

CUSHION | MODEL M/N/P/R/S/T

09321-08006

$2.90

5

CUSHION | MODEL L

45149-31300

$3.56

6

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

7

CUSHION, SEAT

45255-14D00

Unavailable

8

BOLT. SEAT PLUG | MODEL L/M/N/P/R

01550-06107

$2.80

8

BOLT | MODEL S/T This part replaces 01550-06103.

01550-0610A

$1.97

9

PLATE, SEAT SUPPORT FRONT

45120-14D00

Unavailable

10

BOLT (8X12) | MODEL L/M/N/P/R This part replaces 01517-08126.

01550-0812A

$2.32

10

BOLT (8X12) | MODEL S/T This part replaces 01550-08123.

01550-0812A

$2.32

11

BOLT | MODEL L/M/N/P This part replaces 01107-08125.

01500-0812A

$2.28

11

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

$2.32

12

WASHER | MODEL L/M/N/P This part replaces 08322-11084.

08322-0108A

$1.92
