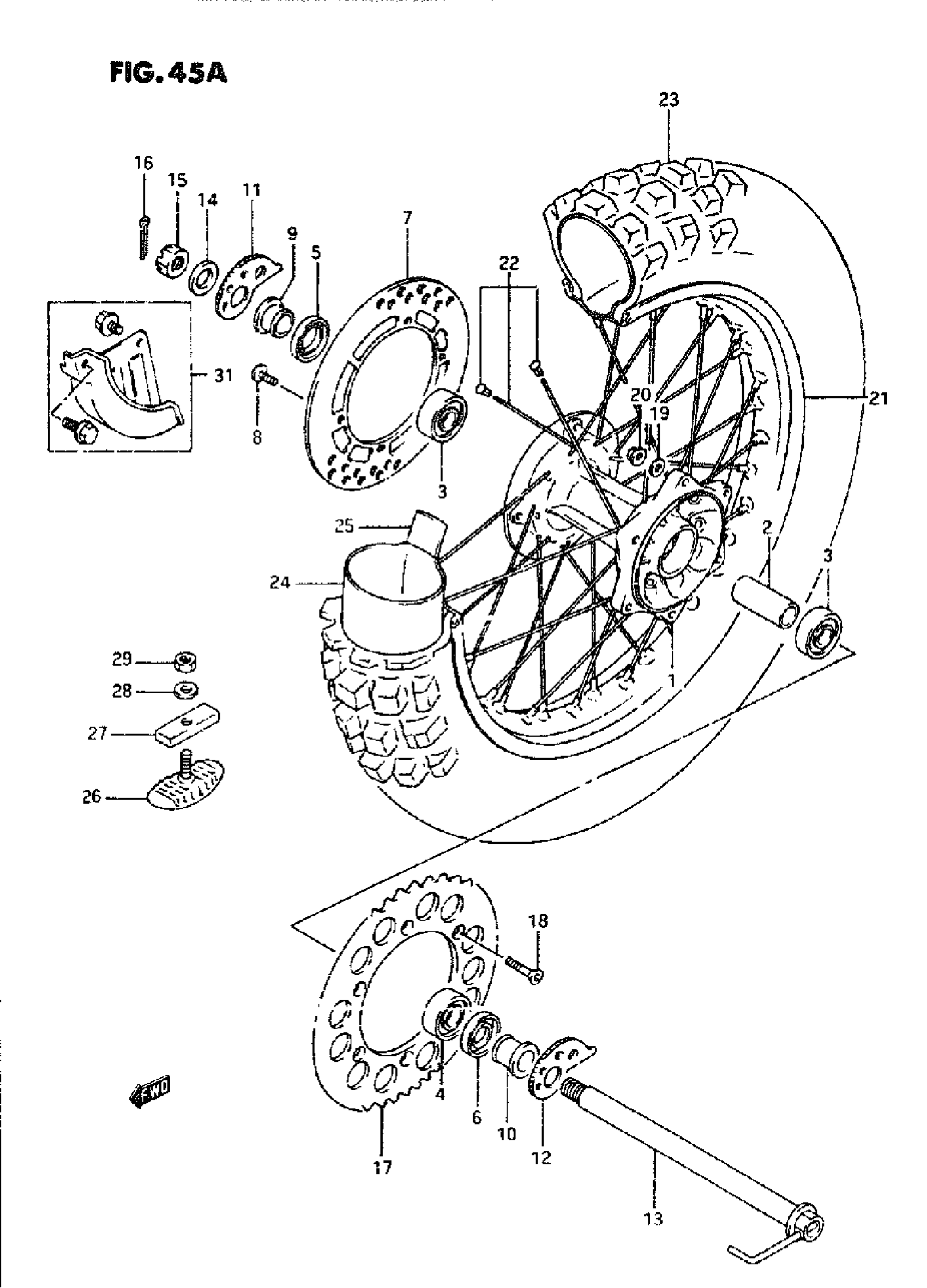

Suzuki DR350 (1995) REAR WHEEL (MODEL R/S/T) Diagram

#

Description
Price

1

HUB,REAR WHEEL | MODEL R/S This part replaces 64111-14D01.

64111-03D00

Unavailable

1

HUB, REAR WHEEL | MODEL T

64111-14D20

Unavailable

2

SPACER, BEARING

64731-14D00

Unavailable

3

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

4

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

5

SEAL, OIL RH

09282-26001

$15.42

6

OIL SEAL (26X47X5)

09283-26019

$11.61

7

DISC. REAR BRAKE | MODEL R/S

69211-03D01

Unavailable

7

DISC, REAR BRAKE | MODEL T

69211-03D10

Unavailable

8

BOLT | MODEL R/S This part replaces 09106-08091.

09106-08128

$3.23

8

BOLT | MODEL T This part replaces 59421-03A10.

09106-08155

$3.76

9

SPACER, AXLE RH

64741-14D00

$24.20

10

SPACER, AXLE L.H

64751-14D00

Unavailable

11

ADJUSTER, CHAIN RH (T:4.0)

61410-14D10

Unavailable

12

ADJUSTER, CHAIN LH (T:4.0)

61421-14D10

Unavailable

13

AXLE, REAR (L:283.5)

64710-14D50

Unavailable

14

WASHER

09160-19022

$4.90

15

NUT This part replaces 08314-40183.

08314-4018A

$4.64

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPROCKET. REAR (NT:44)

64511-08D50

Unavailable

17

SPROCKET, REAR (NT:43) | OPT, OFF ROAD USE ONLY ALUMINIUM

64511-08D40

Unavailable

17

SPROCKET, REAR (NT:45) | OPT, OFF ROAD USE ONLY ALIMINIUM

64511-08D60

Unavailable

17

SPROCKET, REAR (NT:43) | OPT, OFF ROAD USE ONLY STEEL

64511-14D70

Unavailable

17

SPROCKET, REAR (NT:44) | OPT.0FF ROAD USE ONLY STEEL

64511-14D80

$66.92

17

SPROCKET, REAR (NT, 45) | OPT, OFF ROAD USE ONLY STEEL

64511-14D90

Unavailable

18

SCREW

09120-08004

$2.40

19

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

20

NUT

08319-31087

$2.32

21

RIM, REAR WHEEL (2.15XLO)

65311-14D00

$426.63

22

SPOKE ASSY, REAR WHEEL

65320-14D00

$108.57

23

TIRE, REAR (110/100-18) BRIDGESTONE | TIRE,

65110-14D00

Unavailable

24

TUBE ASSY, WHEEL INNER

65200-40430

Unavailable

25

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

26

STOPPER, BEAD | ->65270-28EOO This part replaces 65270-14200.

65270-28E00

$58.75

26

STOPPER, BEAD

65270-28E00

$58.75

27

CUSHION, STOPPER

65271-27C00

$7.42

28

WASHER | MODEL R

08322-01087

$2.13

28

WASHER | MODEL S/T This part replaces 08322-01083.

08322-0108A

$1.92

29

NUT | MODEL R

08310-00087

$2.13

29

NUT | MODEL S/T This part replaces 08310-00083.

08310-0008A

$1.84

30

COVER SET, REAR DISC | OPT, OFF ROAD USE ONLY

69200-28C00

$28.44
