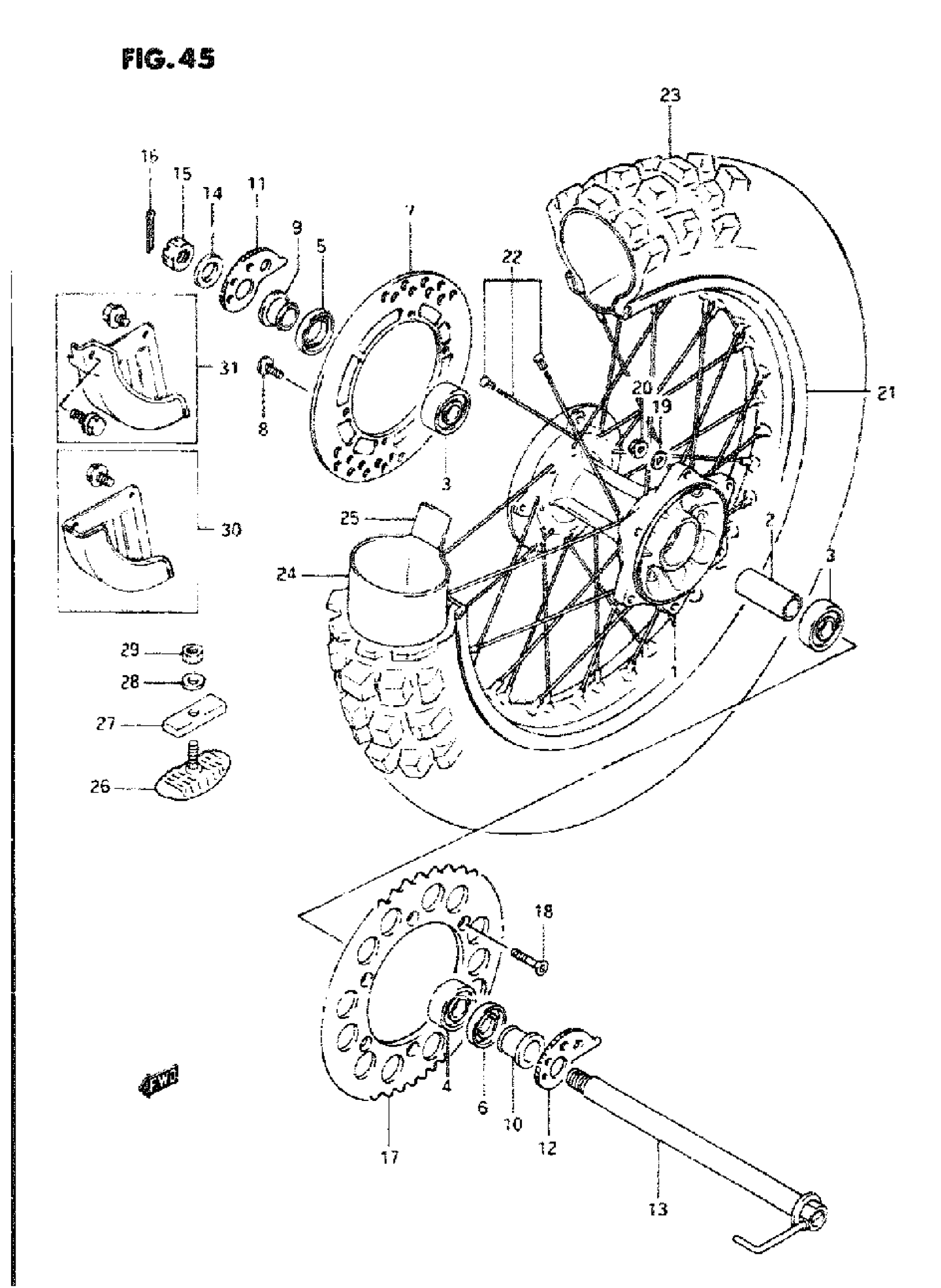

Suzuki DR350 (1995) REAR WHEEL (MODEL L/M/N/P) Diagram

#

Description
Price

1

HUB,REAR WHEEL This part replaces 64111-14D00.

64111-03D00

Unavailable

2

SPACER, BEARING

64731-14D00

Unavailable

3

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

4

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

5

SEAL, OIL RH

09282-26001

$15.42

6

OIL SEAL (26X47X5)

09283-26019

$11.61

7

DISC, REAR BRAKE

69211-03D01

Unavailable

8

BOLT | MODEL L/M/N ->09106-08111 This part replaces 09106-08091.

09106-08128

$3.23

8

BOLT | MODEL P This part replaces 09106-08111.

09106-08128

$3.23

9

SPACER, AXLE RH

64741-14D00

$24.20

10

SPACER, AXLE L.H

64751-14D00

Unavailable

11

ADJUSTER, CHAIN, LH | MODEL L This part replaces 61410-14D00.

61420-05D00

Unavailable

11

ADJUSTER, CHAIN RH (T:4.0) | MODEL M/N/P

61410-14D10

Unavailable

12

ADJUSTER, CHAIN LH (T:3.2) | MODEL L

61421-14D00

Unavailable

12

ADJUSTER, CHAIN LH (7:4.0) | MODEL M/N/P

61421-14D10

Unavailable

13

AXLE, REAR (L:282) | MODEL L

64710-14D20

Unavailable

13

AXLE. REAR (L:283.5) | MODEL M/N/P

64710-14D50

Unavailable

14

WASHER

09160-19022

$4.90

15

NUT This part replaces 08314-41188.

08314-40187

$5.64

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPROCKET, REAR (NT:47)

64511-14D00

Unavailable

17

SPROCKET, REAR (NT:46) | OPT.0FF ROAD USE ONLY ALIMINIUM

64511-14D40

Unavailable

17

SPROCKET, REAR (NT:48) | OPT.0FF ROAD USE ONLY ALUMINIUM

64511-14D60

Unavailable

17

NO DESCRIPTION AVAILABLE | OPT, OFF ROAD USE ONLY STEEL This part replaces 64511-14D30.

64511-14D31

Unavailable

17

SPROCKET, REAR (NT:47) | OPT.0FF ROAD USE ONLY STEEL ->64511-14D60 This part replaces 64511-14D20.

64511-14D00

Unavailable

17

SPROCKET, REAR (NT:48) | OPT, OFF ROAD USE ONLY STEEL ->64511-14D60 This part replaces 64511-14D50.

64511-14D60

Unavailable

18

SCREW

09120-08004

$2.40

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

NUT

08319-31087

$2.32

21

RIM. REAR WHEEL (2.15XL8)

65311-14D00

$426.63

22

SPOKE ASSY, REAR WHEEL

65320-14D00

$108.57

23

TIRE, REAR (110/100-18) BRIDGESTONE | TIRE,TIRE,

65110-14D00

Unavailable

24

TUBE ASSY, WHEEL INNER

65200-40430

Unavailable

25

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

26

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

27

CUSHION, STOPPER

65271-27C00

$7.42

28

WASHER This part replaces 08322-11088.

08322-01087

$2.13

29

NUT This part replaces 08310-22088.

08310-00087

$2.13

30

COVER SET, REAR DISC | MODEL L/M FOR 69100-27CIO OPT, OFF ROAD USE ONLY

69200-27C00

Unavailable

31

COVER SET, REAR DISC | MODEL N/P FOR 69100-14DOO OPT, OFF ROAD USE ONLY

69200-28C00

$28.44
