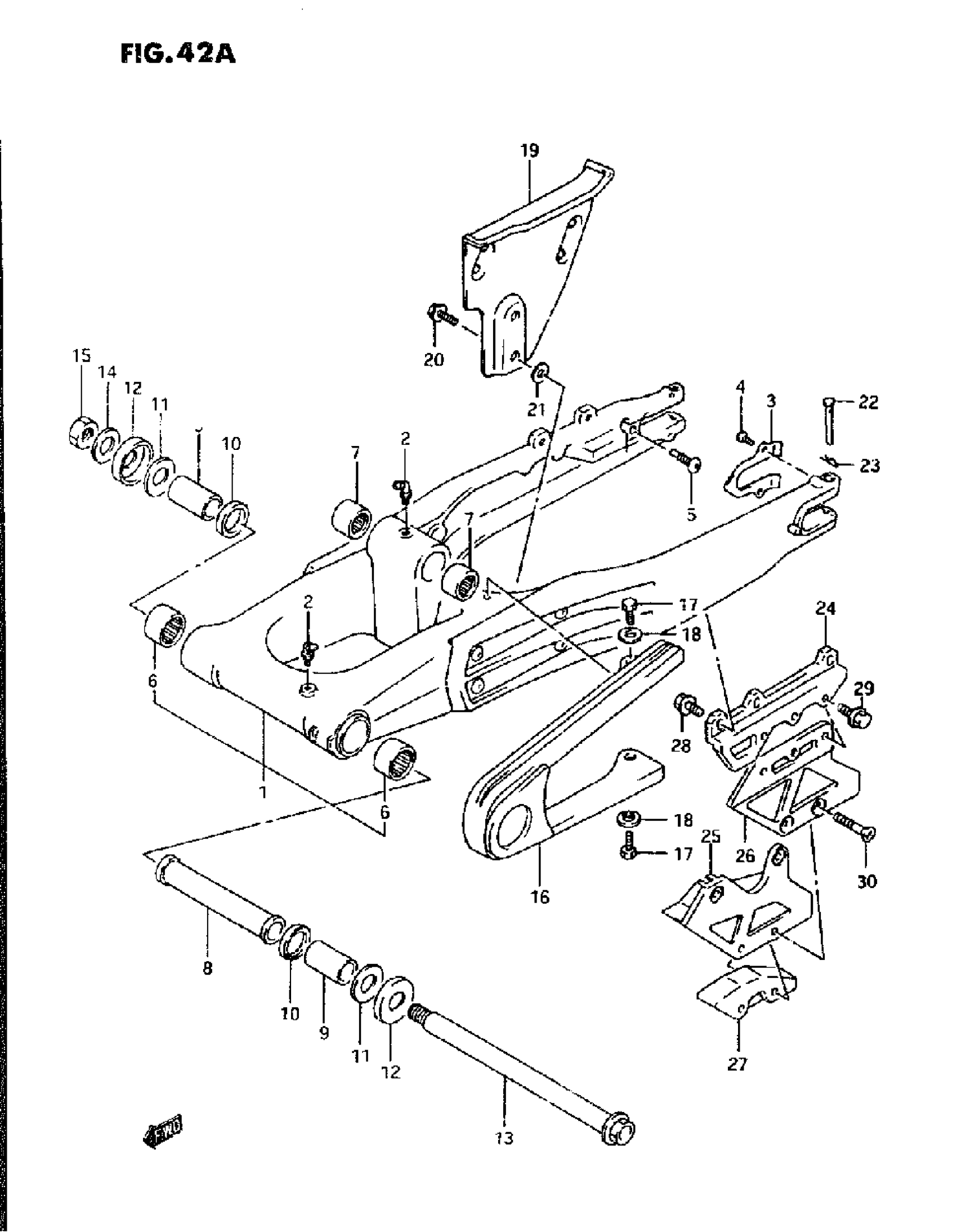

Suzuki DR350 (1995) REAR SWINGING ARM (MODEL R/S/T) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-14D50

Unavailable

2

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.07

3

PLATE, REAR

61128-14D00

Unavailable

4

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.35

5

SCREW

09139-10001

Unavailable

6

BEARING, PIVOT

09263-22017

$20.38

7

BEARING

09263-20071

$23.72

8

SPACER, PIVOT CENTER

09180-17097

Unavailable

9

SPACER, BEARING

61251-14D00

$31.55

10

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

11

WASHER

08211-17341

$2.53

12

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$6.42

13

SHAFT, PIVOT

61211-14D00

Unavailable

14

WASHER This part replaces 08322-01163.

08322-0116A

$1.86

15

NUT

09159-16007

$11.37

16

BUFFER,CHAIN TO This part replaces 61273-14D00.

61273-14D01

$38.95

17

BOLT This part replaces 01500-06163.

01500-0616A

$1.77

18

WASHER

09169-06057

$2.92

19

GUARD, CHAIN

61310-14D10

Unavailable

20

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

21

WASHER This part replaces 09160-06115.

09160-06131

$2.53

22

PLN EAR AXLE

09200-06065

Unavailable

23

PIN

09385-06012

$1.89

24

BRACKET, CHAIN GUIDE

61154-14D10

Unavailable

25

GUIDE. CHAIN

61341-27C20

$50.88

26

PLATE, CHAIN GUIDE, OUTER

61342-28E00

$67.93

27

DEFENSE, CHAIN GUIDE

61348-27C20

$35.32

28

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

29

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

30

SCREW, UNDER

09126-06013

$2.81
