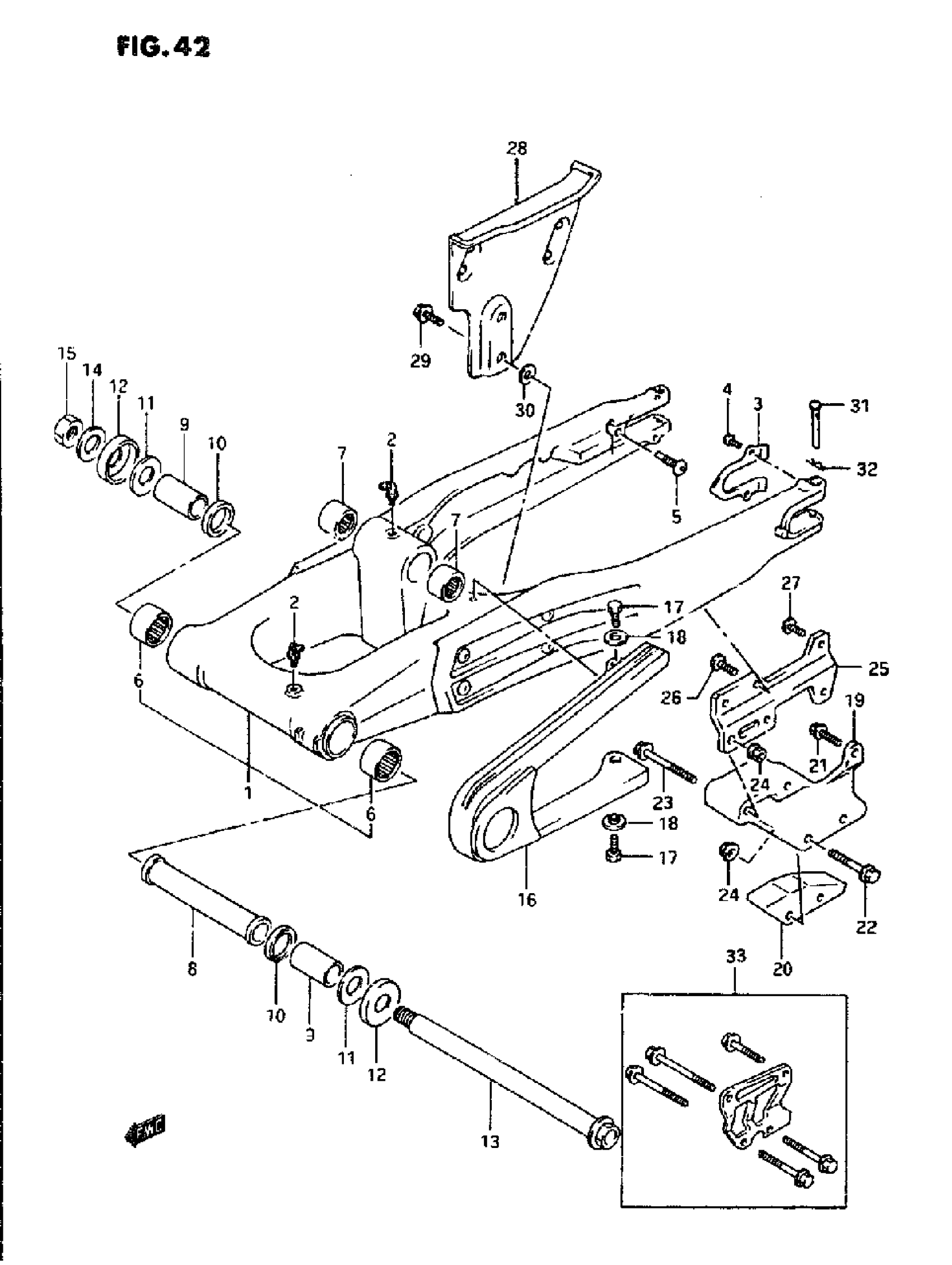

Suzuki DR350 (1995) REAR SWINGING ARM (MODEL L/M/N/P) Diagram

SWINGING ARM ASSY, REAR This part replaces 61000-14D01.

61000-14D50

Unavailable

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

PLATE. REAR

61128-14D00

Unavailable

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.15

SCREW

09139-10001

Unavailable

BEARING, PIVOT

09263-22017

$22.58

BEARING

09263-20071

$25.92

SPACER, PIVOT CENTER

09180-17097

Unavailable

SPACER. BEARING

61251-14D00

$27.97

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

WASHER

08211-17341

$2.50

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

SHAFT, PIVOT

61211-14D00

Unavailable

WASHER This part replaces 08322-11168.

08322-01167

$2.10

NUT

09159-16007

$12.61

BUFFER,CHAIN TO This part replaces 61273-14D00.

61273-14D01

$41.37

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

WASHER

09169-06057

$3.18

GUIDE, CHAIN

61341-27C00

Unavailable

DEFENSE, CHAIN GUIDE This part replaces 61348-01B30.

61348-27C20

$32.18

BOLT This part replaces 01517-06257.

01550-06257

$2.30

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

BOLT This part replaces 01517-06557.

01550-06557

$3.30

NUT

08319-31067

$2.03

BRACKET CHAIN GUIDE

61154-14D00

$63.80

SCREW(6X16) | MODEL L/M/N This part replaces 09139-06024.

09139-06237

$2.38

BOLT | MODEL P This part replaces 01517-06167.

01550-06167

$2.30

SCREW, BRACKET REAR | MODEL L/M/N

09139-06062

$3.03

BOLT | MODEL P This part replaces 01517-06128.

01550-06127

$2.30

GUARD, CHAIN

61310-14D10

Unavailable

BOLT This part replaces 01517-06163.

01550-0616A

$1.97

WASHER This part replaces 09160-06115.

09160-06131

$2.50

PIN, REAR AXLE

09200-06065

Unavailable

PIN

09385-06012

$1.89

PLATE SET, CHAIN GUIDE | OPT, OFF ROAD USE ONLY

61300-14D00

Unavailable
