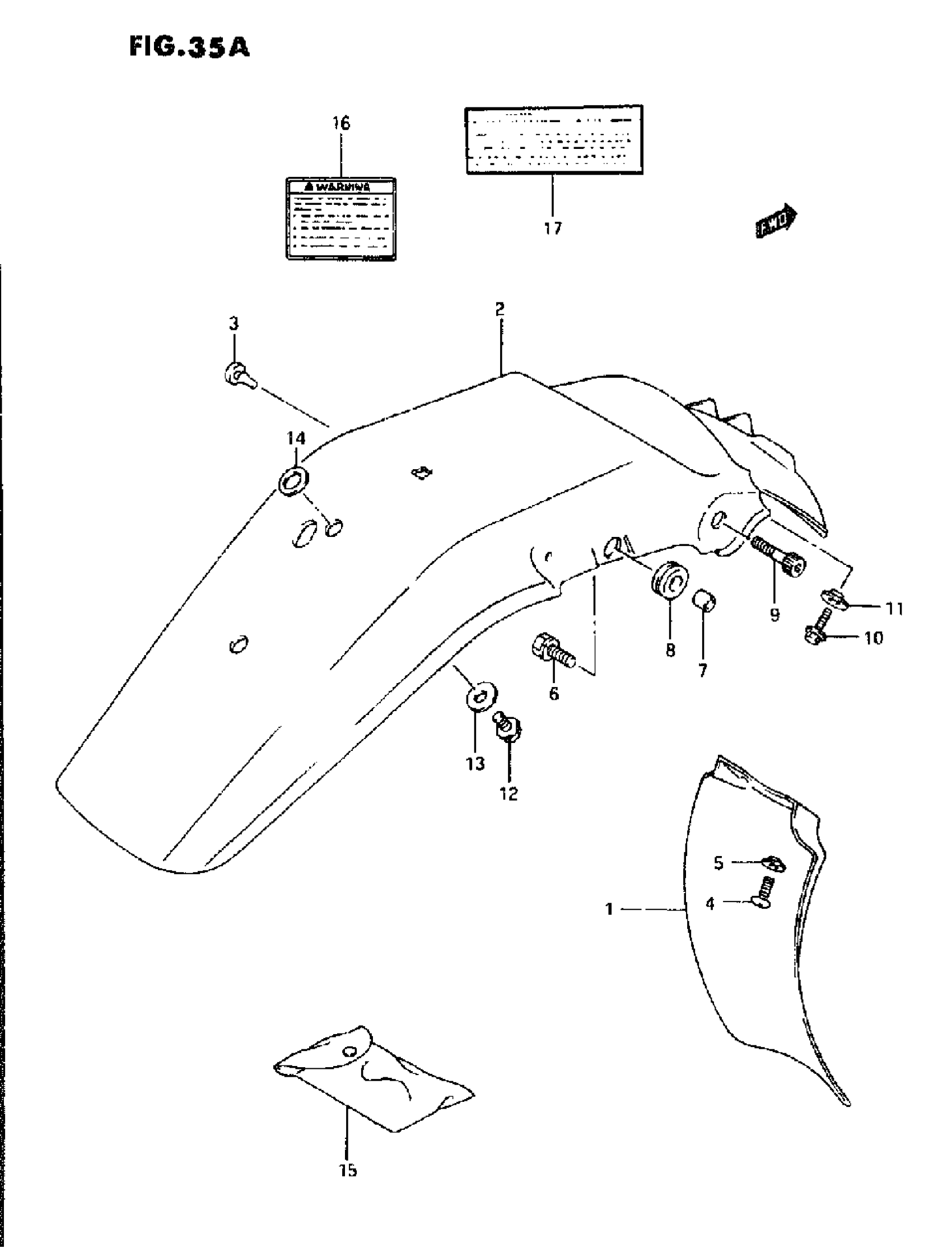

Suzuki DR350 (1995) REAR FENDER - LABEL (MODEL R/S/T) Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-14D00

Unavailable

2

BODY, REAR FENDER REAR (WHITE)

63113-14D50-30H

Unavailable

3

CUSHION. FENDER SIDE

63159-14D00

Unavailable

4

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

5

WASHER This part replaces 09169-06045.

09169-06055

$2.27

6

BOLT This part replaces 01570-08253.

01570-0825A

$3.15

7

SPACER This part replaces 09180-08030.

09180-08187

$2.65

8

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

9

BOLT, REAR FRONT

09106-08105

$3.78

10

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

11

WASHER

09169-06038

Unavailable

12

BOLT This part replaces 01570-08163.

01570-0816A

$3.03

13

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

14

WASHER This part replaces 09160-14032.

09160-14059

$2.65

15

TOOL ASSY This part replaces 09800-21034.

09800-21084

$41.57

16

LABEL,GENERAL W | MODEL R/S This part replaces 68319-14D00.

68319-33E02

$7.25

16

LABEL,GENERAL W | MODEL T This part replaces 68319-33E00.

68319-33E02

$7.25

17

LABEL,MANUAL NOTICE This part replaces 68353-26E01.

68353-26E03

$5.05

18

MANUAL. OWNER'S | MODEL R

99011-14D64-03A

Unavailable

18

MANUAL, OWNER'S | MODEL S

99011-14D65-03A

Unavailable

18

MANUAL, OWNER'S | MODEL T

99011-14D66-03A

Unavailable
