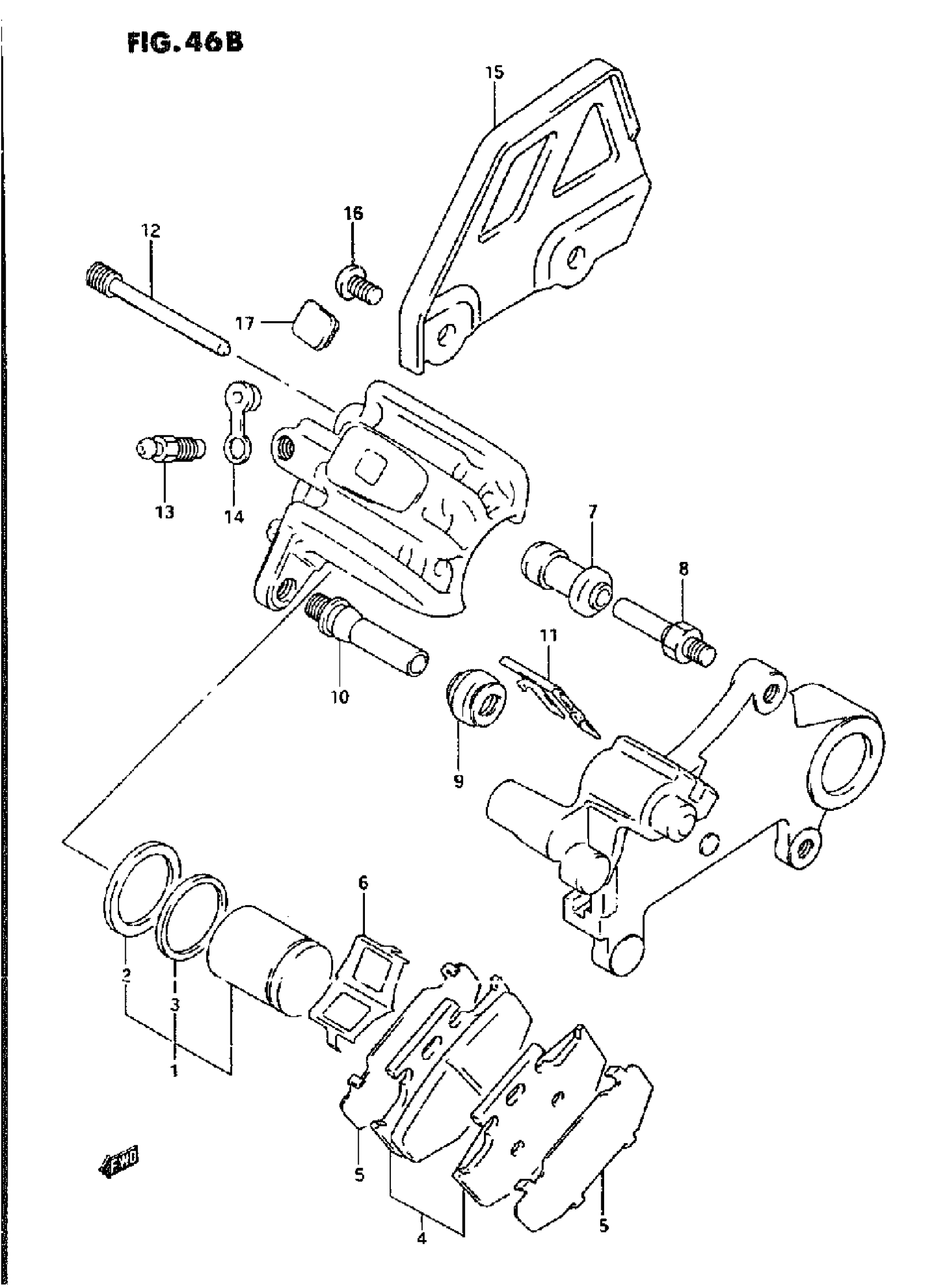

Suzuki DR350 (1995) REAR CALIPER (MODEL R/S/T) Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-14D10

Unavailable

1

PISTON SET

69100-27830

Unavailable

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$9.03

3

SEAL, DUST

59108-00B20

Unavailable

4

PAD SET | ->69140-43DOO

69100-43880

Unavailable

5

SHIM

69132-28C00

$9.47

6

SPRING

59315-27C10

$11.68

7

BOOT

59386-13A00

$7.95

8

PLN

59382-14500

$8.95

9

BOOT

59303-14500

$5.52

10

PIN

59305-27C00

$23.48

11

RETAINER

69113-43D00

$8.83

12

PIN

59345-14600

$16.25

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

GUARD, CALIPER

69725-14D00

Unavailable

16

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

17

COVER, CALIPER BODY

69171-14D00

Unavailable
