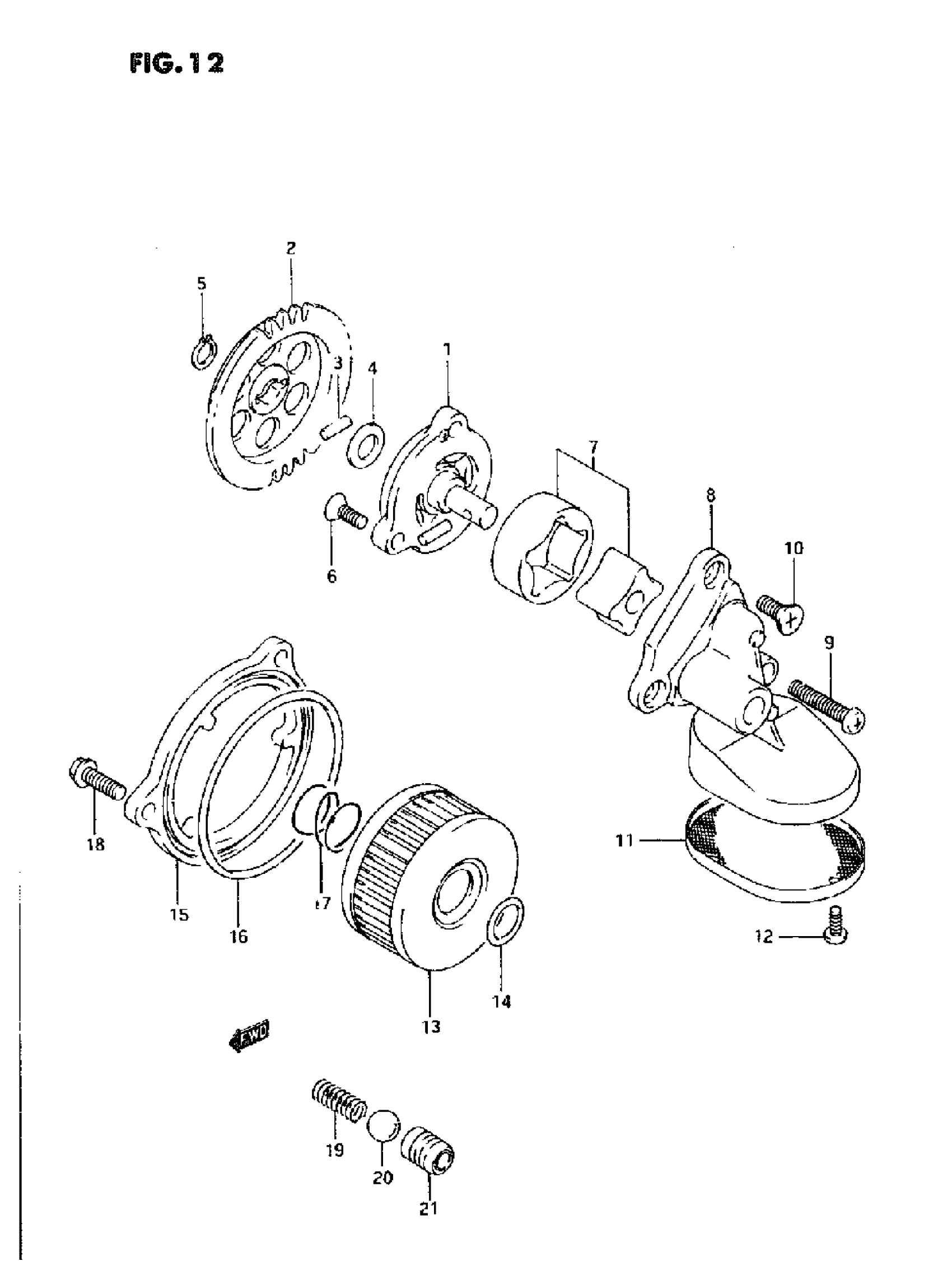

Suzuki DR350 (1995) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL N0-1

16400-14D01

$191.15

2

GEAR, DRIVEN (NT:35) | MODEL L/M This part replaces 16331-14D00.

16331-14D02

$48.37

2

GEAR, DRIVEN (NT:35) | MODEL N/P/R/S/T This part replaces 16331-14D01.

16331-14D02

$48.37

3

PIN

09261-04009

$1.56

4

WASHER

08221-10185

$2.15

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

6

SCREW | MODEL L/M/N/P/R This part replaces 02122-06166.

02122-0616A

$1.49

6

SCREW | MODEL S/T This part replaces 02122-06163.

02122-0616A

$1.49

7

ROTOR SET, OIL PUMP

16410-14D00

$45.89

8

COVER, OIL PUMP NO.2

16431-14D01

$84.38

9

SCREW, SEAT SUPPORT BRK | MODEL L/M/N/P/R This part replaces 02112-06306.

02112-0630A

$1.78

9

SCREW, SEAT SUPPORT BRK | MODEL S/T This part replaces 02112-06303.

02112-0630A

$1.78

10

SCREW | MODEL L/M/N/P/R This part replaces 02122-06166.

02122-0616A

$1.49

10

SCREW | MODEL S/T This part replaces 02122-06163.

02122-0616A

$1.49

11

STRAINER, ENGINE OIL

16520-14D00

$11.83

12

SCREW, THROTTLE | MODEL L/M/N/P/R This part replaces 02112-05106.

02112-0510A

$1.49

12

SCREW, THROTTLE | MODEL S/T This part replaces 02112-05103.

02112-0510A

$1.49

13

FILTER, ENGINE OIL

16510-38240

$6.06

14

0 RING (D:2.4, 1D:15.8) | MODEL L/M/N/P/R

09280-16005

$2.23

14

O-RING (D:2.4,ID:15.8) | MODEL S/T

09280-15007

$1.70

15

CAP,OIL FILTER

16512-14D00

$36.17

16

.O RING (D:2.4,ID:73)

09280-72001

$4.94

17

SPRING | MODEL L/N/N/P/R

09440-21004

$2.75

17

SPRING | MODEL S/T

09440-21006

$2.03

18

BOLT | MODEL L/M/N/P/R

01547-06207

$2.01

18

..BOLT | MODEL S/T This part replaces 01547-06203.

01547-0620B

$2.45

19

SPRING | MODEL P/R/S/T

09440-07073

$4.50

20

BALL | MODEL P/R/S/T

06111-12004

$1.93

21

SEAT, OIL CHECK VALVE | MODEL P/R/S/T

16442-14D00

$35.45
