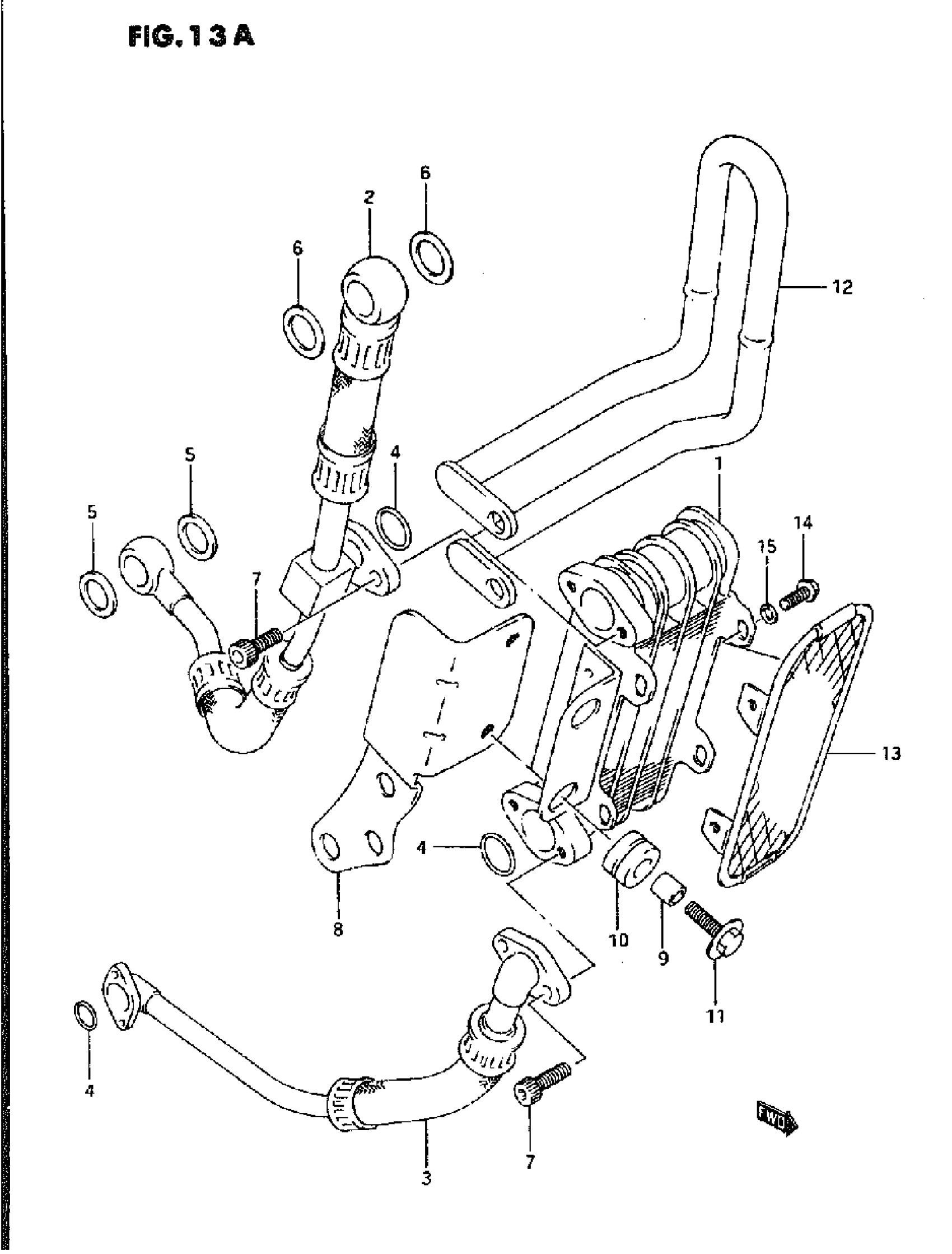

Suzuki DR350 (1995) OIL COOLER (OPTIONAL) Diagram

#

Description
Price

1

COOLER SET, OIL

16000-14820

Unavailable

1

OIL COOLER

16600-14D00

Unavailable

2

HOSE, OIL COOLER, UPPER

16450-14D00

Unavailable

3

HOSE, OIL COOLER, LOWER

16490-14D00

Unavailable

4

0 RING (ID:12.3, 0:2.4)

09280-12008

$2.76

5

GASKET (12XL6.5XL.5) | MODEL L/M/N/P

09168-12010

$3.07

5

GASKET (12XL7.0XL.0) | MODEL R/S/T

09168-12017

$1.95

6

GASKET (16X22X2)

09168-16003

$1.91

7

BOLT | MODEL L/M/N/P This part replaces 07110-06165.

07130-0616B

$2.39

7

BOLT | MODEL R/S/T This part replaces 07130-06163.

07130-0616B

$2.39

8

BRACKET

16620-14D00

Unavailable

9

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

10

CUSHION

09320-10015

$2.54

11

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

12

GUARD, OIL COOLER

16640-14D00

Unavailable

13

BUMPER, OIL COOLER

16650-14D00

Unavailable

14

BOLT | MODEL L/M/N/P This part replaces 01547-05105.

01547-0510B

$2.97

14

BOLT | MODEL R/S/T This part replaces 01547-05103.

01547-0510B

$2.97

15

LOCK WASHER | MODEL L/M/N/P This part replaces 08321-21055.

08321-0105A

$1.84

15

LOCK WASHER | MODEL R/S/T This part replaces 08321-01053.

08321-0105A

$1.84
