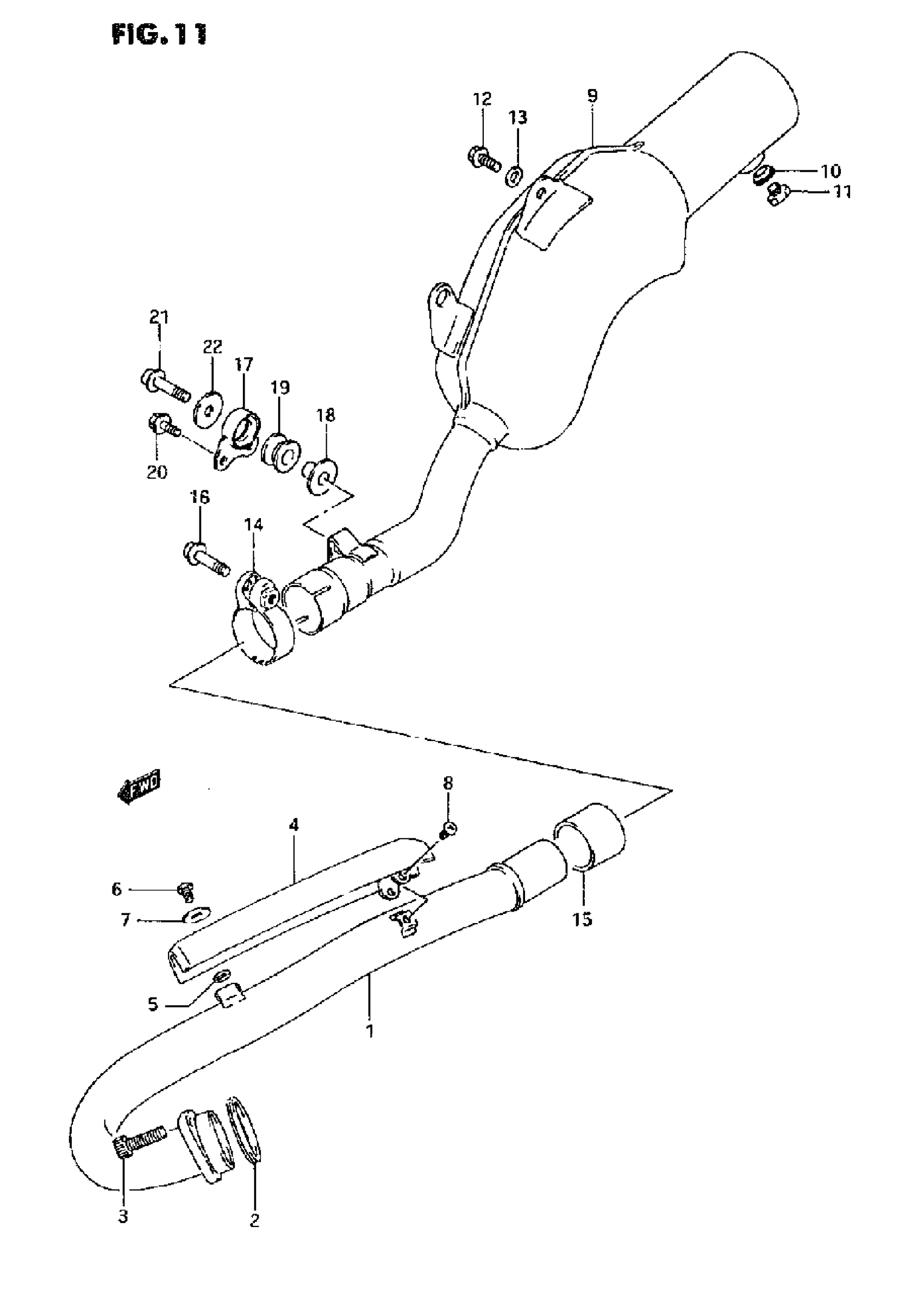

Suzuki DR350 (1995) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | MODEL L/M This part replaces 14150-14D01.

14150-14D20

Unavailable

1

PIPE, EXHAUST | MODEL N/P/R/S

14150-14D20

Unavailable

1

PIPE, EXHAUST | MODEL T

14150-14E00

Unavailable

2

.GASKET,EXHAUST | MODEL L/M/N/P

14181-18C00

$7.22

2

GASKET | MODEL R/S/T

14181-40C00

$7.22

3

BOLT | MODEL L/M/N/P This part replaces 07110-08255.

07130-0825B

$3.37

3

BOLT | MODEL R

07130-08257

$3.43

3

BOLT | MODEL S/T This part replaces 07130-08253.

07130-0825B

$3.37

4

COVER, EXHAUST PIPE | MODEL L/M This part replaces 14180-14D01.

14180-14D10

$43.27

4

COVER, EXHAUST PIPE | MODEL N/P/R/S/T

14180-14D10

$43.27

5

GASKET

09168-06120

$2.92

6

SCREW, MUFFLER COVER | MODEL L/M This part replaces 09139-06041.

09139-06076

$2.42

6

SCREW (6XLO) | MODEL N/P/R/S/T

09139-06076

$2.42

7

WASHER (6.5XL8XL)

09160-06056

$1.72

8

SCREW | MODEL L/M/N/P This part replaces 02142-05084.

02142-0508A

$1.49

8

SCREW | MODEL R/S/T This part replaces 02142-05083.

02142-0508A

$1.49

9

NO DESCRIPTION AVAILABLE | -E.NO.105617 This part replaces 14310-14D00-H01.

14310-14D44-H01

Unavailable

9

NO DESCRIPTION AVAILABLE | E.NO.105618- This part replaces 14310-14D03-H01.

14310-14D44-H01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 14310-14D40-H01.

14310-14D44-H01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 14310-14D42-H01.

14310-14D44-H01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL S/T This part replaces 14310-14D43-H01.

14310-14D44-H01

Unavailable

10

GASKET

09168-12002

$1.59

11

PLUG, DRAIN

09247-12103

$2.84

12

BOLT (8X2O) | MODEL L/M/N

09106-08107

$2.81

12

BOLT (8X2O) | MODEL P/R/S/T

09103-08286

$3.78

13

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

14

CLAMP | ~E.NO.105617

14469-07A11

Unavailable

15

CONNECTOR | MODEL L/M/N/P/R/S

14771-14D00

$23.87

15

CONNECTOR, MUF | MODEL T This part replaces 14771-13E00.

14771-13E10

$15.57

16

BOLT | MODEL L/M/N This part replaces 07120-08355.

07120-0835B

$4.58

16

BOLT (8X35) | MODEL P This part replaces 01517-08355.

01550-0835A

$3.04

16

BOLT (8X35) | MODEL R/S/T This part replaces 01550-08353.

01550-0835A

$3.04

17

DAMPER, JOINT | MODEL L/M/N/P/R This part replaces 14770-14D00.

14770-14D01

$25.33

17

DAMPER, JOINT | MODEL S/T

14770-14D01

$25.33

18

SPACER

09180-08151

$5.18

19

CUSHION

09320-12043

$7.98

20

BOLT, CLAMP | MODEL L/M This part replaces 01517-06125.

01550-0612A

$1.97

20

BOLT (6X12) | MODEL N/P/R/S This part replaces 09103-06149.

09103-06285

$1.97

20

BOLT (6X12) | MODEL T This part replaces 09103-06083.

09103-06285

$1.97

21

BOLT, EXHAUST SUPPORT | MODEL L/M/N This part replaces 09106-08109.

09106-08133

$3.89

21

BOLT (8X35) | MODEL P/R/S/T This part replaces 09103-08287.

09103-08357

$4.17

22

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35
