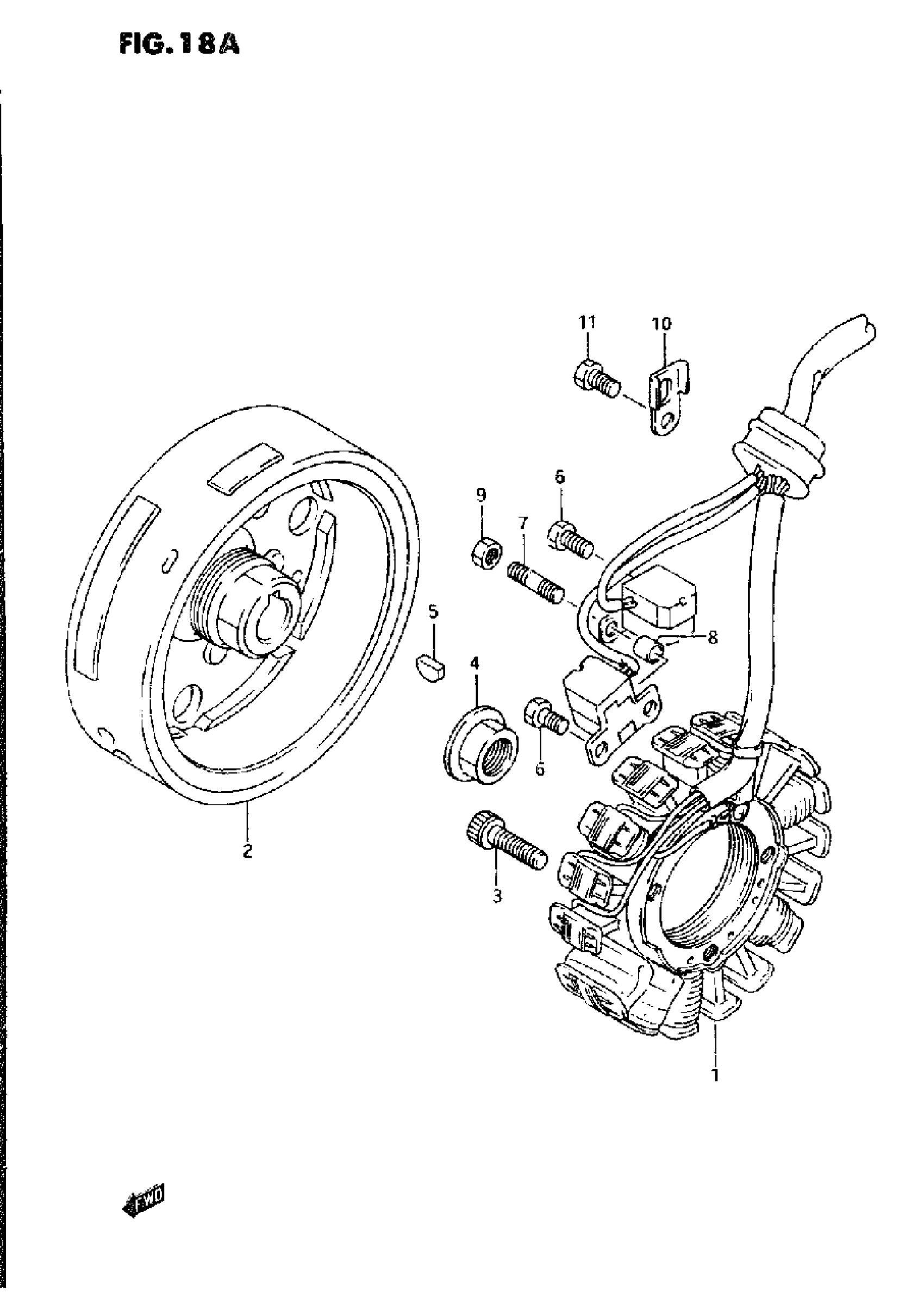

Suzuki DR350 (1995) MAGNETO (MODEL P/R/S/T) Diagram

#

Description

Price

1

STATOR ASSY

32101-14D20

Unavailable

2

ROTOR

32102-14D30

Unavailable

3

BOLT | MODEL L/M/N/P This part replaces 07110-06257.

07130-06257

$3.16

3

BOLT | MODEL R/S/T This part replaces 07130-06253.

07130-0625B

$3.04

4

NUT

09159-14015

$4.77

5

KEY

09420-04008

$3.42

6

BOLT

09100-05019

$1.93

7

STUD BOLT

09108-05014

Unavailable

8

SPACER This part replaces 09180-05009.

09180-05053

Unavailable

9

NUT | MODEL L/M/N/P This part replaces 08310-11057.

08310-00057

$1.84

9

NUT | MODEL R/S/T This part replaces 08310-00053.

08310-0005A

$1.84

10

CLAMP MAGNETO LEAD

31497-45000

$1.92

11

BOLT

09100-05019

$1.93
