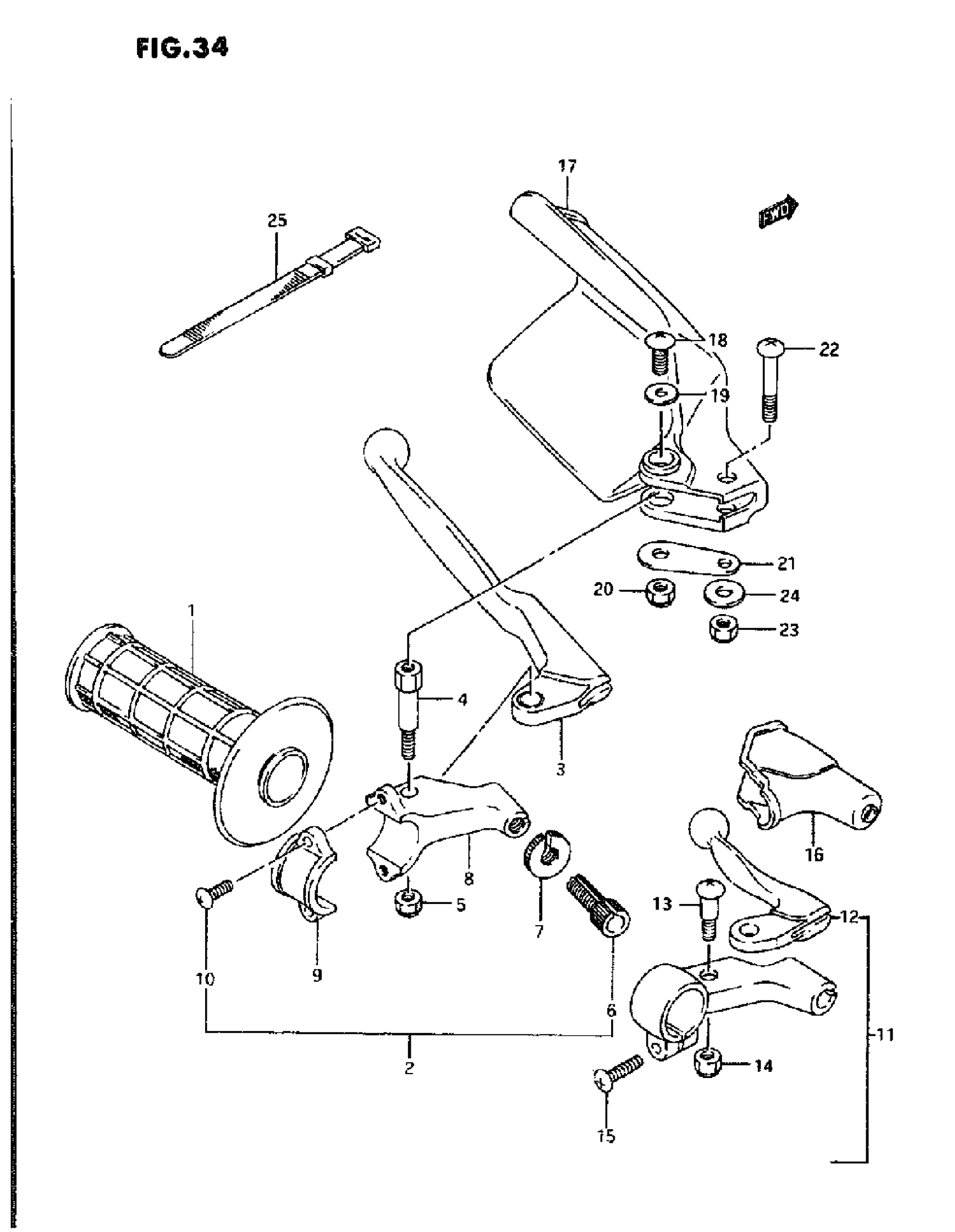

Suzuki DR350 (1995) LEFT KNUCKLE COVER Diagram

#

Description
Price

1

GRIP LH

57211-27C00

$12.28

2

LEVER ASSY, CLUTCH

57500-14D00

Unavailable

3

LEVER, CLUTCH

57620-14300

$20.83

4

BOLT

57631-05D00

$7.12

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER. CABLE

57441-11010

$5.62

7

NUT

57442-05D00

$8.18

8

HOLDER

57511-14300

Unavailable

9

BRACKET

57512-14300

$40.93

10

SCREW

09125-05102

$1.61

11

LEVER ASSY,DECO This part replaces 58700-38200.

58700-38210

$152.93

12

LEVER

58731-38200

$49.42

13

BOLT

57431-01012

$5.24

14

NUT

57633-38200

Unavailable

15

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

16

COVER, DECAMP LEVER

57342-37101

$11.95

17

COVER, KNUCKLE, LH (YELLOW) | MODEL L/M/N/P ->57541-05001-25Y This part replaces 57541-14D00-25Y.

57541-05D01-25Y

Unavailable

17

COVER, KNUCKLE, LH (YELLOW) | MODEL R/S/T

57541-05D01-25Y

Unavailable

18

SCREW (5XLO) | MODEL L/M/N/P

09125-05042

$1.96

18

SCREW | MODEL R/S/T

02142-05107

$1.49

19

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

20

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

21

PLATE. COVER. LOWER

57542-05D00

$4.17

22

SCREW (6X35) | MODEL L

02142-06357

$1.78

22

SCREW (6X35) | MODEL M/N/P/R/S/T

09125-06091

$2.43

23

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

24

.WASHER (6.5X16X1.6) This part replaces 09160-06042.

09160-06130

$1.91

25

BAND

09407-12402

$3.04
