Partiron

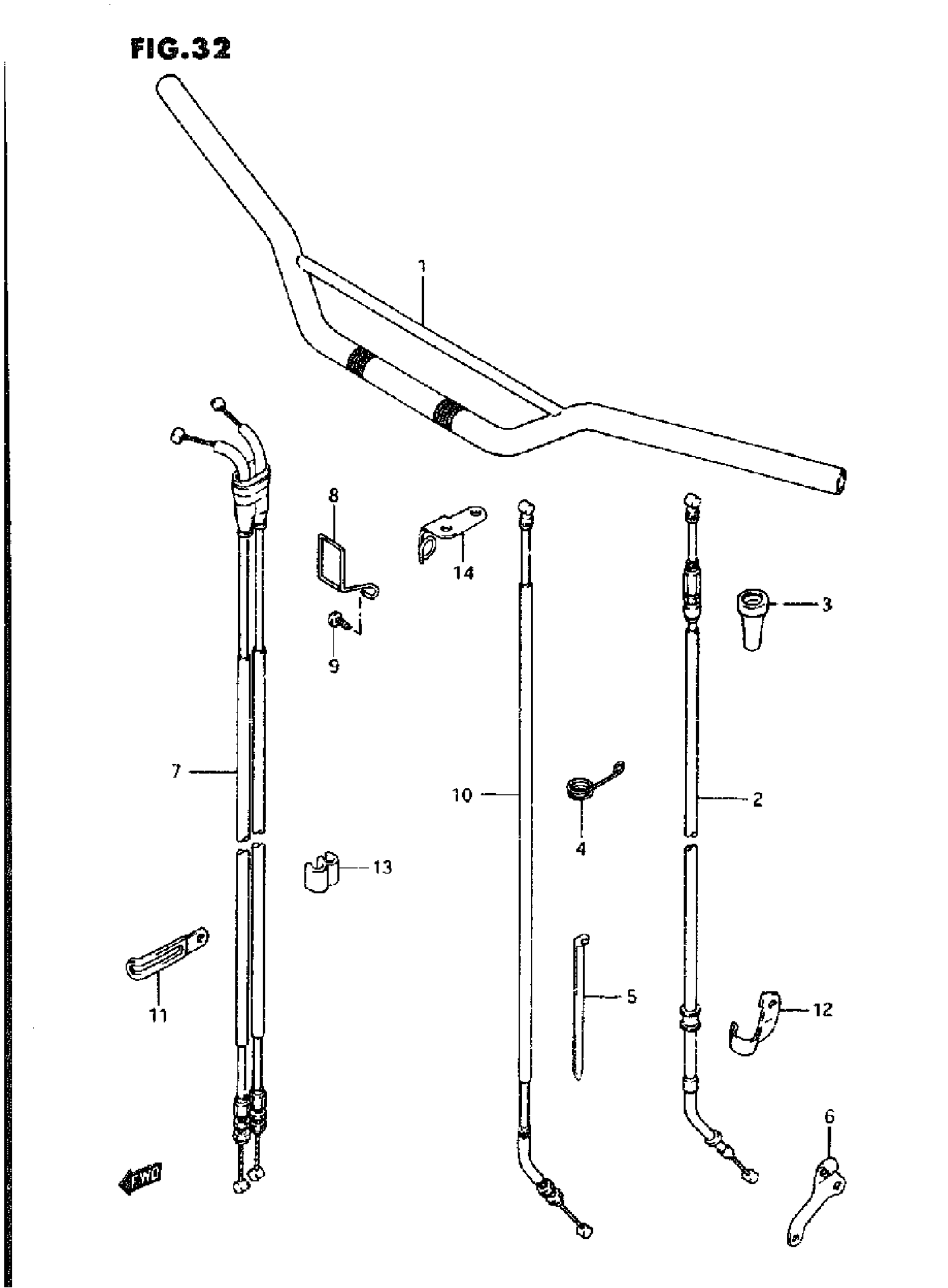

Suzuki DR350 (1995) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | ->56110-14DOL-291 This part replaces 56110-14D00-291.

56110-14D01-291

Unavailable

1

HANDLEBAR (BLACK)

56110-14D01-291

Unavailable

2

CABLE ASSY, CLU This part replaces 58200-14D00.

58200-14D01

$40.40

3

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

4

GUIDE, CLUTCH CABLE

58294-15D00

Unavailable

5

CLAMP, CLUTCH CABLE

09407-14407

$3.57

6

STOPPER, CLUTCH CABLE

58634-14D00

$13.05

7

CABLE ASSY, THROTTLE | MODEL L/M/N/P/R/S This part replaces 58301-14D01.

58301-14D02

Unavailable

7

CABLE ASSY, THROTTLE | MODEL I

58301-14D02

Unavailable

8

GUIDE, CABLE

58294-14D00

Unavailable

9

SCREW | MODEL L/M/N/P This part replaces 02112-16125.

02112-1612B

$3.03

9

SCREW | MODEL R/S This part replaces 02142-06123.

02142-0612A

$1.49

9

BOLT | MODEL I This part replaces 01550-06103.

01550-0610A

$1.97

10

CABLE ASSY, DECOMP

58900-14D10

Unavailable

11

CLAMP | MODEL L/M/N/P/R/S This part replaces 09404-05404.

09404-06039

$1.74

11

CLAMP | MODEL T This part replaces 09404-06431.

09404-06039

$1.74

12

CLAMP, CLUTCH CABLE

58285-14D01

$4.01

13

CLIP, THROTTLE CABLE

09408-00066

$2.07

14

GUIDE, DECOMP CABLE | MODEL R

58620-15D10

Unavailable
