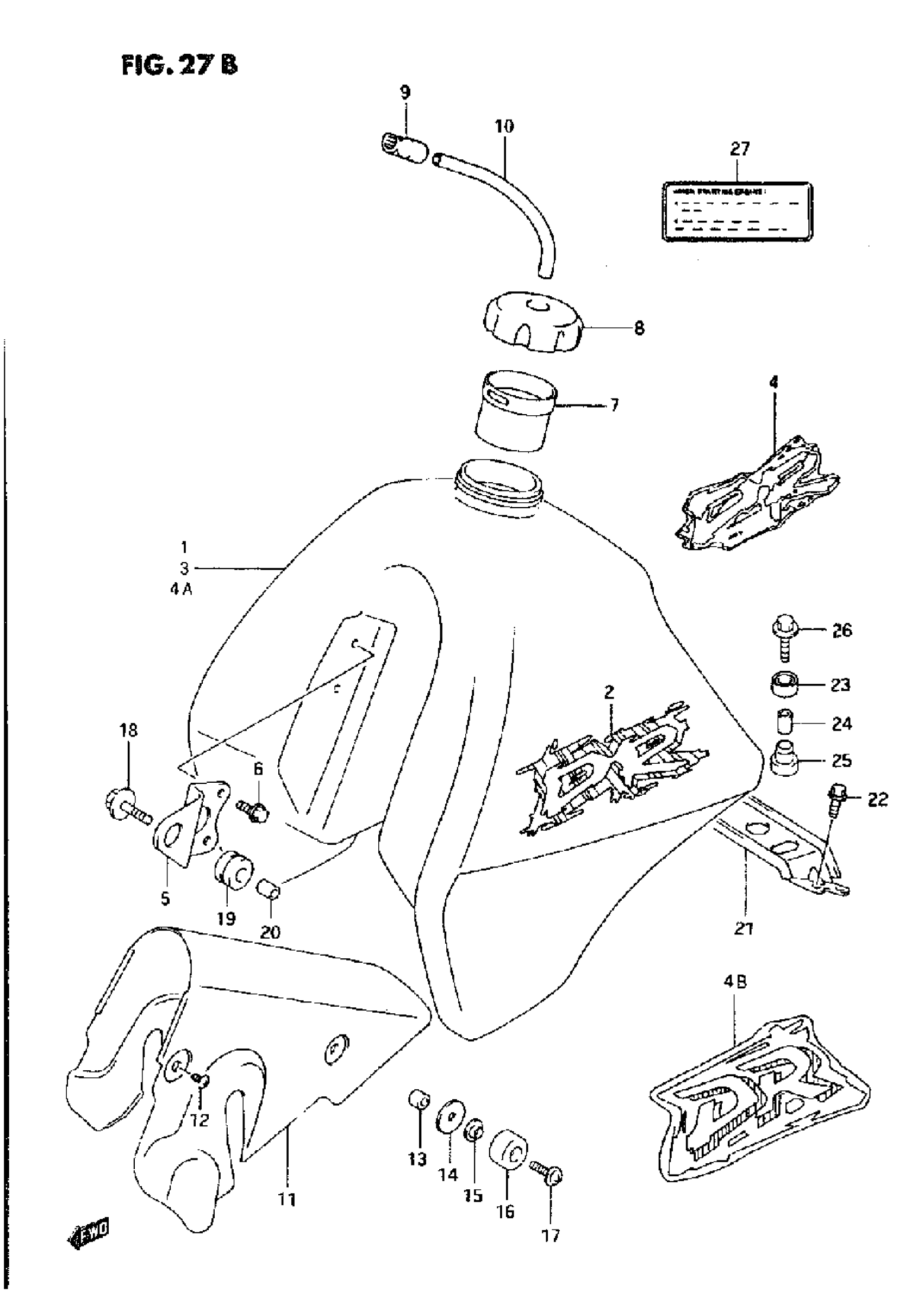

Suzuki DR350 (1995) FUEL TANK (MODEL R/S/T) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | MODEL R

44100-14EA0-30H

Unavailable

2

EMBLEM SET, FUEL TANK | MODEL R

68110-15E30-C5B

Unavailable

3

TANK ASSY, FUEL | MODEL S

44100-14EH0-30H

Unavailable

4

EMBLEM SET, FUEL TANK | MODEL S

68120-14E10-D1P

Unavailable

4

TANK ASSY, FUEL (WHITE) | MODEL T

44100-14EN0-30H

Unavailable

4

TAPE SET, FUEL TANK | MODEL T

68110-14E10-Z65

Unavailable

5

BRACKET

44131-14D10

Unavailable

6

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

7

TUBE, FILLER INLET

44199-19A00

$6.28

8

CAP, FUEL TANK

44200-19A01

$48.20

9

CLAMP

44486-32101

$3.65

10

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

11

HEAT SHIELD, FUEL TANK

49131-14D00

Unavailable

12

SCREW

01560-05103

Unavailable

13

SPACER, SIDE

09180-06122

$3.82

14

WASHER, INNER This part replaces 09160-06096.

09160-06135

$2.17

15

WASHER

09169-06040

$1.92

16

CUSHION, SIDE

45149-14D00

$6.63

17

SCREW | MODEL R This part replaces 02112-06253.

02112-0625A

$1.80

17

SCREW | MODEL S/T This part replaces 02112-16253.

02112-1625B

$3.15

18

BOLT, FRONT

09118-08119

$3.78

19

CUSHION This part replaces 09320-12053.

09320-12092

$3.37

20

SPACER,8.5X12X1 This part replaces 09180-08147.

09180-08190

$3.60

21

BRACKET, FUEL TANK REAR

44151-14D00

Unavailable

22

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

23

CUSHION, UPPER

09320-14013

$2.11

24

SPACER This part replaces 09180-06072.

09180-06271

$2.35

25

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

26

BOLT (6X30) | MODEL R This part replaces 09116-06153.

09116-06172

$2.50

26

BOLT, REAR | MODEL S/T

09116-06172

$2.50

27

LABEL, STARTING CAUTION

68393-14D10

Unavailable
