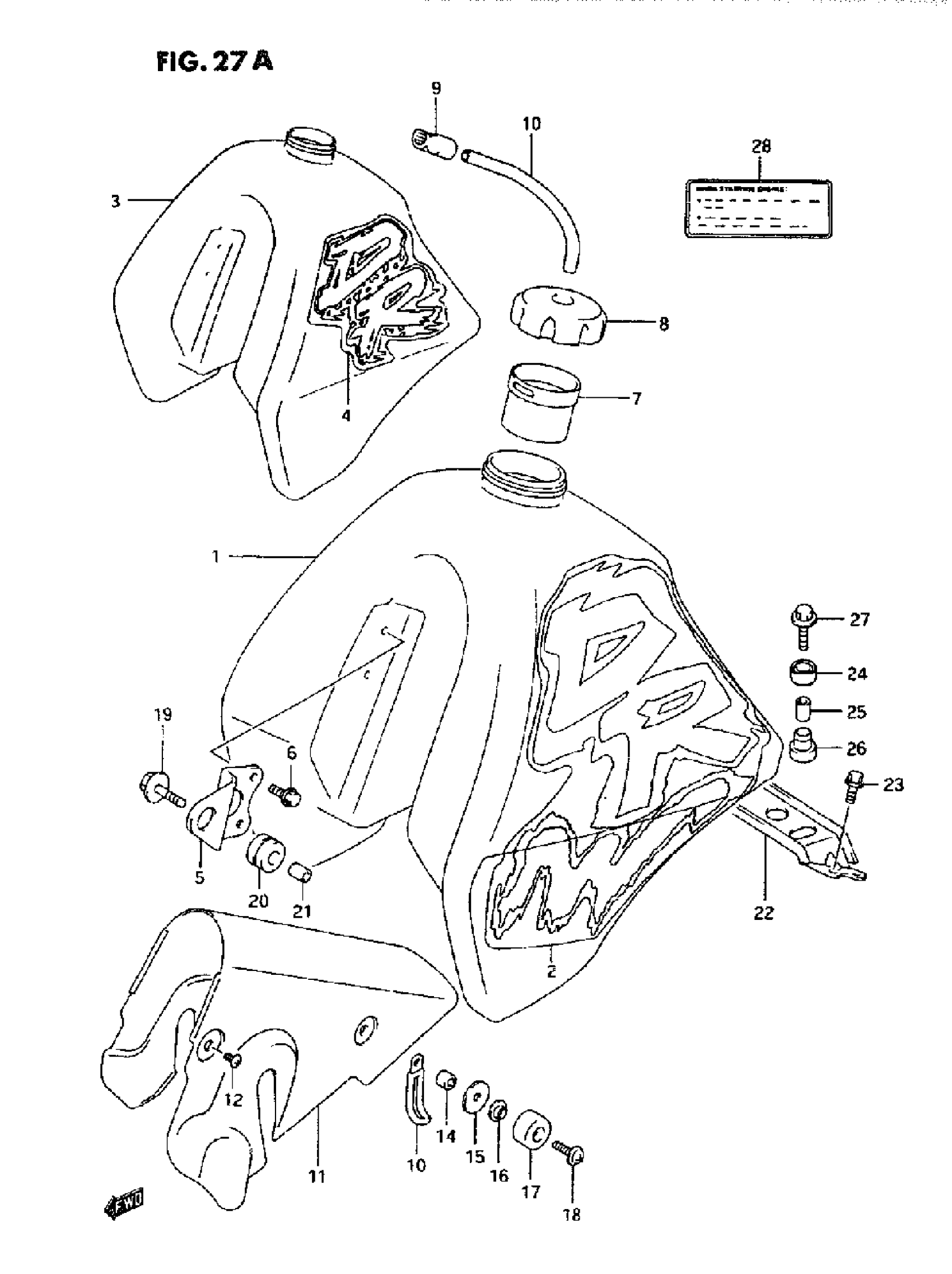

Suzuki DR350 (1995) FUEL TANK (MODEL N/P) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | MODEL N

44100-14D71-30H

Unavailable

2

TAPE SET, FUEL TANK | MODEL N

68110-14E00-M78

Unavailable

3

TANK ASSY, FUEL (WHITE) | MODEL P

44100-14E30-30H

Unavailable

4

TAPE SET, FUEL TANK | MODEL P

68110-15E10-A8A

Unavailable

5

BRACKET

44131-14D10

Unavailable

6

BOLT

01547-06127

$1.65

7

TUBE, FILLER INLET

44199-19A00

$6.28

8

CAP, FUEL TANK

44200-19A01

$48.20

9

CLAMP

44486-32101

$3.65

10

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

11

HEAT SHIELD, FUEL TANK

49131-14D00

Unavailable

12

SCREW

02142-05087

$1.49

13

CLAMP This part replaces 09404-05404.

09404-06039

$1.74

14

SPACER, SIDE

09180-06122

$3.82

15

WASHER, INNER This part replaces 09160-06096.

09160-06135

$2.17

16

WASHER

09169-06040

$1.92

17

CUSHION, SIDE

45149-14D00

$6.63

18

SCREW This part replaces 02112-16253.

02112-1625B

$3.15

19

BOLT, FRONT

09118-08119

$3.78

20

CUSHION This part replaces 09320-12053.

09320-12092

$3.37

21

SPACER,8.5X12X1 This part replaces 09180-08147.

09180-08190

$3.60

22

BRACKET, FUEL TANK REAR

44151-14D00

Unavailable

23

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

24

CUSHION, UPPER

09320-14013

$2.11

25

SPACER This part replaces 09180-06072.

09180-06271

$2.35

26

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

27

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

28

LABEL, STARTING CAUTION

68393-14D10

Unavailable
