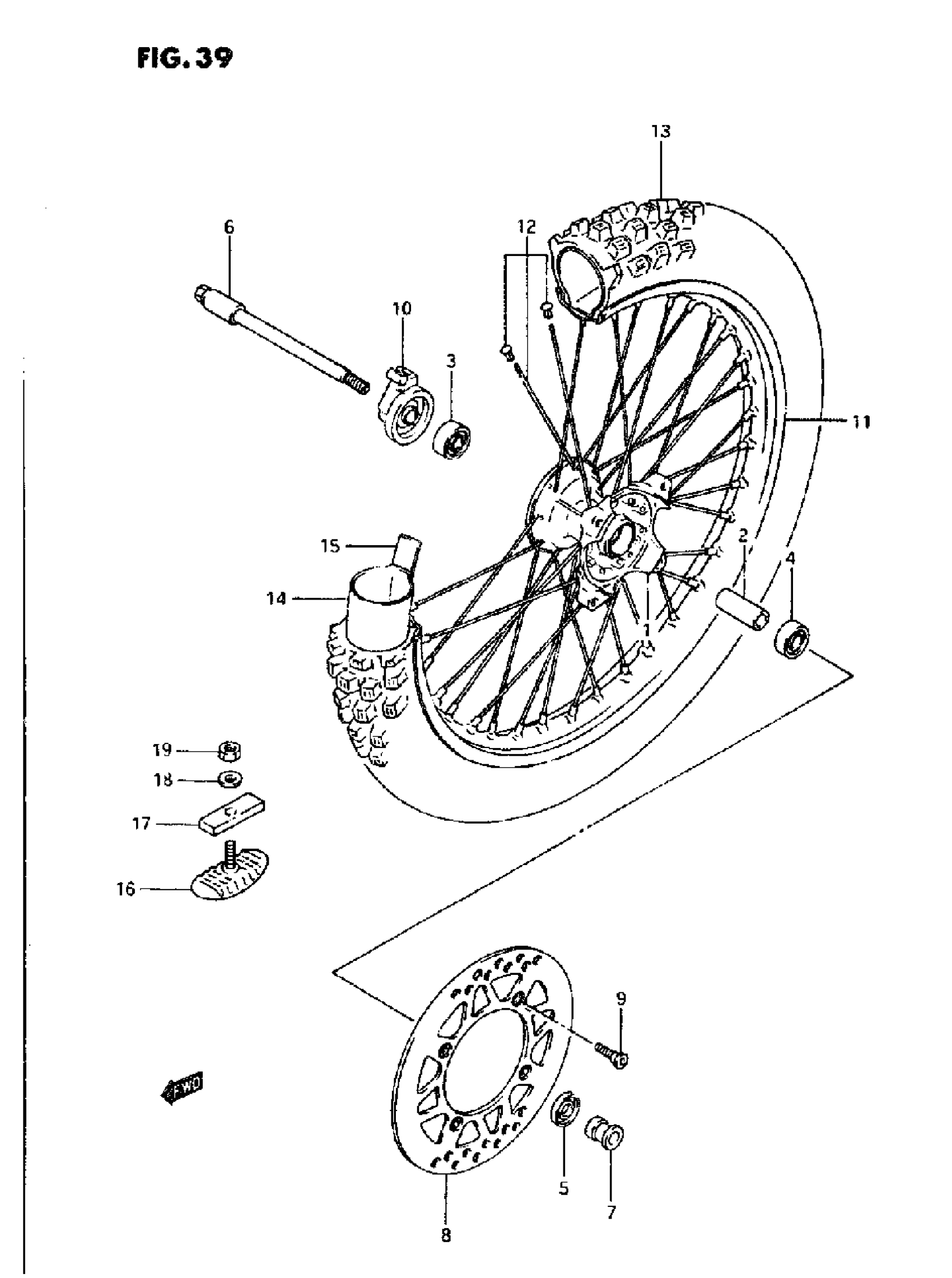

Suzuki DR350 (1995) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-15D00

Unavailable

2

SPACER. HUB BEARING

54731-44B00

Unavailable

3

BEARING, RH

08113-62027

$14.40

4

BEARING, LH

08123-62027

$18.57

5

SEAL, HUB LH

09284-22004

$9.73

6

AXLE, FRONT

54711-14D00

Unavailable

7

SPACER, AXLE LH

54751-14D00

Unavailable

8

DISC, FRONT BRAKE

59221-14D00

Unavailable

9

BOLT | ->59421-03AI0 This part replaces 59421-03A01.

09106-08155

$3.76

9

BOLT This part replaces 59421-03A10.

09106-08155

$3.76

10

BOX ASSY, SPEEDOMETER GEAR

54600-14D00

Unavailable

11

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

Unavailable

12

SPOKE ASSY, FRONT WHEEL

55320-14D00

Unavailable

13

TIRE. FRONT (80/100-21) BRIDGESTONE | TIRE

55110-14D00

Unavailable

14

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

15

PROTECTOR, INNER TUBE

55261-14540

$3.83

16

STOPPER, BEAD

65270-14300

$52.73

17

CUSHION, STOPPER

65271-27C00

$7.42

18

WASHER | MODEL L/M/N/P This part replaces 08322-11088.

08322-01087

$2.13

18

WASHER | MODEL R

08322-01087

$2.13

18

WASHER | MODEL S/T This part replaces 08322-01083.

08322-0108A

$1.92

19

NUT | MODEL L/M/N/P This part replaces 08310-22088.

08310-00087

$2.13

19

NUT | MODEL R

08310-00087

$2.13

19

NUT | MODEL S/T This part replaces 08310-00083.

08310-0008A

$1.84
