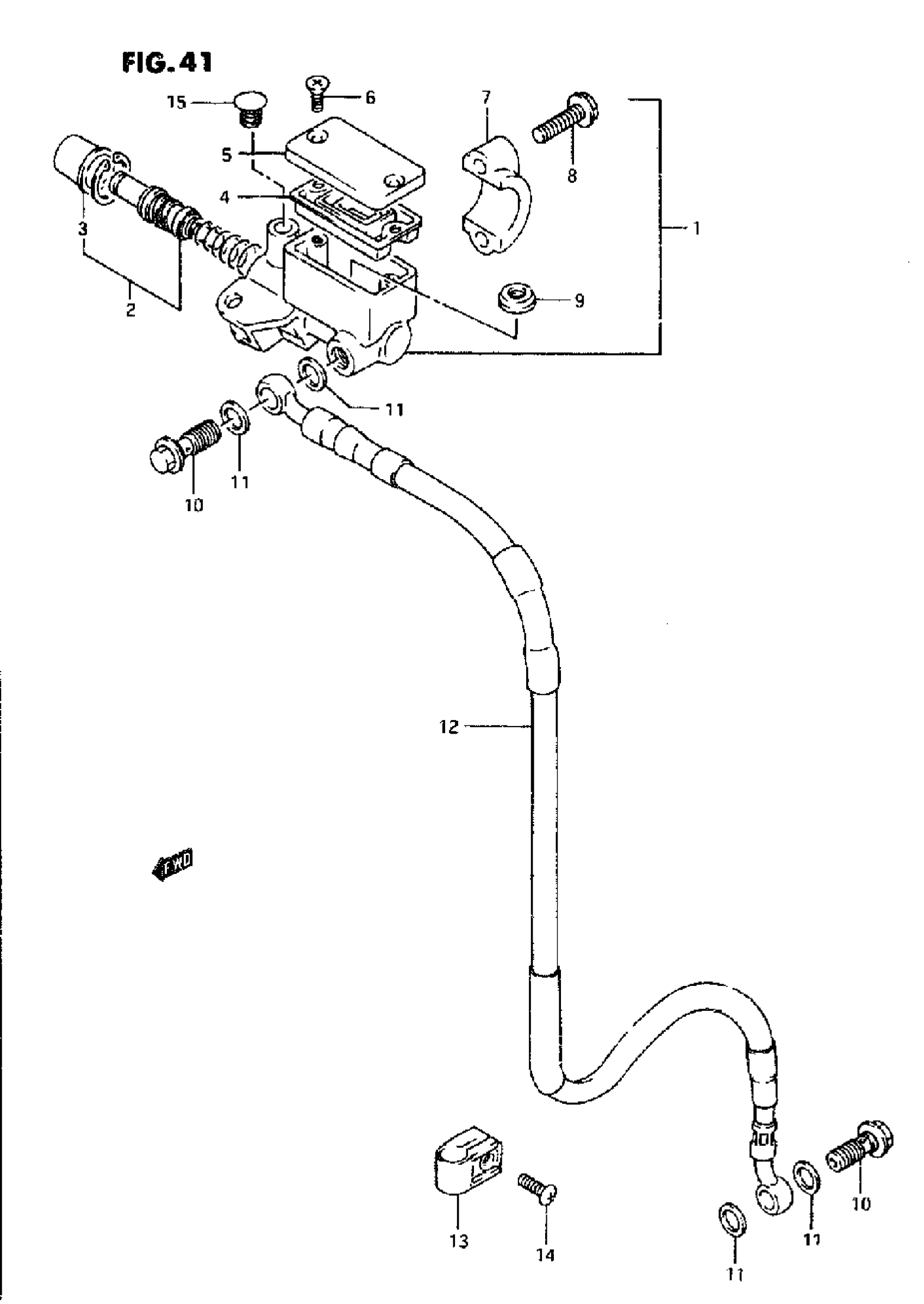

Suzuki DR350 (1995) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-05D00.

59600-05D01

$307.13

2

PISTON & CUP SET

59600-27820

$60.97

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-44B00

$9.78

5

CAP

59669-05D00

$16.76

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-14500

$11.87

10

BOLT (LOXL.0OX24) | MODEL L/M

09360-10017

$3.42

10

BOLT, MASTER CYLINDER (LOXL.0OX24) | BOLT, MODEL N/P

09360-10017

$3.42

10

UNION | MODEL N/P This part replaces 09360-10034.

09360-10062

$6.43

10

UNION | BOLT, MODEL R/S/T This part replaces 09360-10039.

09360-10061

$6.43

10

UNION | MODEL R/S/T This part replaces 09360-10040.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE. FRONT BRAKE

59480-14D01

Unavailable

13

CLAMP. BRAKE HOSE

59243-14501

Unavailable

14

SCREW | MODEL L/M/N/P This part replaces 02112-16165.

02112-1616A

$2.30

14

SCREW | MODEL R/S/T This part replaces 02142-06163.

02142-0616A

$1.49

15

CAP This part replaces 09250-09001.

09250-09008

$1.54
