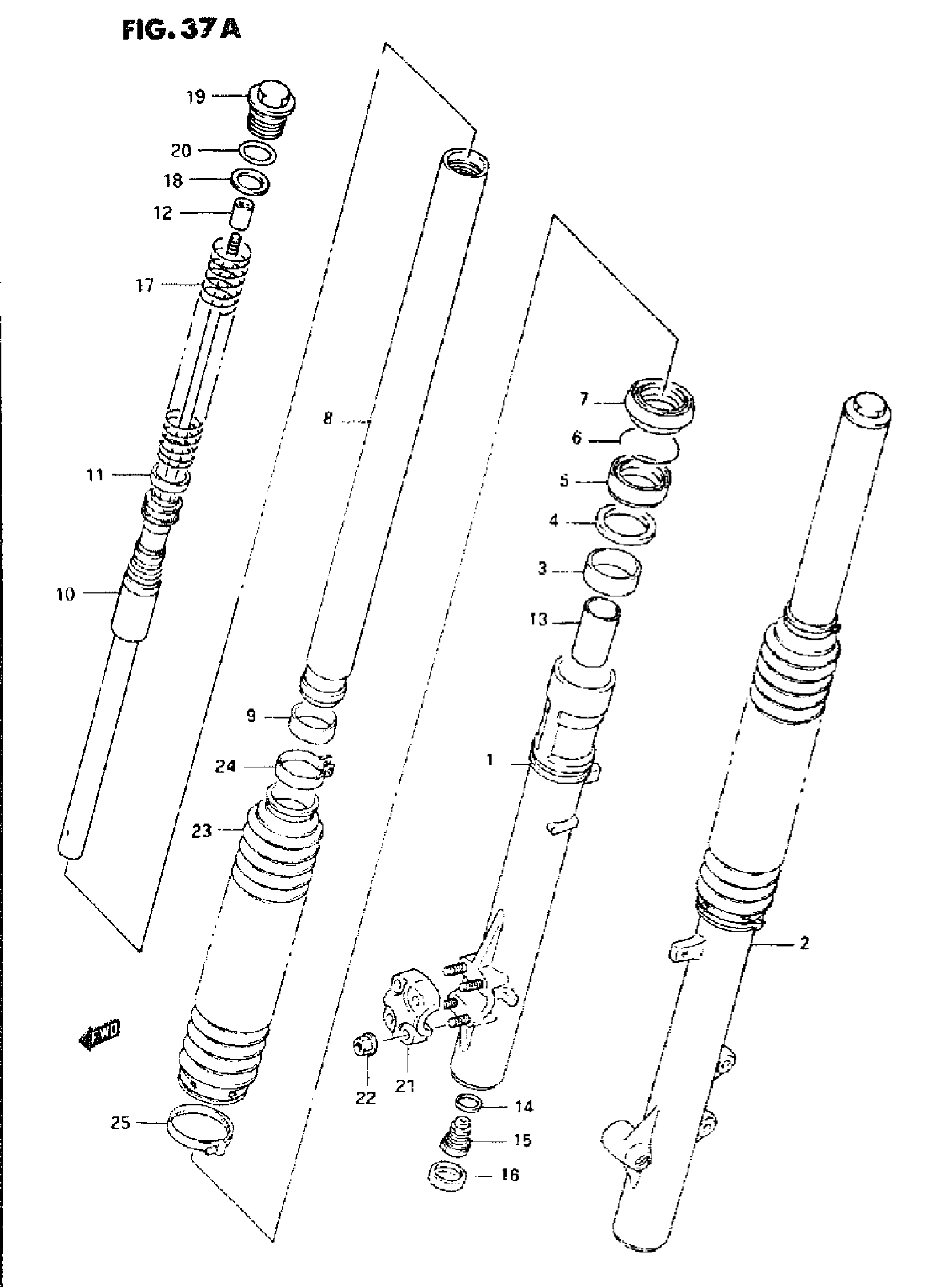

Suzuki DR350 (1995) FRONT DAMPER (MODEL R/S/T) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-14E30

Unavailable

1

DAMPER ASSY, LH

51104-14E30

Unavailable

1

TUBE, OUTER RH

51130-14E30

Unavailable

2

TUBE, OUTER L.H

51141-14E30

Unavailable

3

BUSH, GUIDE

51152-07D00

Unavailable

4

.SPACER, SEAL

51168-17C00

$6.28

5

SEAL. OIL

51153-14D00

$22.96

6

RING, STOPPER

51556-38B00

$7.22

7

SEAL. DUST

51173-14D00

$30.53

8

TUBE, INNER

51110-14E30

Unavailable

9

BUSH, SLIDE

51121-14D00

Unavailable

10

CYLINDER

51190-14E30

Unavailable

11

BUSH, SLIDE

51197-14E30

Unavailable

12

NUT. ROD

51129-14E30

Unavailable

13

PIECE, OIL LOCK

51195-14E30

Unavailable

14

GASKET

51148-08D00

$7.63

15

BOLT, PIECE

51170-08D00

Unavailable

16

CAP

51189-08D00

Unavailable

17

SPRING, MAIN

51171-14E30

Unavailable

18

SEAT, SPRING

51186-17C00

$7.53

19

BOLT, FORK

51351-14E30

Unavailable

20

0 RING

51117-17C00

$5.95

21

HOLDER, AXLE RH

51132-14D00

Unavailable

22

NUT, AXLE HOLDER

51168-14D00

Unavailable

23

BOOT This part replaces 51571-14D00-163.

51571-14D01-163

$58.21

24

BAND, BOOT UPPER

51575-14D00

$12.57

25

BAND, BOOT LOWER

51576-14D00

$14.20
