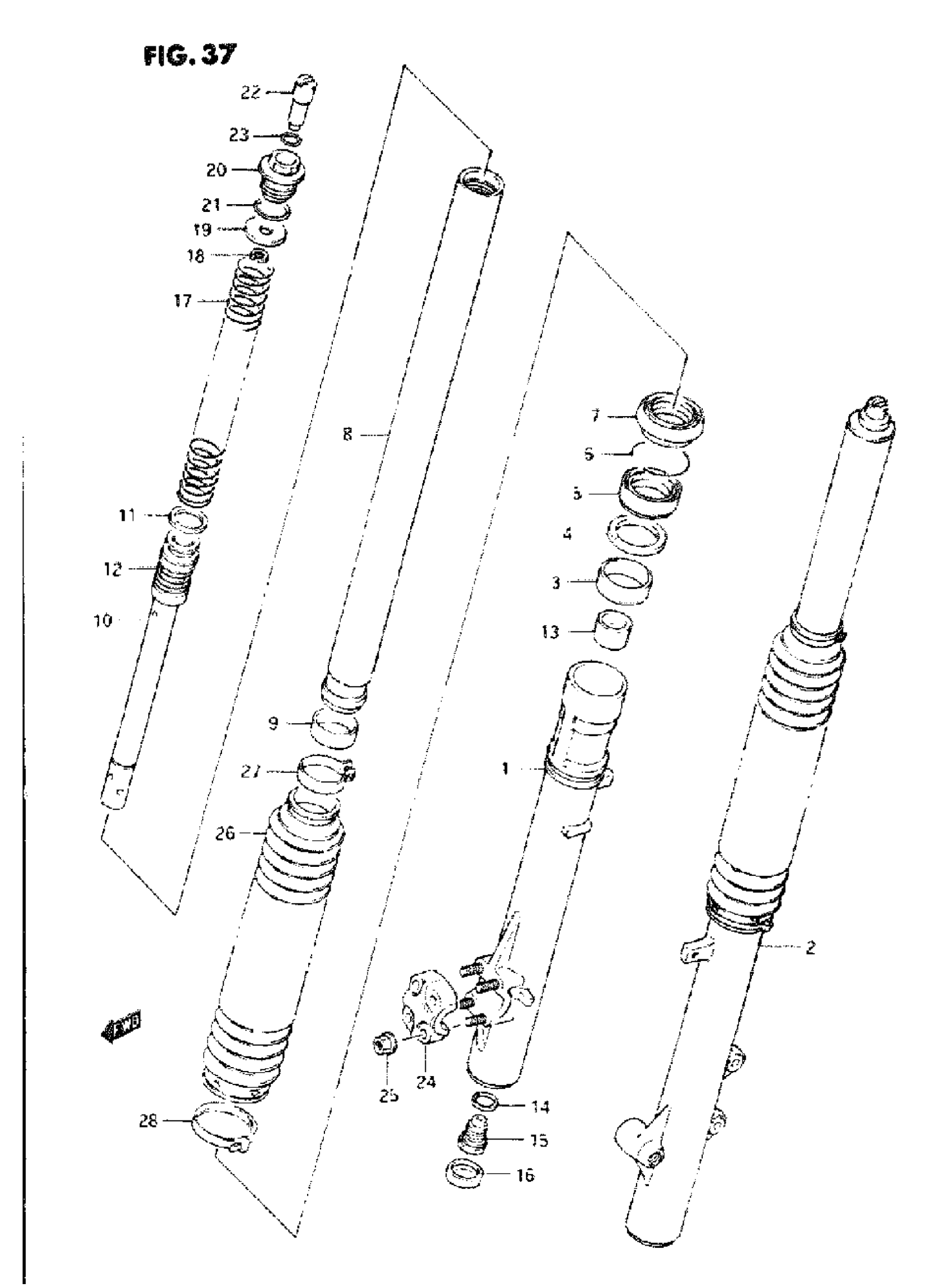

Suzuki DR350 (1995) FRONT DAMPER (MODEL L/M/N/P) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-14D00

Unavailable

1

DAMPER ASSY, LH

51104-14D00

Unavailable

1

TUBE. OUTER RH

51130-14D00

Unavailable

2

TUBE. OUTER LH

51140-14D00

Unavailable

3

BUSH, GUIDE | MODEL L/M This part replaces 51152-17C00.

51152-07D00

Unavailable

3

BUSH. GUIDE | mODEL N/P

51151-07D00

Unavailable

4

.SPACER, SEAL

51168-17C00

$6.28

5

SEAL, OIL

51153-14D00

$22.96

6

RING, STOPPER

51556-38B00

$7.22

7

SEAL, DUST

51173-14D00

$30.53

8

TUBE, INNER

51110-14D00

Unavailable

9

BUSH. SLIDE

51121-14D00

Unavailable

10

CYLINDER

51190-14D00

Unavailable

11

RING. PISTON

51196-14D00

Unavailable

12

SPRING. REBOUND

51177-14D00

$13.07

13

PIECE, OIL LACK

51195-14D00

Unavailable

14

GASKET

51148-14D00

Unavailable

15

BOLT, PIECE

51170-14D00

Unavailable

16

CAP

51512-14D00

Unavailable

17

SPRING. MAIN

51171-14D00

Unavailable

18

E RING

51788-11420

Unavailable

19

SEAT, SPRING

51186-12C00

$7.53

20

BOLT. FORK

51189-14D00

Unavailable

21

0 RING

51117-17C00

$5.95

22

ADJUSTER, SPRING

51185-14D00

Unavailable

23

O RING (D:2.5,ID:13.8) This part replaces 51187-14D00.

09280-14011

$4.77

24

HOLDER, AXLE RH

51132-14D00

Unavailable

25

NUT, AXLE HOLDER

51168-14D00

Unavailable

26

BOOT This part replaces 51571-14D00-163.

51571-14D01-163

$58.21

27

BAND, BOOT UPPER

51575-14D00

$12.57

28

BAND, BOOT LOWER

51576-14D00

$14.20
