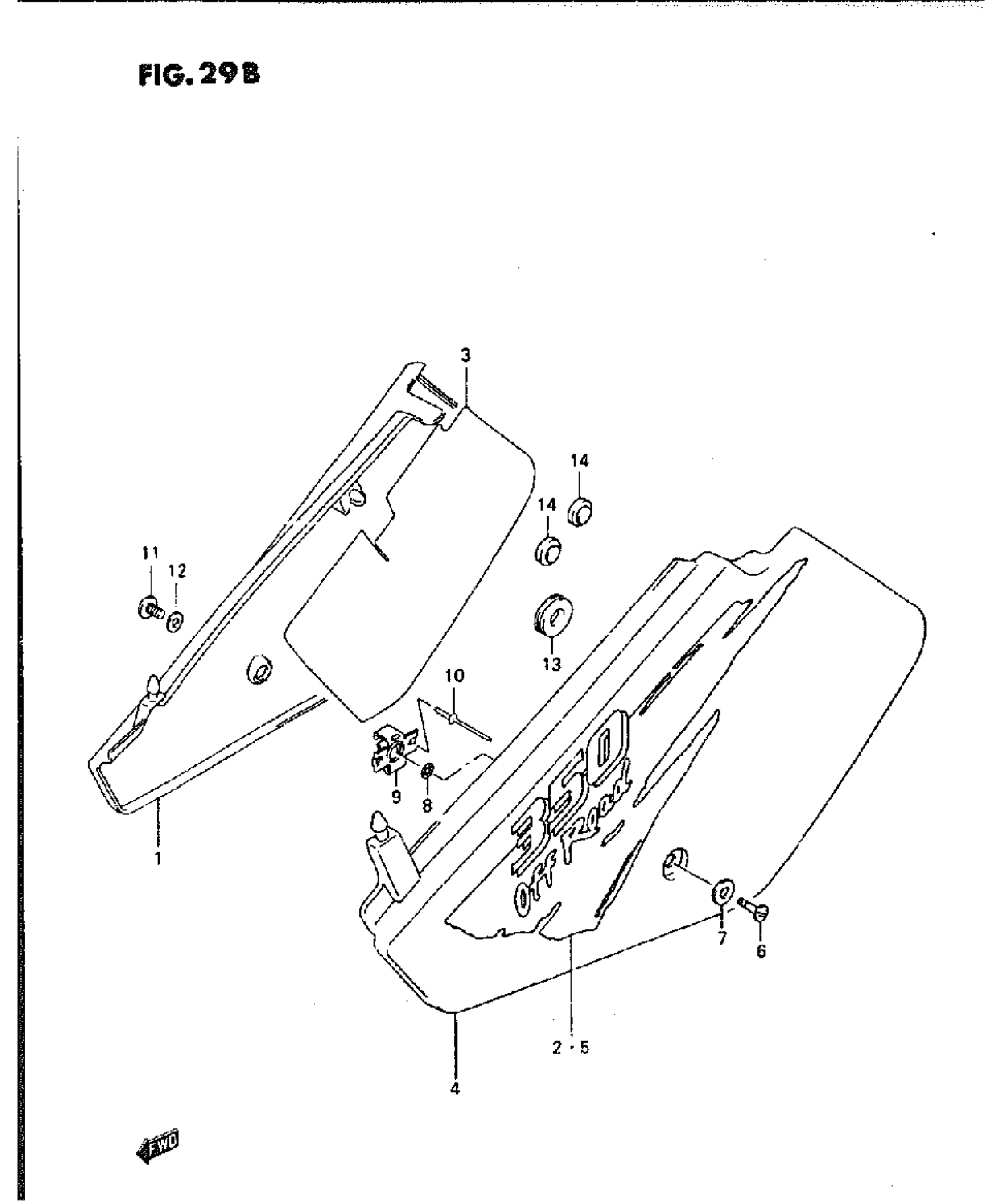

Suzuki DR350 (1995) FRAME COVER (MODEL T) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-14D00-30H

Unavailable

2

EMBLEM, RH

68135-14E20-Z65

Unavailable

3

SHIELD, FRAME COVER RH

47166-14D00

Unavailable

4

COVER, FRAME LH (WHITE)

47211-14D00-30H

Unavailable

5

EMBLEM, LH

68145-14E20-Z65

Unavailable

6

STUD,FRAME COVE This part replaces 94472-14D00.

94472-14D11

$13.55

7

WASHER This part replaces 09160-07015.

09160-07014

$2.36

8

RETAINER, LH

94473-14D00

Unavailable

9

PLATE, FITTING LH

94474-12C00

Unavailable

10

RIVET

09229-03011

$4.12

11

SCREW

02142-06167

$1.49

12

WASHER This part replaces 09169-06028.

09169-06041

$2.20

13

CUSHION, REAR

09320-08029

$2.41

14

CUSHION, MUFFLER

09321-10018

$5.45
