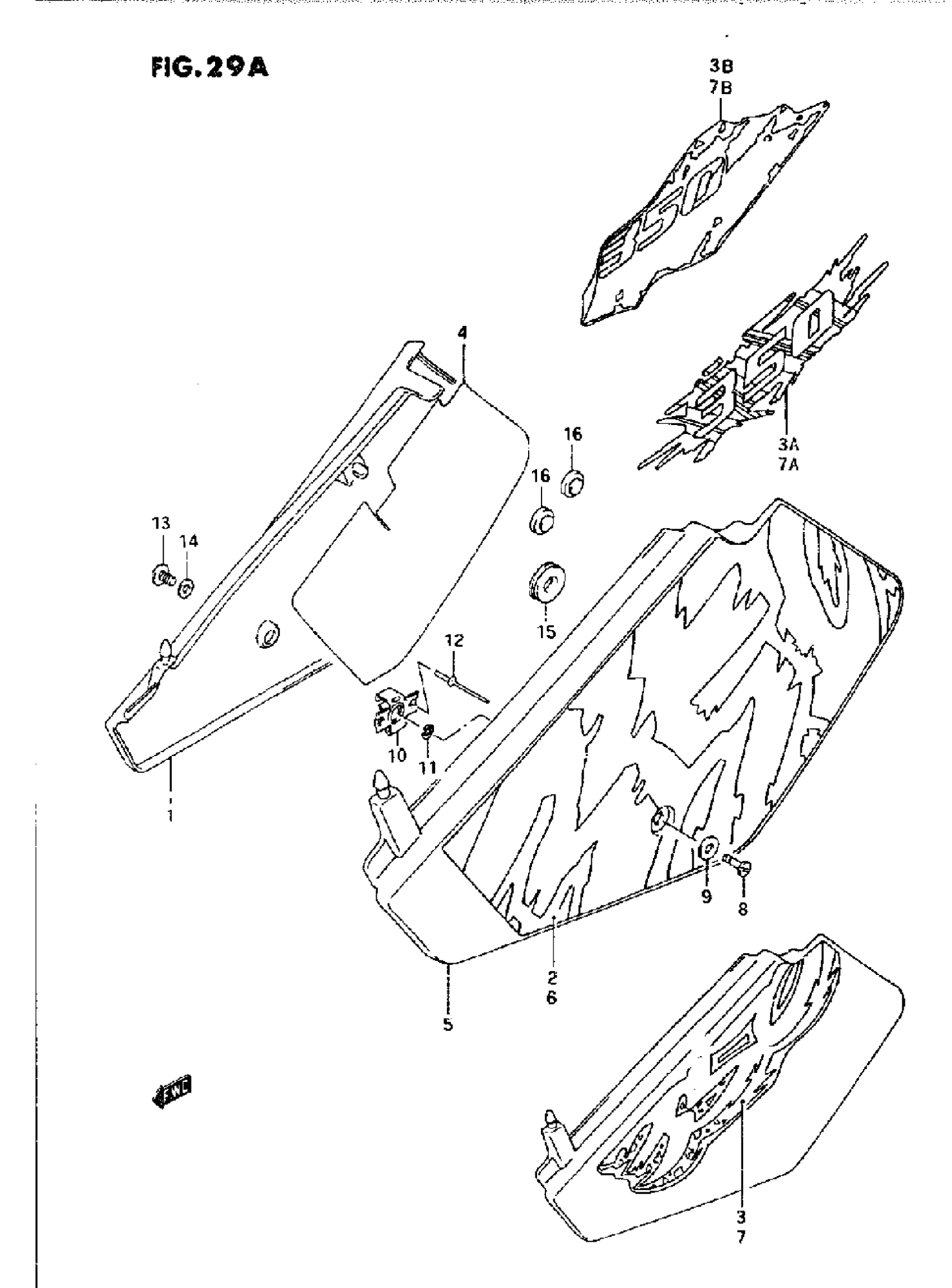

Suzuki DR350 (1995) FRAME COVER (MODEL N/P/R/S) Diagram

#

Description
Price

1

COVER. FRAME RH (WHITE)

47111-14D00-30H

Unavailable

2

TAPE, FRAME COVER RH | MODEL N

68135-14D70-M81

Unavailable

3

EMBLEM, RH | MODEL P

68131-14E00-A8A

Unavailable

3

EMBLEM, RH | MODEL R

68140-14D00-C5B

Unavailable

3

EMBLEM, RH | MODEL S

68135-14E10-D1P

Unavailable

4

SHIELD, FROM COVER RH

47166-14D00

Unavailable

5

COVER, FRAME LH (WHITE)

47211-14D00-30H

Unavailable

6

TAPE, FRAME COVER LH | MODEL N

68145-14D70-M81

Unavailable

7

EMBLEM, LH | MODEL P

68141-14E00-A8A

Unavailable

7

EMBLEM, LH | MODEL R

68140-14D00-C5B

Unavailable

7

EMBLEM. LH | MODEL S

68145-14E10-D1P

Unavailable

8

STUD,FRAME COVE This part replaces 94472-14D00.

94472-14D11

$13.55

9

WASHER

09160-07014

$2.36

10

RETAINER, LH

94473-14D00

Unavailable

11

PLATE, FITTING LH

94474-12C00

Unavailable

12

RIVET

09229-03011

$4.12

13

SCREW, SIDE | MODEL N This part replaces 09139-06059.

09139-06050

$4.73

13

SCREW, SIDE | MODEL P This part replaces 09139-06073.

09139-06050

$4.73

13

SCREW | MODEL R/S

02142-06167

$1.49

14

WASHER This part replaces 09169-06028.

09169-06041

$2.20

15

CUSHION, REAR

09320-08029

$2.41

16

CUSHION, MUFFLER

09321-10018

$5.45
