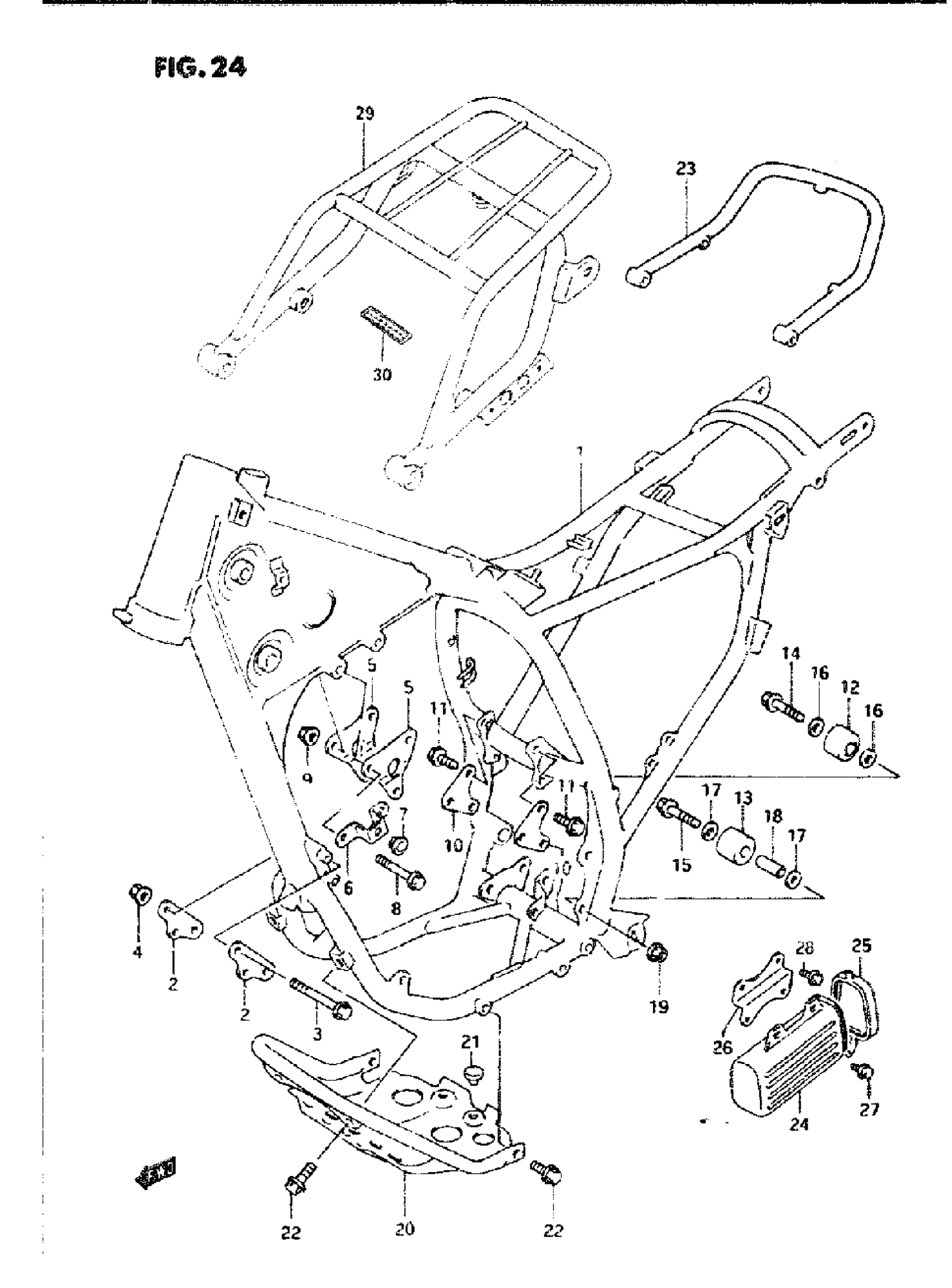

Suzuki DR350 (1995) FRAME Diagram

#

Description
Price

1

RAME (YELLOW) | MODEL L

41100-14D01-0RP F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41100-14D10-1AZ.

41100-14D12-1AZ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 41100-14D11-1AZ.

41100-14D12-1AZ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 41100-14D11-1TS.

41100-14D12-1TS

Unavailable

1

FRAME (CHARCOAL) | MODEL R/S/T

41100-14D12-24K

Unavailable

2

PLATE, FRONT

41911-14D01

Unavailable

3

BOLT | MODEL L This part replaces 09103-08285.

09103-08294

Unavailable

3

BOLT | MODEL M/N/P/R/S/T

09103-08294

Unavailable

4

NUT | MODEL L

08319-31087

$2.32

4

NUT | MODEL M/N/P/R/S/T

09159-08034

$1.62

5

PLATE, UPPER

41991-14D01

Unavailable

6

PLATE, FUEL TANK STOPPER LH

44164-14D00

Unavailable

7

CUSHION

09321-10018

$5.45

8

BOLT (8X70) This part replaces 09103-08293.

09103-08569

$4.88

9

NUT | MODEL L

08319-31087

$2.32

9

NUT | MODEL M/N/P/R/S/T

09159-08034

$1.62

10

PLATE. LOWER (SILVER)

41971-14D01

Unavailable

11

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

12

ROLLER, CHAIN CONTROL | MODEL L This part replaces 43910-27C10.

43910-27C11

$64.67

12

ROLLER, CHAIN | MODEL M/N/P/R/S/T

43910-27C11

$64.67

13

ROLLER, CHAIN LOWER | MODEL L

43911-01B10

$16.63

14

BOLT, UPPER

09103-08178

$4.69

15

BOLT, LOWER | MODEL L

01550-08457

$4.00

15

BOLT, INNER | MODEL M/N/P/R/S/T This part replaces 09103-08068.

09103-08043

$3.18

16

WASHER, UPPER | MODEL L/M

09160-08074

Unavailable

16

WASHER, UPPER | MODEL N/P/R/S/T

08211-08121

$1.99

17

WASHER | MODEL L This part replaces 09160-08021.

09160-08130

$2.03

17

WASHER, LOWER | MODEL M

09160-08074

Unavailable

17

WASHER. LOWER | MODEL N/P/R/S/T

08211-08121

$1.99

18

SPACER (8.5X14X28) | MODEL L This part replaces 09180-08136.

09180-08206

$5.75

19

NUT, LOWER | MODEL L/M/N/P/R

08313-20087

$2.19

19

NUT | MODEL S/T This part replaces 08313-20083.

08313-2008B

$2.88

20

PROTECTOR, ENGINE (SILVER) | MODEL L This part replaces 42510-14D01-13L.

42510-14D10-13L

Unavailable

20

PROTECTOR. ENGINE (SILVER) | MODEL M/N/P/R/S/T

42510-14D10-13L

Unavailable

21

CUSHION

09321-10026

Unavailable

22

BOLT | MODEL L/M/N/P/R

01550-08127

$2.85

22

BOLT (8X12) | MODEL S/T This part replaces 01550-08123.

01550-0812A

$2.32

23

GRIP, REAR (YELLOW) | MODEL L This part replaces 43980-14D50-0RP.

43980-14D52-1AZ

Unavailable

23

GRIP, REAR (YELLOW) | MODEL M/N

43980-14D52-1AZ

Unavailable

23

GRIP, REAR (WHITE) | MODEL P/R

43980-14D52-1TS

Unavailable

23

GRIP, REAR (WHITE) | MODEL S/T This part replaces 43980-14D80-1TS.

43980-14D52-1TS

Unavailable

24

HOLDER, TOOL | OPT

47431-14D00

$47.07

25

CAP,TOOL HOLDER | OPT This part replaces 47432-14D00.

47432-14D01

$12.83

26

PLATE, FITTING | OPT

47440-14D00

Unavailable

27

BOLT, CENTER | OPT, MODEL L/M/N/P This part replaces 09116-06085.

09116-06165

$3.03

27

BOLT, CENTER | OPT.MODEL R/S/T This part replaces 09116-06144.

09116-06165

$3.03

28

BOLT | OPT, MODEL L/M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

28

BOLT | OPT, MODEL R/S/T This part replaces 01550-06103.

01550-0610A

$1.97

29

CARRIER, SPORT (WHITE) | OPT

46310-15D30-1TS

Unavailable

30

LABEL | OPT

68391-14D00

Unavailable
