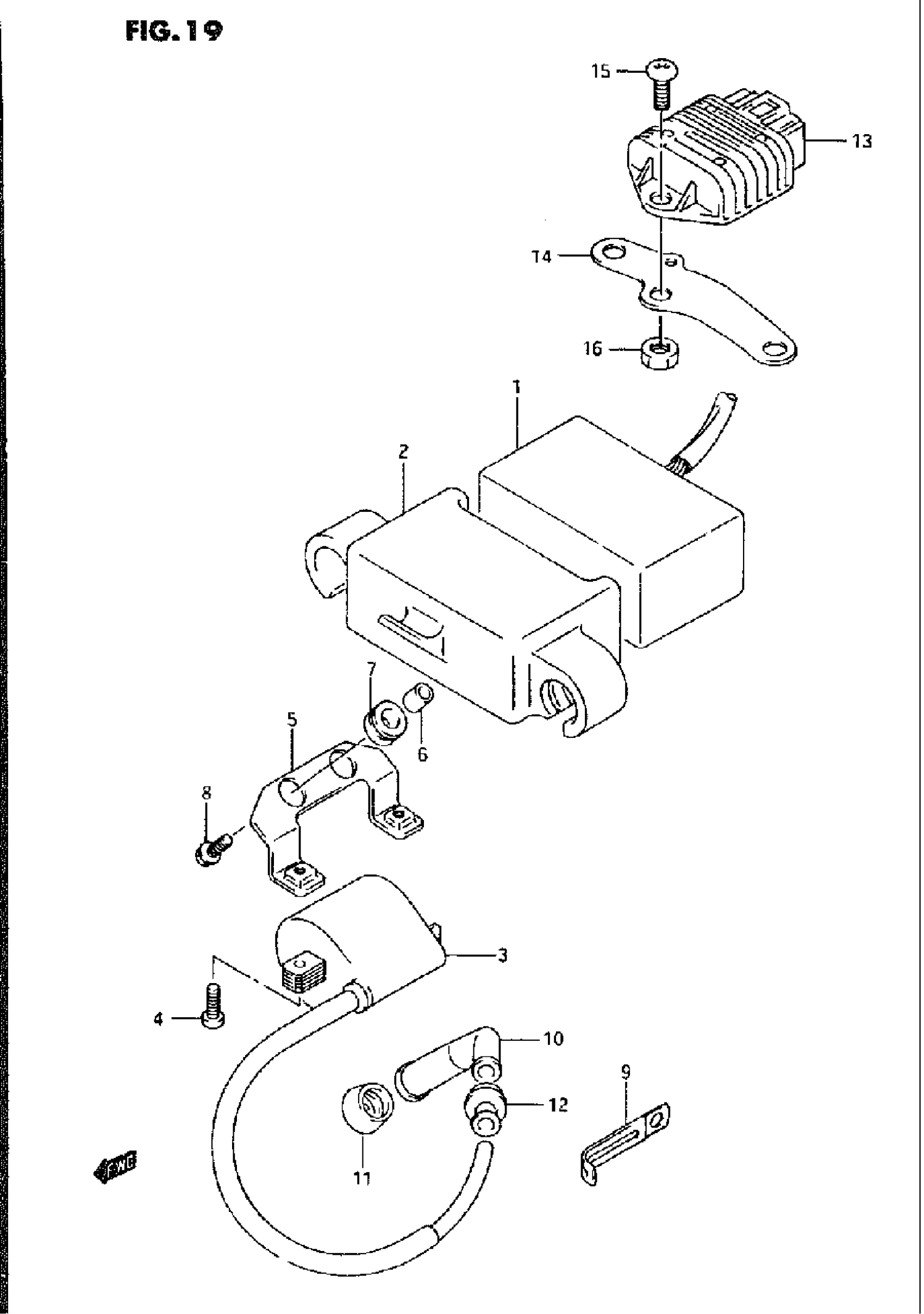

Suzuki DR350 (1995) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT | MODEL L/M/N

32900-14D00

Unavailable

1

CDI UNIT | MODEL P/R/S/T

32900-14D30

Unavailable

2

CUSHION

32980-14D00

Unavailable

3

COIL ASSY,IGNIT This part replaces 33410-14D00.

33410-14D01

$116.75

4

SCREW | MODEL L/M/N/P/R This part replaces 02112-06206.

02112-0620A

$1.49

4

SCREW | MODEL S/T This part replaces 02112-06203.

02112-0620A

$1.49

5

BRACKET, IGNITION COIL

33416-14D00

Unavailable

6

SPACER This part replaces 09180-06027.

09180-06258

$1.81

7

CUSHION

09320-09036

$4.32

8

BOLT | MODEL L/M/N/P

01114-06166

Unavailable

8

BOLT | MODEL R/S/T This part replaces 01560-06163.

01560-0616A

Unavailable

9

CLAMP (L:60) | MODEL L/M/N/P/R/S This part replaces 09404-06422.

09404-06429

$1.83

9

CLAMP (L:60) | MODEL T

09404-06429

$1.83

10

CAP, SPARK PLUG

33510-43010

$24.99

11

SEAL, SPARK PLUG | MODEL L/M/N/P This part replaces 33541-24510.

33541-47D00

$7.83

11

SEAL, SPARK PLUG | MODEL R/S/T

33541-47D00

$7.83

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

REGULATOR

32500-14D00

Unavailable

14

BRACKET, REGULATOR

32511-14D00

Unavailable

15

SCREW | MODEL L/M/N/P/R This part replaces 02142-06126.

02142-0612A

$1.49

15

SCREW | MODEL S/T This part replaces 02142-06123.

02142-0612A

$1.49

16

NUT | MODEL L/M/N/P/R This part replaces 08310-12066.

08310-0006A

$1.84

16

NUT | MODEL S/T This part replaces 08310-00063.

08310-0006A

$1.84
