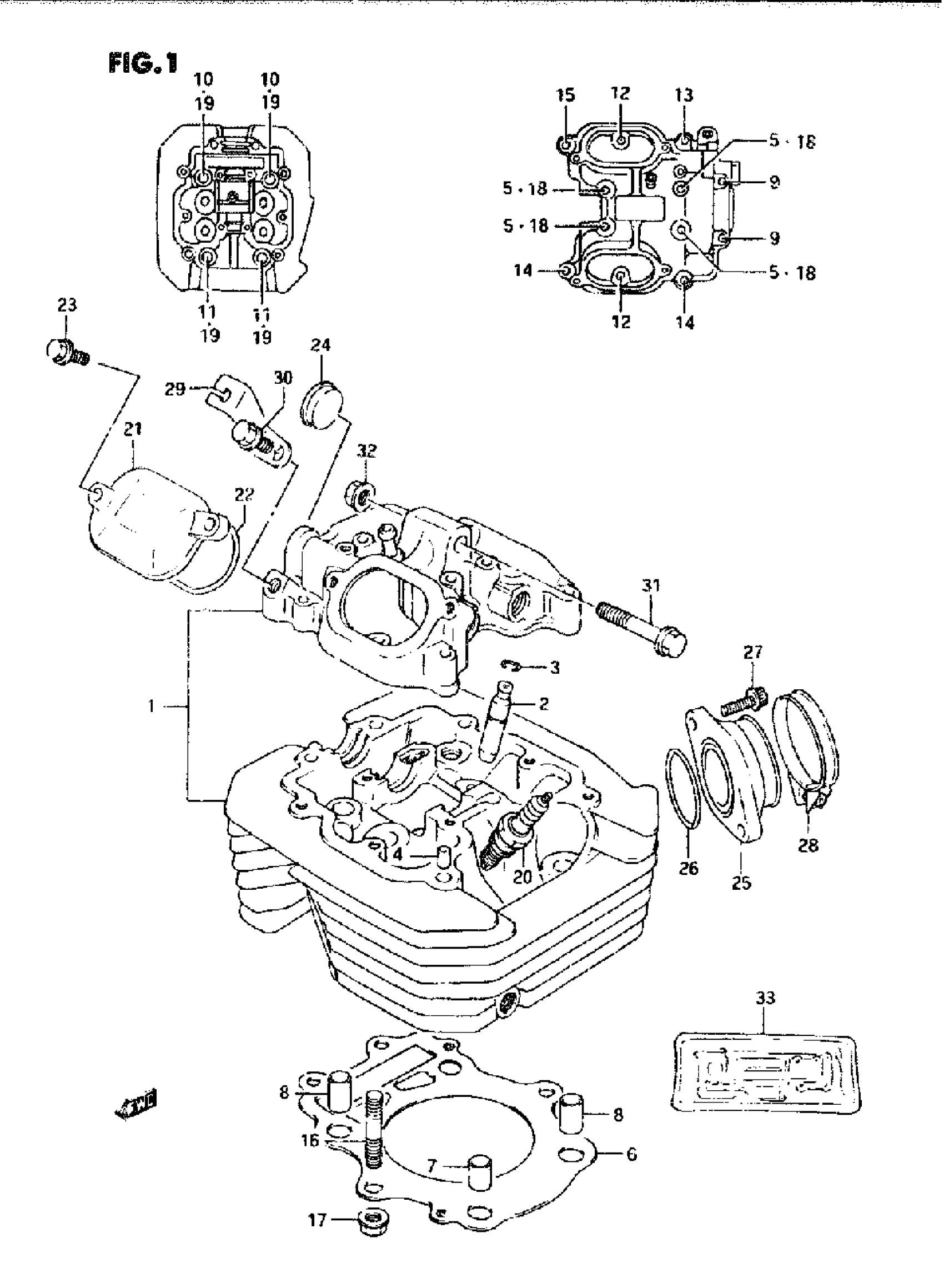

Suzuki DR350 (1995) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | -E.NO.102932 This part replaces 11100-14D00.

11100-14D02

Unavailable

1

HEAD ASSY, CYLINDER | E.NO.101933- This part replaces 11100-14D01.

11100-14D02

Unavailable

1

HEAD CYLINDER | MODEL M/N

11100-14D02

Unavailable

1

HEAD ASSY. CYLINDER | MODEL P

11100-14D20

Unavailable

1

HEAD ASSY, CYLINDER | MODEL R/S/T

11100-14D50

Unavailable

2

GUIDE, VALVE | -E.NO.102932

11116-06B70

$40.73

2

GUIDE,VALVE (OS:0.3) | E.N0.102933- This part replaces 11115-14D70.

11115-14D71

$39.23

2

GUIDE,VALVE (OS:0.3) | MODEL P/R/S/T

11115-14D71

$39.23

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT (6X55)

09103-06102

$2.10

6

GASKET, CYLINDER HEAD | -E.NO.102932 This part replaces 11141-14000.

11141-06110

$5.05

6

GASKET, CYLINDER HEAD | E.NO.102933-

11141-14D01

$35.76

7

PIN (L:18)

04211-13189

$2.19

8

PIN (L:22)

09206-13004

$2.40

9

BOLT (6XLL5) | MODEL L/M/N/P

09103-06052

$4.68

9

BOLT (6XLL5) | MODEL R/S/T

09103-06167

$4.26

10

BOLT (IOXI8O)

09103-10178

$14.74

11

BOLT (LOXL55)

09103-10223

$19.52

12

BOLT | MODEL L/M/N/P This part replaces 01517-06257.

01550-06257

$2.30

12

BOLT | MODEL R/S/T This part replaces 01550-06253.

01550-0625A

$1.97

13

BOLT | MODEL L/M/N/P This part replaces 01517-06307.

01550-06307

$2.69

13

BOLT | MODEL R/S/T This part replaces 01550-06303.

01550-0630A

$2.32

14

BOLT (6X35)

09103-06108

$2.23

15

BOLT (6X39) | MODEL L/M/N/P

09103-06026

$1.98

15

BOLT (6X4O) | MODEL R/S/T

09103-06504

$2.19

16

STUD BOLT

09108-08142

$3.18

17

NUT (CHROME) | MODEL L/M/N/P This part replaces 08316-16088.

08316-10087

$2.26

17

NUT | MODEL R/S/T This part replaces 08316-10083.

08316-1008B

$2.66

18

GASKET

09168-06023

$2.35

19

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

20

SPARK PLUG (NGK, DPR9EA-9) | MODEL L/M/N/P

09482-00330

$3.11

20

SPARK PLUG (DENSO,X27EPR-U9) | MODEL L/M/N/P This part replaces 09482-00331-111.

09482-00331

$5.28

20

SPARK PLUG (NGK, CR9EK) | MODEL R/S/T

09482-00410

$11.59

20

SPARK PLUG (DENSO,U27ESR-N) | MODEL R/S/T This part replaces 09482-00411.

09482-00459

$6.09

20

SPARK PLUG (NGK, DPR8EA-9) | OPT MODEL L/M/N/P

09482-00334

$3.03

20

SPARK PLUG (NGK, CR8EK) | OPT MODEL R/S/T

09482-00412

$10.62

20

SPARK PLUG (NGK, CRIOEK) | OPT MODEL R/S/T

09482-00462

$12.50

20

SPARK PLUG (ND, U24ETR) | OPT MODEL R/S/T

09482-00413

$13.17

20

SPARK PLUG (ND, U31ETR) | OPT MODEL R/S/T

09482-00463

$15.42

21

CAP,INSPECTION | MODEL L/M/N This part replaces 11175-14D00.

11175-47D00

$24.10

21

CAP,INSPECTION | MODEL P/R/S/T

11175-47D00

$24.10

22

.O RING,INSPECTION CAP | MODEL L/M/N/P/R This part replaces 11177-14D00.

11177-14D01

$4.60

22

.O RING,INSPECTION CAP | MODEL S/T

11177-14D01

$4.60

23

BOLT | MODEL L/M/N/P This part replaces 01517-06207.

01550-06207

$2.30

23

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

24

PLUG, HEAD

09241-25007

$6.17

25

PIPE ASSY, INTA This part replaces 13101-14D00.

13101-14D01

Unavailable

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

27

BOLT, FRONT | MODEL L/M/N/P This part replaces 07120-06205.

07120-0620B

$3.04

27

BOLT, FRONT | MODEL R/S/T This part replaces 07120-06203.

07120-0620B

$3.04

28

CLAMP

09402-52208

$5.36

29

HOLDER, DECOMP CABLE

12944-14A00

Unavailable

30

BOLT (8X16) | MODEL L/M/N/P This part replaces 01517-08165.

01550-0816A

$2.32

30

BOLT (8X16) | MODEL R/S/T This part replaces 01550-08163.

01550-0816A

$2.32

31

BOLT (8X65)

09103-08280

Unavailable

32

NUT

08319-31087

$2.32

33

GASKET SET | -E.NO.102932 This part replaces 11401-14831.

11401-14860

Unavailable

33

GASKET SET | E.NO.102933- This part replaces 11401-14833.

11401-14860

Unavailable

33

GASKET SET | MODEL P/R This part replaces 11401-14836.

11401-14860

Unavailable

33

GASKET SET | MODEL S This part replaces 11401-14839.

11401-14860

Unavailable

33

GASKET SET | MODEL T

11401-14860

Unavailable
