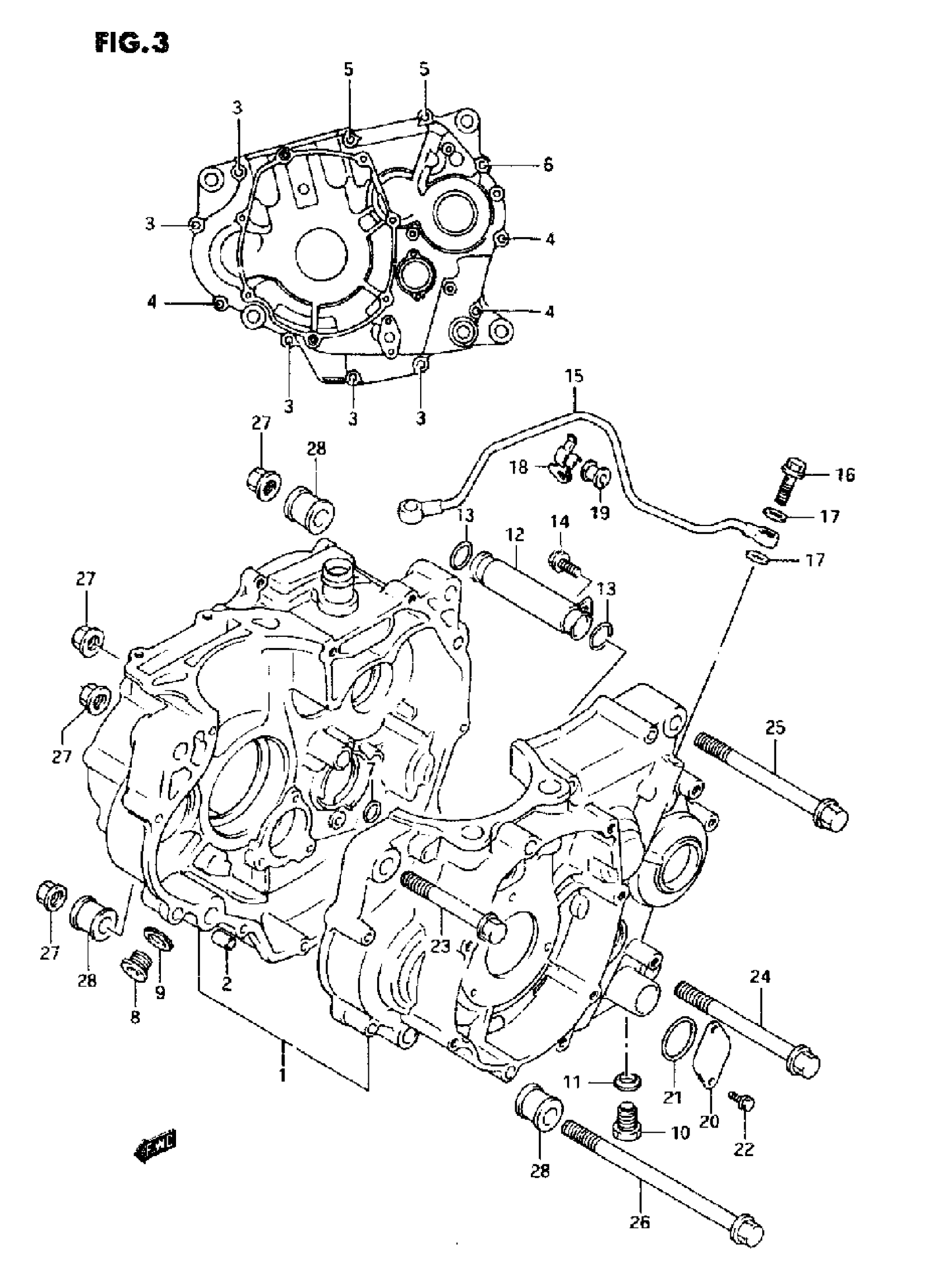

Suzuki DR350 (1995) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 11301-14870.

11301-14873

Unavailable

1

CRANKCASE SET | MODEL N This part replaces 11301-14880.

11301-14883

Unavailable

1

CRANKCASE SET | MODEL N This part replaces 11301-14881.

11301-14883

Unavailable

1

CRANKCASE SET | MODEL P This part replaces 11301-14882.

11301-14883

Unavailable

1

CRANKCASE SET | MODEL R This part replaces 11301-15820.

11301-15821

Unavailable

1

CRANKCASE SET | MODEL S/T

11301-15821

Unavailable

2

PIN

04211-09149

$1.65

3

BOLT | MODEL L/M/N/P

01547-06457

$2.32

3

BOLT | MODEL R/S/T This part replaces 01547-06453.

01547-0645B

$2.73

4

BOLT | MODEL L/M/N/P

01547-06507

$2.41

4

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

$2.75

5

BOLT | MODEL L/M/N/P

01547-06607

$3.18

5

BOLT | MODEL R/S/, This part replaces 01547-06603.

01547-0660B

$3.18

6

BOLT

01547-06707

$2.75

7

O RING (D:1.9,ID:12.6) | MODEL L/M/N/P/R This part replaces 09280-13007.

09280-12009

$3.18

7

0 RING | MODEL S/T

09280-12009

$3.18

8

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

9

GASKET

09168-14002

$2.26

10

BOLT | MODEL L/M/N/P This part replaces 01104-12205.

01500-1220B

$4.00

10

BOLT | MODEL R/S/T This part replaces 01500-12203.

01500-1220B

$4.00

11

GASKET

09168-12002

$1.59

12

PIK, MISSION OIL INNER

11450-14D01

Unavailable

13

0 RING | MODEL L/M/N/P/R

09280-16005

$2.23

13

O-RING (D:2.4,ID:15.8) | MODEL S/T

09280-15007

$1.70

14

BOLT | MODEL L/M/N/P This part replaces 01517-06128.

01550-06127

$2.30

14

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97

15

PIPE. MISSION OIL OUTER

11280-14D02

Unavailable

16

UNION BOLT, OIL PIPE

09360-08011

$3.68

17

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

18

CLAMP, OIL PIPE

11290-14D00

Unavailable

19

CUSHION

09320-06019

Unavailable

20

CAP, HOLE

11385-14D00

Unavailable

21

0 RING

09280-26005

$2.30

22

BOLT | MODEL L/M/N/P This part replaces 01547-05105.

01547-0510B

$2.97

22

BOLT | MODEL R/S/T This part replaces 01547-05103.

01547-0510B

$2.97

23

BOLT,10X85 This part replaces 09103-10230.

09103-10083

Unavailable

24

BOLT (10X100) | MODEL L This part replaces 09103-10231.

09103-10242

$8.50

24

BOLT (10XLOO) | MODEL M/N/P/R/S/T

09103-10242

$8.50

25

BOLT (LOXLL5)

09103-10063

$8.73

26

BOLT (10X143) | MODEL L This part replaces 09103-10187.

09103-10241

Unavailable

26

BOLT (LOXL43) | MODEL M/N/P/R/S/T

09103-10241

Unavailable

27

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

28

SPACER (L:19.85) | MODEL L/M/N This part replaces 11611-36A30.

11611-14D00

Unavailable

28

SPACER (L:19.85) | MODEL P/R/S/T

11611-14D00

Unavailable
