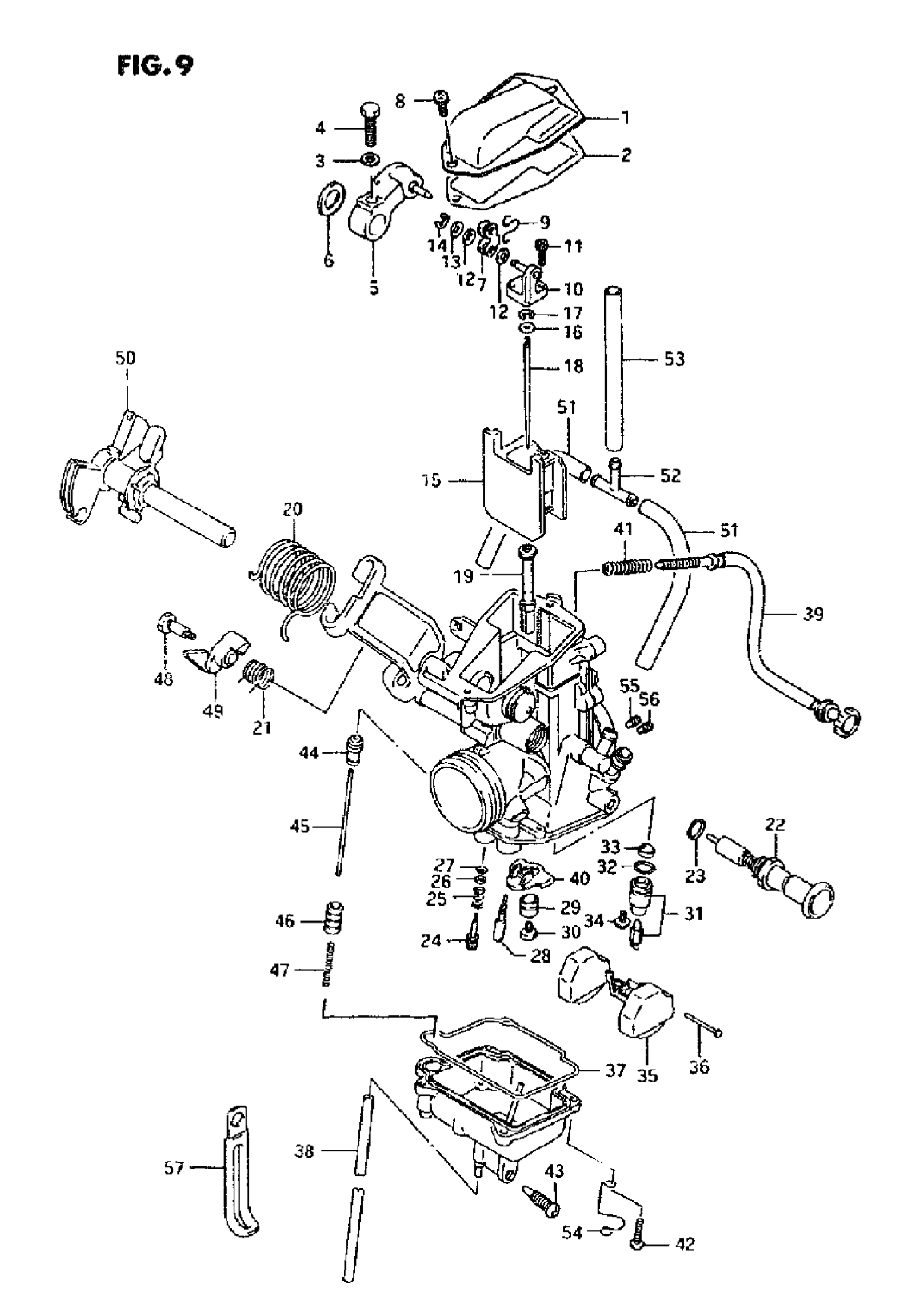

Suzuki DR350 (1995) CARBURETOR (MODEL L/M/N/P) Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL L/M This part replaces 13200-14D01.

13200-14D03

Unavailable

1

CARBURETOR ASSY | MODEL N/P This part replaces 13200-14D02.

13200-14D03

Unavailable

1

CAP, TOP

13261-27A00

Unavailable

2

GASKET

13266-27A00

$6.55

3

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.84

4

BOLT This part replaces 13613-43010.

01500-0516B

$2.15

5

LEVER SET, THROTTLE This part replaces 13541-14A00.

13541-13E00

Unavailable

6

WASHER This part replaces 13574-38200.

13575-38200

Unavailable

7

PLATE

13447-14A00

Unavailable

8

SCREW This part replaces 02112-34108.

02112-3410A

$2.20

9

SPRING

13446-14A00

Unavailable

10

CONNECTOR

13398-27A02

Unavailable

11

SCREW This part replaces 13566-14A00.

02112-0312B

Unavailable

12

WASHER

13445-14A00

$3.30

13

WASHER (4.5X8X0.5) This part replaces 13449-14A00.

09160-04024

Unavailable

14

E RING This part replaces 13298-49000.

13415-38300

$2.08

15

VALVE, PISTON (CA:1.5)

13551-14D00

Unavailable

16

WASHER

13382-47010

$3.56

17

E RING

13394-10010

$5.45

18

NEEDLE, JET (5FP96-3)

13383-14D00

Unavailable

19

JET, NEEDLE (P-8)

09494-00681

Unavailable

20

SPRING

13573-42A20

Unavailable

21

SPRING

13494-14D00

$8.83

22

PLUNGER ASSY

13411-14D00

Unavailable

23

.O RING

13374-46710

$4.48

24

SCREW. PILOT (1 1/8)

13279-47070

$13.36

25

.SPRING (NT:45)

13268-47070

$4.34

26

WASHER

13291-29900

$1.98

27

O-RING This part replaces 13295-29900.

13295-29901

$4.34

28

JET, PILOT (37.5)

09492-35017

Unavailable

29

RING

13331-13A00

$6.17

30

JET, MAIN (132.5) | MODEL L/M

09491-26012

$11.18

30

JET, MAIN (127.5) | MODEL N/P

09491-25011

$11.38

31

VALVE ASSY, NEEDLE This part replaces 13370-14D00.

13370-05530

$71.40

32

O RING This part replaces 13374-44080.

13374-35C00

$5.99

33

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

34

SCREW

13602-43410

$2.92

35

FLOAT ASSY

13250-28A00

$30.87

36

PIN, FLOAT

13254-92311

$2.07

37

0 RING

13251-27A00

$9.03

38

.HOSE (3X7X600) | L:500->150 This part replaces 13684-18900.

09355-30001-600

$8.56

39

ADJUSTER

13267-14D00

Unavailable

40

RING This part replaces 13331-14D00.

13331-13E00

$5.99

41

SPRING

13268-14D00

Unavailable

42

SCREW

13601-04148

$2.81

43

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

44

CAP

13499-44500

$12.57

45

ROD

13487-14D00

Unavailable

46

PLUNGER

13493-27A00

$8.95

47

SPRING

13271-09400

$4.37

48

BOLT

13613-14A00

$8.83

49

LEVER

13490-14A00

$8.77

50

SHAFT ASSY

13553-14D00

Unavailable

51

HOSE,5X10X600 | L:175->100 This part replaces 13683-42A20.

44421-13ER0

$10.06

51

HOSE,5X10X600 | L:225->100 This part replaces 13684-38A20.

44421-13ER0

$10.06

52

.JOINT,3 WAY

09367-06002

$2.50

53

HOSE,5X10X600 | L:175->160 This part replaces 13683-42A20.

44421-13ER0

$10.06

53

HOSE,5X10X600 | L:225->160 This part replaces 13684-38A20.

44421-13ER0

$10.06

54

CLIP This part replaces 13692-14D00.

13692-19C00

Unavailable

55

JET, MAIN AIR (0.9) | MODEL L/M

09493-18001

Unavailable

55

JET, MAIN AIR (0.7) | MODEL N/P

09493-70009

$16.87

56

JET, PILOT AIR (1.0) | MODEL L/M

09493-20007

$14.20

56

JET, PILOT AIR (1.1) | MODEL N/P

09493-22005

Unavailable

57

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
