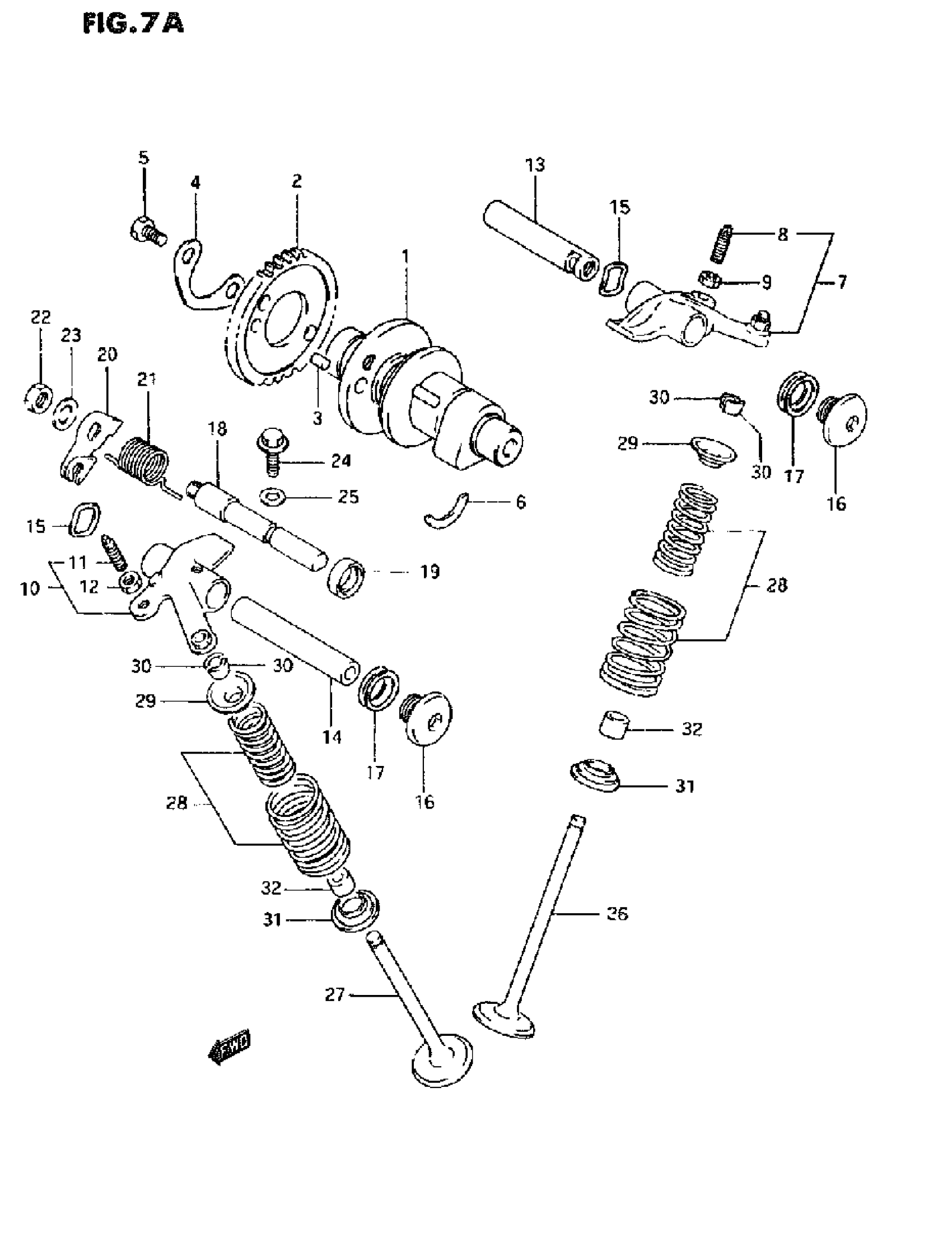

Suzuki DR350 (1995) CAM SHAFT - VALVE (MODEL R/S/T) Diagram

#

Description
Price

1

SHAFT,CAM This part replaces 12710-14D50.

12710-14D80

$449.69

2

SPROCKET (NT:34)

12741-14D50

$49.22

3

PIN

09261-05005

$1.49

4

WASHER,SPROCKET

12747-44B00

$2.72

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER INTAKE This part replaces 12840-14D50.

12840-15G00

$90.28

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST

12850-14D50

$98.00

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$30.93

14

SHAFT, ROCKER ARM EX

12871-14D50

$28.27

15

WASHER

09164-12018

$1.49

16

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

17

GASKET

09168-14002

$2.26

18

SHAFT, DECOMPRESSION

12941-14D02

Unavailable

19

OIL SEAL

09282-10014

$6.70

20

LEVER,DECOMP SH This part replaces 12942-14D00.

12942-14D0V

$5.47

21

NO DESCRIPTION AVAILABLE This part replaces 09448-18028.

09448-18028-XC0

Unavailable

22

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

22

NUT | MODEL S/T This part replaces 08316-10083.

08316-1008B

$2.66

23

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

24

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

25

GASKET

09168-06026

$3.10

26

VALVE,INTAKE This part replaces 12911-14D01.

12911-14D10

$38.13

27

VALVE,EXHAUST

12912-14D01

$60.40

28

SPRING SET, VALVE

12920-06B00

$13.81

29

RETAINER, SPRING

12931-27A01

$8.42

30

COTTER, VALVE

12932-27A00

$2.26

31

SEAT,VALVE SPRING

12933-81400

$5.17

32

OIL SEAL

09289-05011

$6.32
