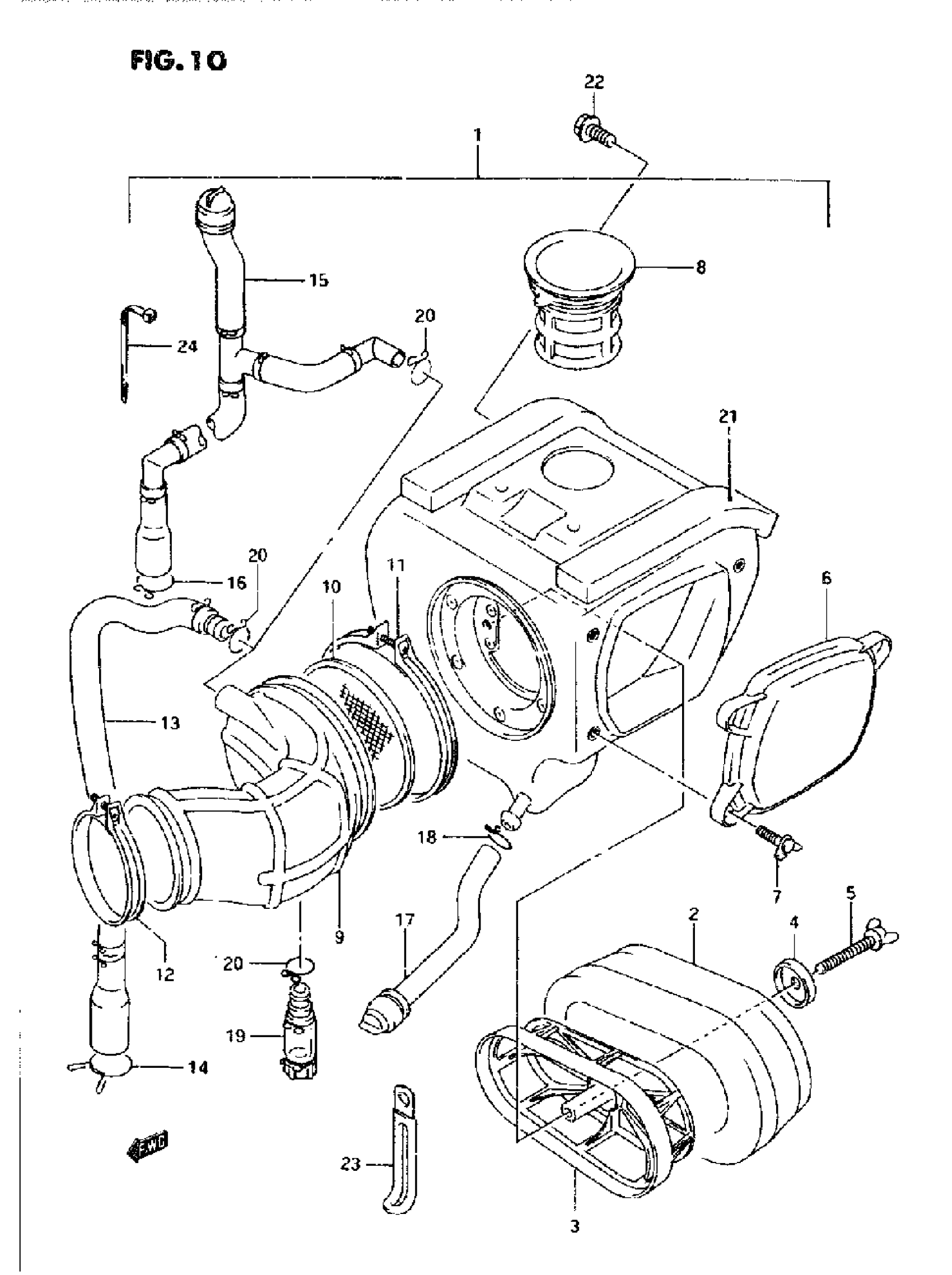

Suzuki DR350 (1995) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL L This part replaces 13700-14D01.

13700-14D05

Unavailable

1

CLEANER ASSY, AIR | MODEL M/N This part replaces 13700-14D04.

13700-14D05

Unavailable

1

CLEANER ASSY, AIR | MODEL P

13700-14D05

Unavailable

1

CLEANER ASSY, AIR | MODEL R/S/T

13700-14D50

Unavailable

2

FILTER

13780-14D02

$45.60

3

HOLDER, FILTER

13791-14D00

$21.09

4

WASHER

13792-13A01

$4.34

5

BOLT. WING

13831-02B00

$5.80

6

CAP, AIR CLEANER

13740-14D00

$24.75

7

BOLT, WING | MODEL L This part replaces 13837-14D00.

13837-14D01

Unavailable

7

BOLT, WING | MODEL M/N/P

13837-14D01

Unavailable

7

BOLT, WING | MODEL R/S/T

02142-05207

$1.49

8

TUBE,INLET This part replaces 13891-14D02.

13891-14D03

Unavailable

9

TUBE, OUTLET | MODEL L This part replaces 13881-14D02.

13881-14D03

Unavailable

9

TUBE, OUTLET | MODEL M/N/P/R/S/T

13881-14D03

Unavailable

10

TRAP, FRAME

13810-14D02

$11.63

11

.CLAMP, OUTLET TUBE | MODEL L This part replaces 13826-14D00.

13826-14D01

$9.32

11

.CLAMP, OUTLET TUBE | MODEL M/N/P/R/S/T

13826-14D01

$9.32

12

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

13

TUBE, BREATHER | MODEL L

13850-14D00

Unavailable

14

CLIP | MODEL L

13824-14D00

Unavailable

15

TUBE, BREATHER | MODEL M/N This part replaces 13850-14D21.

13850-14D22

Unavailable

15

TUBE, BREATHER | MODEL P

13850-14D22

Unavailable

15

-TUBE, BREATHER | MODEL R This part replaces 13850-14D31.

13850-14D50

Unavailable

15

-TUBE, BREATHER | MODEL S/T

13850-14D50

Unavailable

16

CLIP | MODEL L/M/N/P

13824-14D00

Unavailable

16

CLIP | MODEL R/S/T

09401-14301

$2.35

17

TUBE, DRAIN, A | MODEL L This part replaces 13870-14D00.

13870-14D20

Unavailable

17

TUBE, DRAIN A | MODEL M/N/P/R/S/T

13870-14D20

Unavailable

18

CLIP

09401-14301

$2.35

19

TUBE, DRAIN, B | MODEL L/M/N/P/R

13872-14D00

$19.15

19

TUBE,DRAIN | MODEL S/T This part replaces 13870-11458.

13870-11459

$15.51

20

CLIP

09401-14301

$2.35

21

CUSHION

13736-14D00

Unavailable

22

BOLT | MODEL L/M/N/P This part replaces 01517-06128.

01550-06127

$2.30

22

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97

23

CLAMP | MODEL L/M/N/P/R/S This part replaces 09404-08404.

09404-08420

$3.16

23

CLAMP (L:80) | MODEL T This part replaces 09404-08419.

09404-08422

$2.65

24

CLAMP, BREATHER TUBE | MODEL M/N/P/R/S

09407-18402

$2.19

24

CLAMP | MODEL T This part replaces 09407-18403.

09407-18402

$2.19
