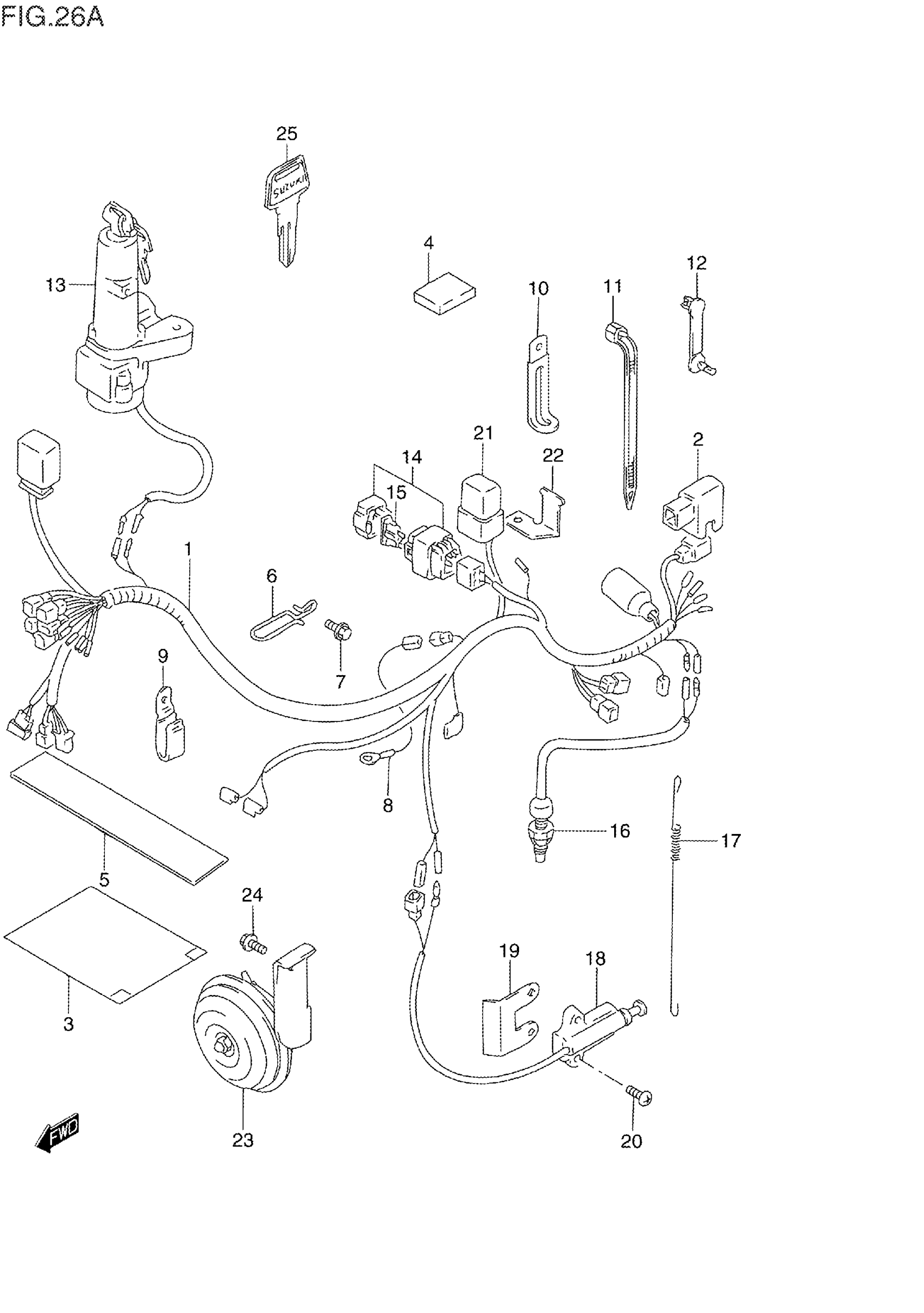

Suzuki DR250SES (1995) WIRING HARNESS (MODEL P/R/S) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-15D50

Unavailable

2

CAP, BATTERY PLUS

33624-15D00

Unavailable

3

COVER WIRING HARNESS | MODEL P This part replaces 36618-15D01.

36618-15D21

$21.28

3

COVER WIRING HARNESS | MODEL R This part replaces 36618-15D02.

36618-15D21

$21.28

3

COVER WIRING HARNESS | MODEL S This part replaces 36618-15D20.

36618-15D21

$21.28

4

CUSHION This part replaces 63149-01C00.

63191-25C00

$2.88

5

CUSHION

36920-14D00

$8.77

6

GUIDE, WIRE HARNESS

36619-15D11

Unavailable

7

BOLT | MODEL P This part replaces 01517-06105.

01550-0610A

$1.97

7

BOLT | MODEL R/S This part replaces 01550-06103.

01550-0610A

$1.97

8

LEAD WIRE, IGNITION | MODEL P/R This part replaces 36851-14D00.

36851-05D00

$6.57

8

LEAD WIRE, IGNITION | MODEL S

36851-05D00

$6.57

9

CLAMP This part replaces 09403-10307.

09403-10328

$2.05

9

CLAMP

09403-17303

Unavailable

10

CLAMP | MODEL P/R This part replaces 09404-06403.

09404-06039

$1.73

10

CLAMP(L:80) | MODEL P/R This part replaces 09404-06405.

09404-06036

$1.76

10

CLAMP

09404-06429

$1.82

10

CLAMP | MODEL P This part replaces 09404-06424.

09404-06039

$1.73

10

CLAMP(L:80) | MODEL R This part replaces 09404-06426.

09404-06036

$1.76

10

CLAMP | MODEL S This part replaces 09404-06431.

09404-06039

$1.73

10

CLAMP(L:80) | MODEL S This part replaces 09404-06433.

09404-06036

$1.76

10

CLAMP (L:80) | MODEL S This part replaces 09404-08419.

09404-08422

$2.88

11

CLAMP | MODEL P/R

09407-02401

Unavailable

11

CLAMP

09407-10404

$2.71

11

CLAMP (L:125)

09407-14403

$2.24

11

CLAMP (L:125)

09407-14409

Unavailable

11

CLAMP This part replaces 09407-18403.

09407-18402

$2.21

11

CLAMP (L:235)

09407-25401

$4.21

12

CLAMP (L:33) | MODEL S

09407-03401

$2.81

13

LOCK ASSY, STEERING This part replaces 37110-03D00.

37110-03D01

Unavailable

14

BOX ASSY, MAIN FUSE | MODEL P/R This part replaces 36740-09301.

36740-24B01

$31.82

14

FUSE ASSY | MODEL S; Includes Item(s) 15

36740-24B01

$31.82

15

FUSE (20A)

09481-20101

$2.13

16

SWITCH ASSY, STOP

37740-15D00

Unavailable

17

SPRING

09443-06080

$6.00

18

SWITCH ASSY,SID | MODEL P/R This part replaces 37840-48B21.

37840-12X52

$77.83

18

SWITCH ASSY,SID | MODEL S This part replaces 37840-12X50.

37840-12X52

$77.83

19

PROTECTOR

37841-14D00

Unavailable

20

SCREW | MODEL P This part replaces 02142-06205.

02142-0620A

$1.38

20

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

$1.38

21

RELAY, SIDE STAND

38740-24X50

$41.38

22

BRACKET, RELAY

36744-14D01

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 38500-14D01.

38500-14D02

Unavailable

24

BOLT | MODEL P This part replaces 01517-06164.

01550-0616A

$1.97

24

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

25

KEY, BLANK | TYPE C This part replaces 37146-24500.

37146-03A00

$9.32

25

KEY, BLANK | TYPE D This part replaces 37146-24510.

37146-03A10

$13.13
